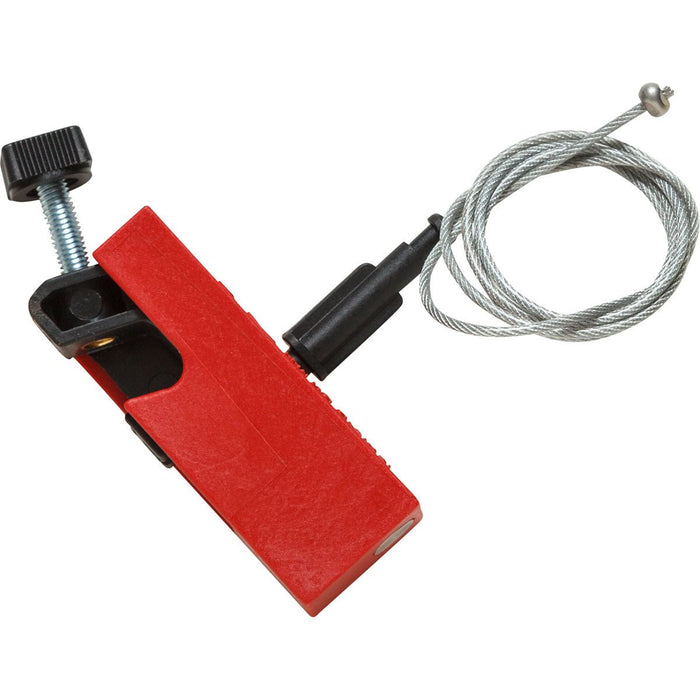

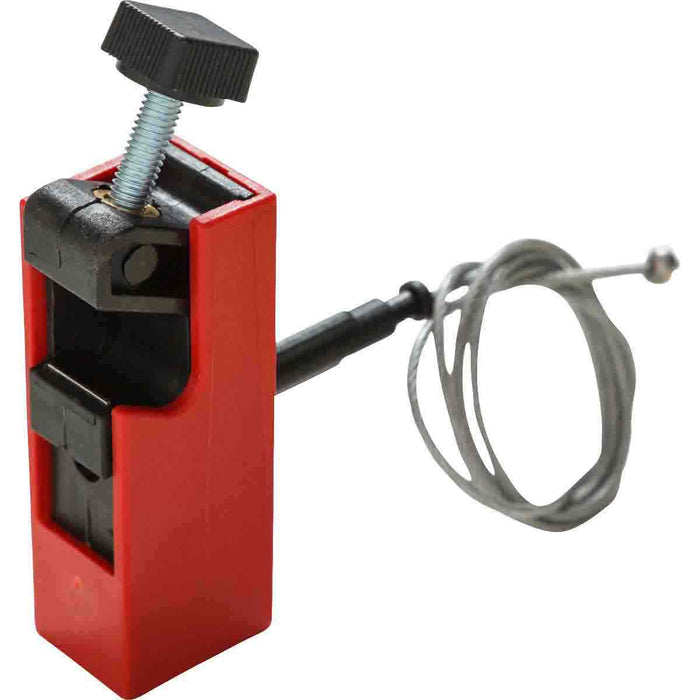

Clamp-On Breaker Lockout with Cable

This breaker lockout is part of the EZ Paneloc™ lock rail system, which allows workers to secure lockout devices by passing a plastic key through an EZ Paneloc™ lock rail.

• EZ Paneloc™ Clamp-On lockouts are for use on breakers that do not have a hole in the switch tongue
• Turn the thumbscrew to clamp lockout device securely onto switch then snap the cover closed
• Padlocks, EZ Paneloc™ lock rails and other EZ Paneloc™ lockout devices sold separately
• EZ Paneloc™ lock rail system allows panel door to be closed when lockouts are in place and fits multiple locks, eliminating the need for group hasps

• Trade Name: EZ Paneloc™
• Dimensions: 0.75 in H x 2.38 in W x 1 in D
• Cable Length: 2 ft
• Handle/Toggle Width: 0.42 in
• Material: Fiberglass Reinforced Polyurethane
• Cable Material: Metal
• Color: Red
• Service Temperature Range: -4 °F - 248 °F
• Application: Lockout Tagout
• Circuit Breaker Lockout Type: Single-pole
• Risk Type: Electrical Risk
• Voltage: 120/277 V

Product Data
