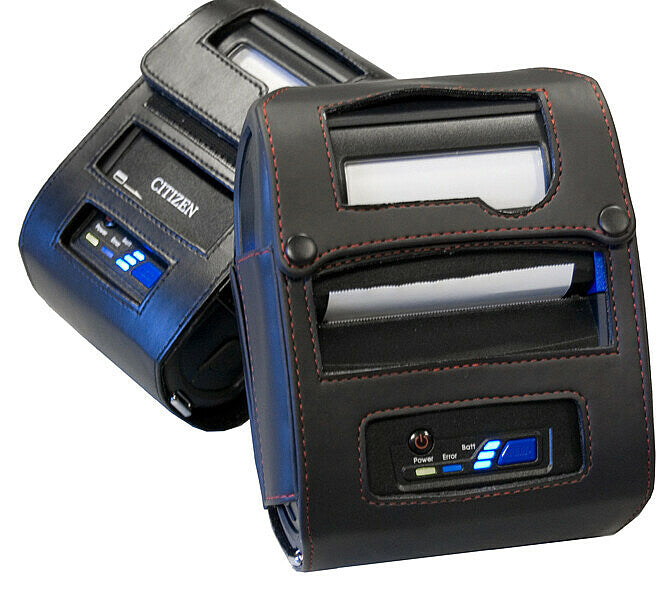

CMP-30IIL Mobile Label Printer.

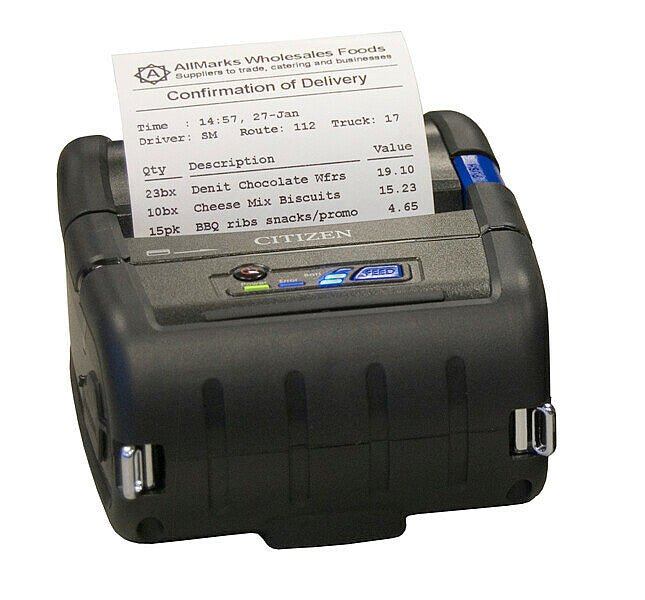

Handles labels and receipts

Our CMP-30 provides mobile printing options for receipts up to 3 inches wide.  The CMP-30 shares the same advanced Bluetooth and WiFi technology and tough construction of the smaller CMP-20 mobile printer.  This ensures quick and easy printing, with drop-in paper loading and paper out indicators, simple feed paths to eliminate the risk of jamming, and an integral tear bar to cut paper to the required length.

• High capacity 3-inch diameter media roll
• Long life Lithium Ion batteries
• Optional magnetic stripe reader and IC-card

Benefits

• Paper width: Paper width 80 mm
• Paper load: Quick and easy media changing - drop-in paper loading
• Printing Speed: High speed printing - up to 100 mm per second
• Mobile-POS ready
• Powerful - High capacity batteries for a full day's operation (status indicated by LED)
• Robust: Robust - exceeds IP42 and survives multiple drops of 1.2 metres
• Integral tear bar to cut labels at the gap

Energy:

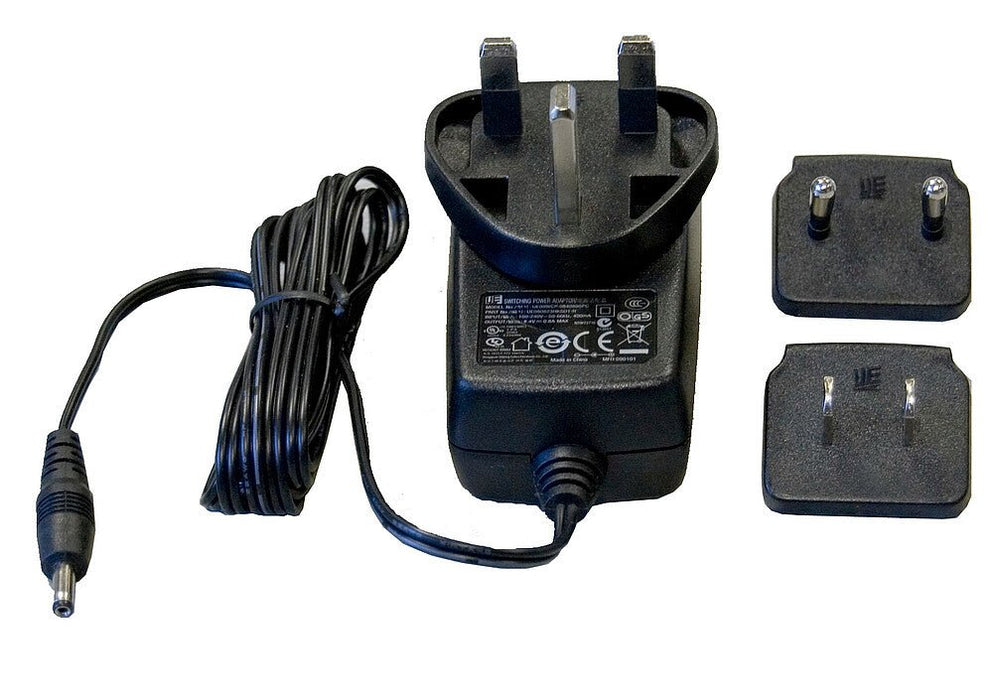

• AC adapter as standard designed to recharge batteries on-board the printer or via an external optional charging station

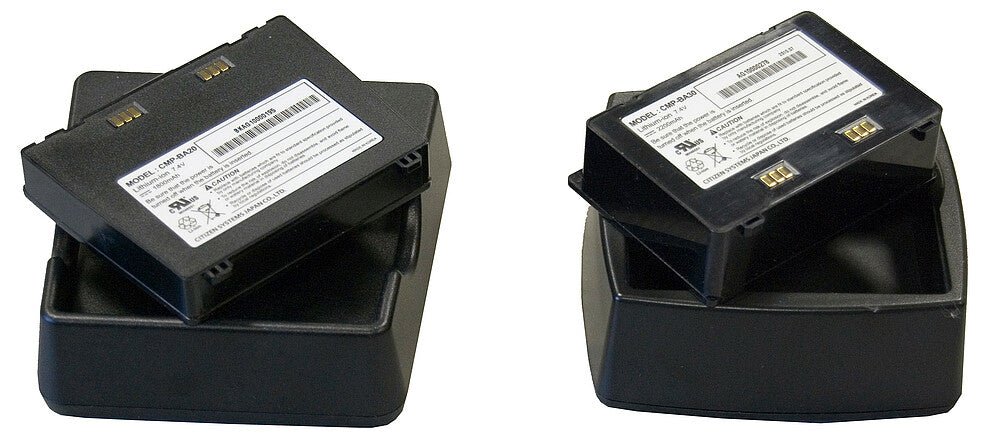

• Lithium Ion battery technology and easy-to-change power packs

Specification

• Resolution: 203 dpi
• Print Speed (Maximum): 4 inches per second (100 mm/s)
• Print Width (Maximum): 72 mm
• Media Type: Thermal receipt paper
• Media Width (Min to Max): 25 - 80 mm
• Roll Size (Max), Core Size: Diameter 2.20 inches (56 mm)
• Media Sensor: Paper end and reflective black mark

Main Interface:

• Dual Interface Serial (RS-232 /mini DIN connector), USB (mini B connector)

Optional Interfaces:

• Bluetooth with Apple™ MFi compatibility
• Bluetooth Class 2
• Compact Wireless LAN
• Bluetooth 4.2

Emulations (Languages)

• CPCL™ compatibility
• ESC/POS™
• Zebra® ZPL2®

Physical Dimensions & Weight

• Size (W x D x H): 120 x 152 x 70 mm
• Weight: 0.6 Kg

Battery & Power

• Battery Type and Capacity: Hard pack, 7.4V 2600mAh
• Input Power: 100V-240V AC, 50/60Hz
• Output Power: 8.4 volts, 1200 mA

Environmental Rating & Durability

• Environmental Rating: Exceeds IP42
• Drop Test: Survives multiple drops of 1.5 metres

Print Sizes

• Receipt Size: 3-inch receipt
