Product Number: 177531
UPC: 888434633625
UOM: Kit
Dimensions
Dimensions: 9.5 in H x 9 in W x 12 in D
Height: 9.5 in
Width: 9 in
Depth: 12 in
Display Size: 3.5 in
Weight: 11.5 lb
Material Characteristics
Colour: Blue, Gray
Product Features
Application: Asset Tracking, Barcode Labeling, Circuit Board Labeling, Component and Equipment Labeling, Data and Telecommunications Labeling, Electrical Labeling, Facility Identification, General Identification, Hazard Communication Identification, Inventory and Inspection Labeling, Laboratory Labeling, Lean and 5S Labeling, Pipe and Valve Marking, Warehouse Marking, Wire and Cable Labeling
Shipped With Battery: Yes
How Is Battery Shipped: Shipped in box, not installed
Built-In Label Wizards: No
Cut Options Available: Cut at the end of print jobs, Cut between labels, Full Cut
Cutter Type: Auto Cutter
Device Connectivity: PC connected
Display Type: Color LCD Touch Screen
Estimated Media Changeover Time: 15 seconds for media roll, 5 seconds for ribbon
Keyboard Type: None
Memory: 512 MB RAM, 195 MB IFFS Flash
Number of Symbols: See Brady Workstation Software
On Screen Indicators: Data Reception, Error Messaging, Ethernet Status, Ribbon and label part number recognition, Ribbon Remaining, Supply Remaining, WiFi
Plug Type: US
Power Supply Voltage: 100 - 240 V @ 50 - 60 Hz
Auto Shut-Off / Power Conserve: Yes
Print Preview Feature?: No
Units: Inches, Millimeter, Points
User Interface Type: PC, Touch Screen
Battery Type: Rechargeable Lithium-ion Battery
Operating System: Windows® 10, Windows® 11, Windows® 7, Windows® 8, Windows® Server 2012, Windows® Server 2012 R2, Windows® Server 2016
Printing Specifications
Automatic Label Set Up: Yes
Barcode Symbologies - 2D: Aztec, Data Matrix, MicroPDF417, PDF417, QR Code
Barcode Symbologies - Linear: Code 128, Code 39, Code 93, EAN/JAN-13, EAN/JAN-8, Interleaved 2 of 5, UPC-A
Calibration Required?: No
Color Printing Capability: Single Color
Font Sizes: 4 - 250 pt
Font Styles: Arial, Courier New, Tahoma, Times New Roman, Trebuchet MS, Verdana
Maximum Labels per Day: 3000
Maximum Label/Tape Width: 4.25 in
Minimum Label Length: 0.25 in
Maximum Print Speed: 4 in/s
Maximum Printed Label Length: 5 ft
Print Resolution: 300 dpi
Print Technology: Thermal Transfer
Progamming Language: Brady custom software solution, Brady Script Emulator for ZPL (Accessory required)
Media Sensor Adjustment: Automatic Adjustment
Compatibility
Compatible Media: B30-, B30C-, B30EP-, B33-, B33C-, B33D-, B33FP-, B33FT-, B33R-
Label Material Types: FreezerBondz™ Polyester, Heat-shrink Polyolefin, High Temperature Heat-shrink Polyvinylidene Fluoride Sleeve, Magnetic Polyester, Metal-detectable Polyester, Metallic, Non-metal Polyester, Metallized Polyester, Metallized Polyester with Polyester Overlaminate, Nylon Cloth, Paper, Phosphorescent Polyester, Polyester, Polyester with Polyester Overlaminate, Polyimide, Polyolefin, Polypropylene, Polyvinylfluoride, Reflective Tape, Self-laminating Polyester, Self-laminating Vinyl, StainerBondz™ Polyester, Static Dissipative Polyester, Tamper-evident Metallized Polyester, Vinyl, Vinyl Cloth
Materials Supported: Continuous, Custom, Die-cut
Custom Labels Available: Yes
Maximum Print Width: 4.015 in
Software Compatibility: Brady Workstation, Windows based driver for 3rd party software use
Languages Available: Bulgarian, Chinese (Simplified), Chinese (Traditional), Croatian, Czech, Danish, Dutch, English (US), Estonian, Finnish, French (Canada), French (France), German, Hungarian, Italian, Korean, Norwegian, Polish, Portuguese (Brazil), Portuguese (Portugal), Romanian, Russian, Spanish (Mexico), Spanish (Spain), Swedish, Thai, Turkish
What's Included
Software Package: Product & Wire ID

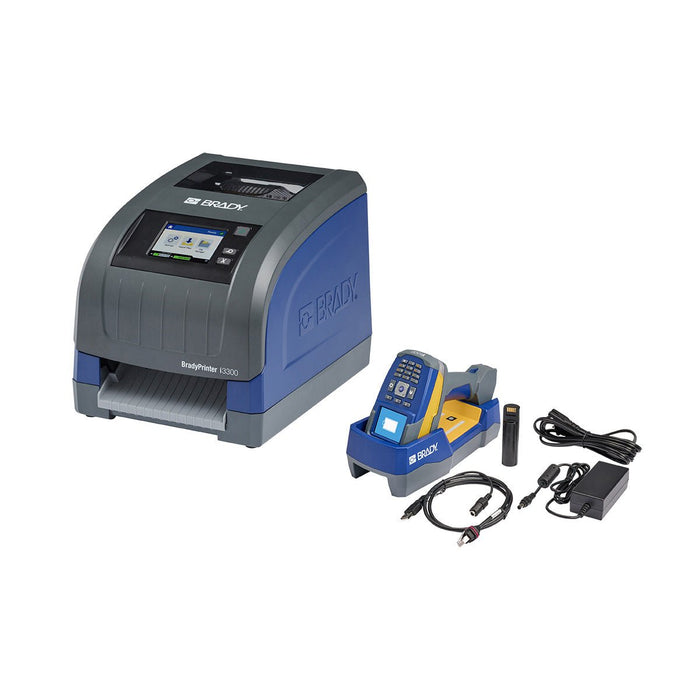

Includes: (1) BradyPrinter i3300 Printer with Wi-Fi (150640), (1) Cleaning Kit (PCK-6), (1) Cutter Cleaning Tool, (1) Power Cable (177242), (1) Printer Power Cable, (1) Product CD with User Manual, (1) Quick Start Guide, (1) USB 1M Cable (177237), (1) USB Cable, (1) V1200 Battery (177234), (1) V1300 Cradle (177235), (1) V4500 AC Adapter (177241), (1) V4500 Barcode Scanner (177233), (1) Brady Workstation Design & Print Essentials Insert - Product and Wire ID Suite - Product and Wire ID Suite
Model: i3300, V4500
Warranty: 5 Years
