Product Number: 177545
UPC: 888434633762
UOM: Kit
Trade Name: BradyPrinter S3100
Brand Name: Brady®
Dimensions
Dimensions: 9.5 in H x 12 in W x 10.25 in D
Height: 9.5 in
Width: 12 in
Depth: 10.25 in
Display Size: 6.12 x 3.62 in
Weight: 13.6 lb
Material Characteristics
Colour: Blue, Gray
Product Features
Application: Asset Tracking, Cold temperature Labeling, Component and Equipment Labeling, Electrical Labeling, Exit and Egress Marking, Facility Identification, Floor Marking, General Identification, Hazard Communication Identification, Lean and 5S Labeling, Lockout Tagout, Pipe and Valve Marking, Safety Identification, Temperature Indicating Labeling
Shipped With Battery: Yes
How Is Battery Shipped: Shipped in box, not installed
Built-In Label Wizards: Arc Flash, Custom Label, General Templates, GHS/CLP, Pipe Marker, PreMade Labels, Right-to-Know, Tags, WHMIS
Connectivity Options: Bluetooth® 5 Low Energy (class II), Ethernet, USB, Wi-Fi
Cut Options Available: Cut at the end of print jobs, Cut between labels
Cutter Type: Auto Cutter
Device Connectivity: PC connected & Stand-alone
Display Type: Color LCD Touch Screen
Estimated Media Changeover Time: 20 seconds
Keyboard Type: QWERTY
Media Sensor Type: Notch
Memory: 256 MB
Number of Symbols: 247
On Screen Indicators: Battery Life, Bluetooth Status, Data Reception, Error Messaging, Ethernet Status, Ribbon and label part number recognition, Ribbon Remaining, Supply Remaining, WiFi
Plug Type: US
Power Supply Voltage: 110 - 240 V
Auto Shut-Off / Power Conserve: Yes
Print Preview Feature?: Yes
Special Characters Quantity: 95
Units: Inches, Millimeter, Points
User Interface Type: Keyboard, Touch Screen
Battery Type: Rechargeable Lithium-ion Battery
Printing Specifications
Automatic Label Set Up: Yes
Barcode Symbologies - 2D: More through Brady WorkStation, PDF417, QR Code
Barcode Symbologies - Linear: Code 128, Code 39, EAN/JAN-13, Interleaved 2 of 5, More through Brady WorkStation, UPC-A
Calibration Required?: No
Color Printing Capability: Single Color
Font Sizes: 4 - 250 pt
Font Styles: Arial, Arial 65, Courier New, Tahoma, Times New Roman
Maximum Labels per Day: 600
Maximum Label/Tape Width: 4.25 in
Maximum Print Speed: 3 in/s
Minimum Label Length: 0.5 in
Maximum Printed Label Length: 5 ft
Print Resolution: 300 dpi
Print Technology: Thermal Transfer
Media Sensor Adjustment: Not Required
Compatibility
Compatible Media: B30-, B30C-, B30EP-
Label Material Types: Magnetic Polyester, Metal-detectable Polyester, Metallic, Non-metal Polyester, Metallized Polyester, Paper, Phosphorescent Polyester, Polyester, Polyester with Polyester Overlaminate, Polyimide, Polyvinylfluoride, Reflective Tape, Tamper-evident Metallized Polyester, Vinyl, Vinyl Cloth
Materials Supported: Continuous, Die-cut
Custom Labels Available: No
Maximum Print Width: 4.015 in
Software Compatibility: Brady Workstation, Windows based driver for 3rd party software use
Languages Available: Bulgarian, Chinese (Simplified), Chinese (Traditional), Croatian, Czech, Danish, Dutch, English (US), Estonian, Finnish, French (France), German, Hungarian, Italian, Korean, Norwegian, Polish, Portuguese (Portugal), Romanian, Russian, Slovak, Slovenian, Spanish (Spain), Swedish, Turkish
What's Included
Software Package: Safety & Facility ID

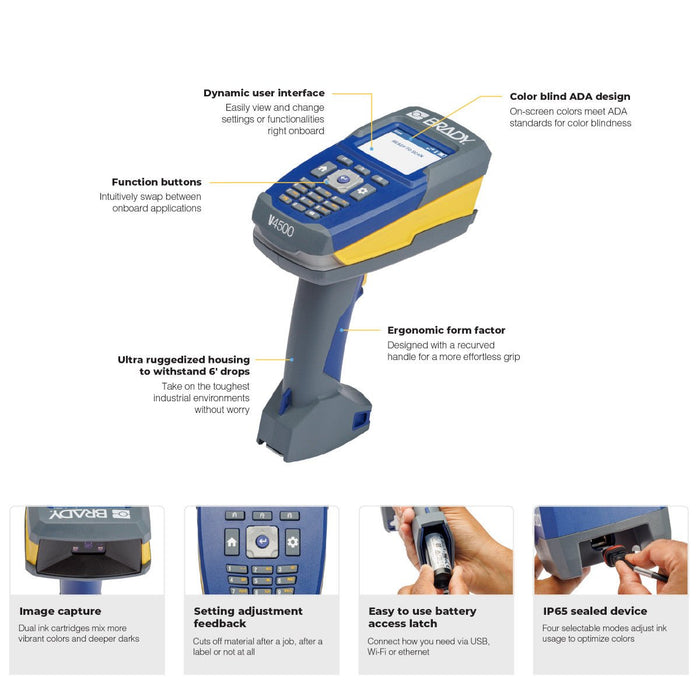

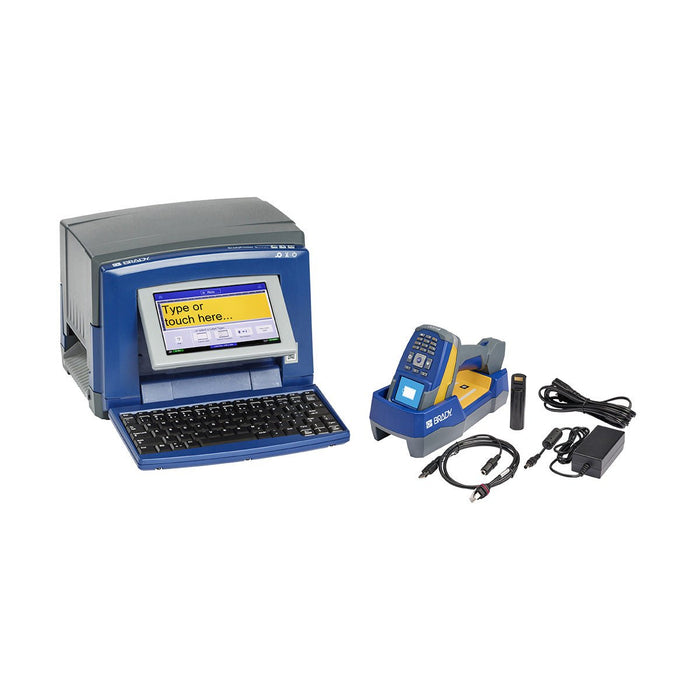

Includes: (1) Brady Workstation Design & Print Essentials Insert - Safety and Facility ID Suite, (1) BradyPrinter S3100-W Printer with Wi-Fi (S3100-W), (1) Cleaning Kit (PCK-6), (1) Cutter Cleaning Tool, (1) Documentation Holder, (1) Drivers CD, (1) Network Card, (1) Power Cable (177242), (1) Printer Power Cable, (1) Quick Start Guide, (1) Stylus, (1) USB 1M Cable (177237), (1) USB Cable, (1) V1200 Battery (177234), (1) V1300 Cradle (177235), (1) V4500 AC Adapter (177241), (1) V4500 Barcode Scanner (177233)
Model: S3100, V4500
Warranty: 5 Years
