Product Number: 151440
UPC: 754473638320
UOM: Each
Dimensions
Dimensions: 9.5 in H x 9 in W x 12 in D
Height: 9.5 in
Width: 9 in
Depth: 12 in
Display Size: 3.5 in
Weight: 11.5 lb
Material Characteristics
Colour: Blue, Gray
Product Features
Application: Hazard Communication Identification, Lockout Tagout
Built-In Label Wizards: No
Connectivity Options: Ethernet, USB, USB 2.0
Cut Options Available: Cut at the end of print jobs, Cut between labels, Full Cut
Cutter Type: Auto Cutter
Device Connectivity: PC connected
Display Type: Color LCD Touch Screen
Estimated Media Changeover Time: 15 seconds for media roll, 5 seconds for ribbon
Keyboard Type: None
Memory: 512 MB RAM, 195 MB IFFS Flash
Number of Symbols: See Brady Workstation Software
On Screen Indicators: Data Reception, Error Messaging, Ethernet Status, Ribbon and label part number recognition, Ribbon Remaining, Supply Remaining, WiFi
Power Supply Voltage: 100 - 240 V @ 50 - 60 Hz
Auto Shut-Off / Power Conserve: Yes
Print Preview Feature?: No
Units: Inches, Millimeter, Points
User Interface Type: PC, Touch Screen
Operating System: Windows® 10, Windows® 11, Windows® 7, Windows® 8, Windows® Server 2012, Windows® Server 2012 R2, Windows® Server 2016
Printing Specifications
Automatic Label Set Up: Yes
Barcode Symbologies - 2D: Aztec, Data Matrix, MicroPDF417, PDF417, QR Code
Barcode Symbologies - Linear: Code 128, Code 39, Code 93, EAN/JAN-13, EAN/JAN-8, Interleaved 2 of 5, UPC-A
Calibration Required?: No
Color Printing Capability: Single Color
Font Sizes: 4 - 250 pt
Font Styles: Arial, Courier New, Tahoma, Times New Roman, Trebuchet MS, Verdana
Maximum Labels per Day: 3000
Maximum Label/Tape Width: 4.25 in
Minimum Label Length: 0.25 in
Maximum Print Speed: 4 in/s
Maximum Printed Label Length: 5 ft
Print Resolution: 300 dpi
Print Technology: Thermal Transfer
Media Sensor Adjustment: Automatic Adjustment
Compatibility
Compatible Media: B30-, B30C-, B30EP-, B33-, B33C-, B33D-, B33FP-, B33FT-, B33R-
Label Material Types: FreezerBondz™ Polyester, Heat-shrink Polyolefin, High Temperature Heat-shrink Polyvinylidene Fluoride Sleeve, Magnetic Polyester, Metal-detectable Polyester, Metallic, Non-metal Polyester, Metallized Polyester, Metallized Polyester with Polyester Overlaminate, Nylon Cloth, Paper, Phosphorescent Polyester, Polyester, Polyester with Polyester Overlaminate, Polyimide, Polyolefin, Polypropylene, Polyvinylfluoride, Reflective Tape, Self-laminating Polyester, Self-laminating Vinyl, StainerBondz™ Polyester, Static Dissipative Polyester, Tamper-evident Metallized Polyester, Vinyl, Vinyl Cloth
Materials Supported: Continuous, Custom, Die-cut
Custom Labels Available: Yes
Maximum Print Width: 4.015 in
Software Compatibility: Brady Workstation, Windows based driver for 3rd party software use
Languages Available: Chinese (Simplified), Chinese (Traditional), Czech, Dutch, English (UK), English (US), French (Canada), French (France), German, Hindi, Italian, Japanese, Portuguese (Brazil), Portuguese (Portugal), Russian, Spanish (Mexico), Spanish (Spain), Vietnamese
What's Included

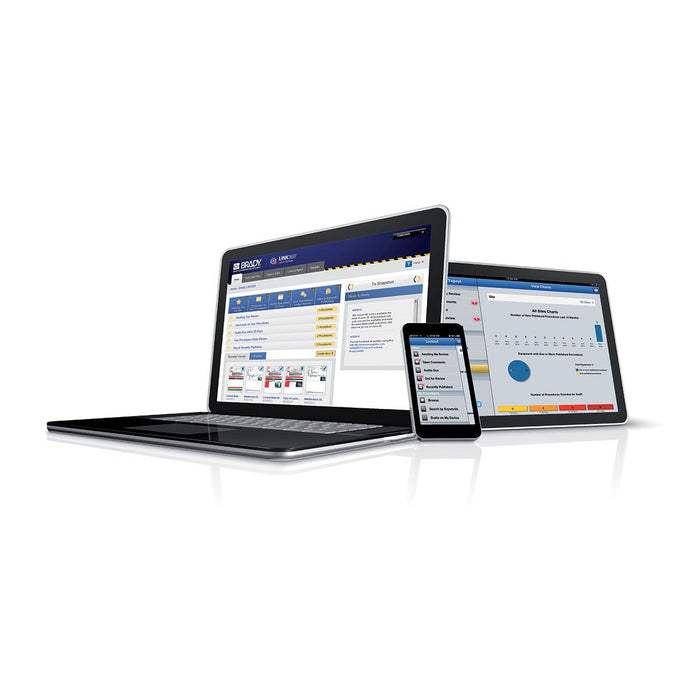

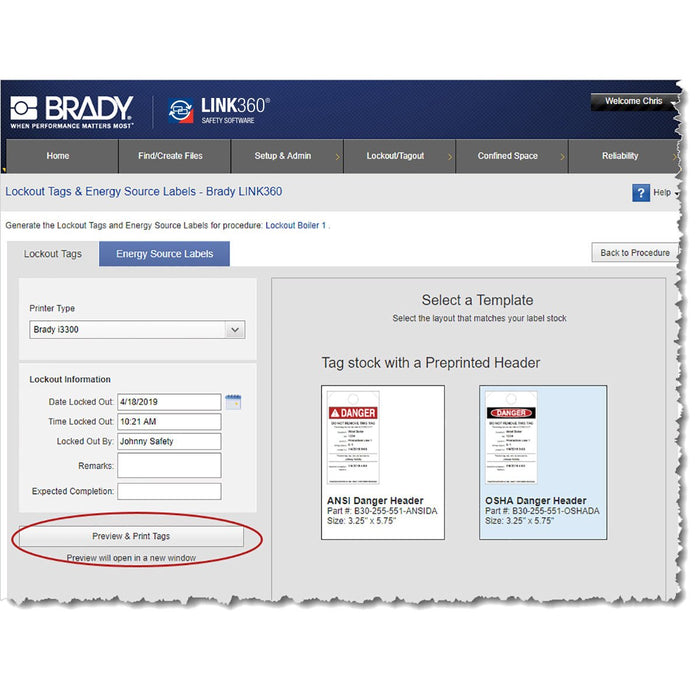

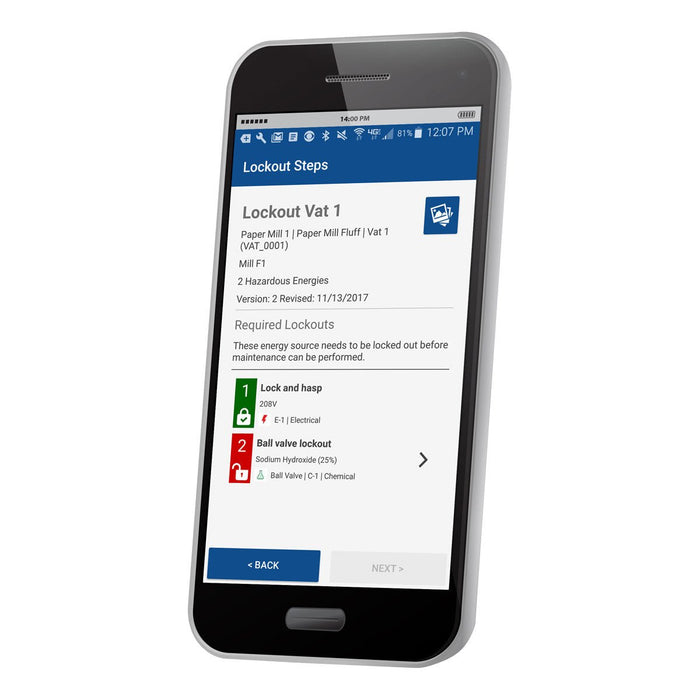

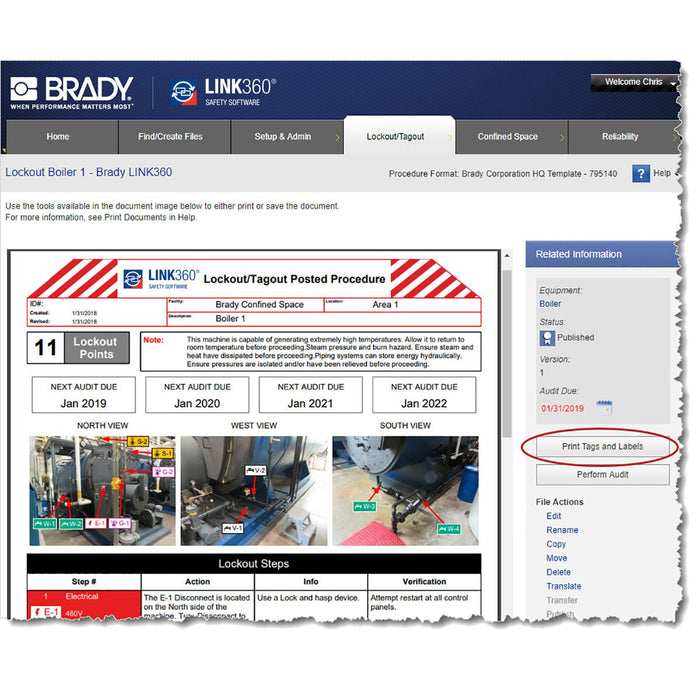

Software Package: LINK360® Starter Bundle

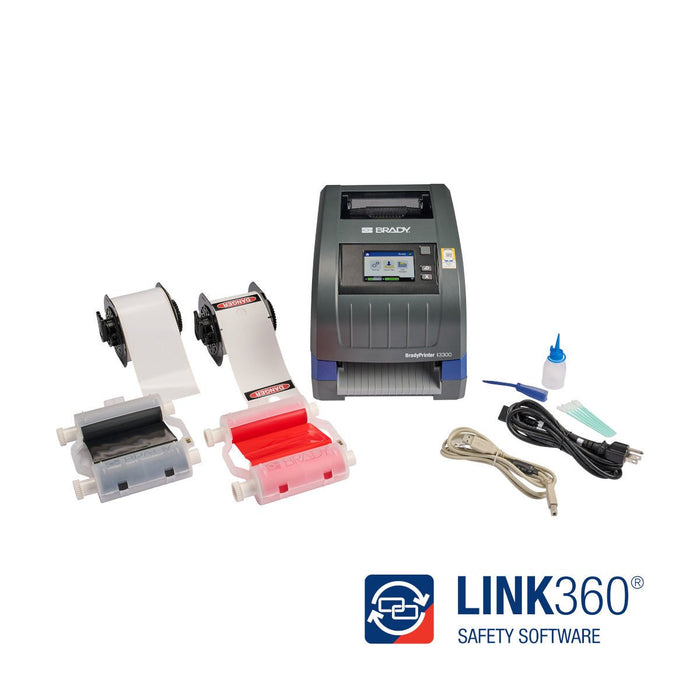

Includes: (1) B30 Series Continuous Indoor Outdoor Vinyl Labels (B30C-4000-595-WT), (1) B30 Series Heavy Duty Polyester Tag with Headers (B30-255-551-OSHADA), (1) B30 Series R10000 Printer Ribbon Black (B30-R10000), (1) B30 Series R10000 Printer Ribbon Red (B30-R10000-RD), (1) BradyPrinter i3300 Industrial Label Printer – works with software to generate labels for wire, panel and facility ID (149552), (1) LINK360® Starter Bundle – Cloud-based software that easily stores, manages and tracks documents (LINK360START), (10) Blank Valve Tag White (87696)
Model: i3300
Warranty: 5 Years
