Product Number: 176870
UPC: 888434627440
UOM: Kit
Dimensions
Dimensions: 11 in H x 19 in W x 14.25 in D
Height: 11 in
Width: 19 in
Depth: 14.25 in
Display Size: 6.11 x 3.42 in
Weight: 36.9 lb
Material Characteristics
Colour: Blue, Gray
Product Features
Application: Asset Tracking, Barcode Labeling, Cold temperature Labeling, Component and Equipment Labeling, Electrical Labeling, Exit and Egress Marking, Facility Identification, Food and Beverage Process Labeling, General Identification, Hazard Communication Identification, Healthcare and Hospital Labeling, Inventory and Inspection Labeling, Lean and 5S Labeling, Pipe and Valve Marking, Safety Identification, Security Identification, Temperature Indicating Labeling, Warehouse Marking
Shipped With Battery: No
Built-In Label Wizards: Arc Flash, Circle Gauge, Custom Label, General Templates, GHS/CLP, Gradient Scale, Pipe Marker, PreMade Labels, Right-to-Know, Tags, WHMIS
Cut Options Available: Cut at the end of print jobs, Cut between labels
Cutter Type: XY Cutter and Auto Cutter
Device Connectivity: Mobile device connected, PC connected, Stand-alone
Display Type: Color LCD Touch Screen
Estimated Media Changeover Time: 20 seconds
Keyboard Type: QWERTZ
Media Sensor Type: Notch
Memory: 512 MB
Number of Symbols: 664
On Screen Indicators: Bluetooth Status, Data Reception, Error Messaging, Ethernet Status, Ribbon and label part number recognition, Supply Remaining, WiFi
Plug Type: US
Power Supply Voltage: 110 - 240 V
Auto Shut-Off / Power Conserve: Yes
Print Preview Feature?: Yes
Special Characters Quantity: 95
Units: Inches, Millimeter, Points
User Interface Type: Keyboard, Mobile device, PC, Touch Screen
Printing Specifications
Automatic Label Set Up: Yes
Barcode Symbologies - 2D: More through Brady WorkStation, PDF417, QR Code
Barcode Symbologies - Linear: Code 128, Code 39, EAN/JAN-13, Interleaved 2 of 5, More through Brady WorkStation, UPC-A
Calibration Required?: No
Color Printing Capability: Multi-Color
Font Sizes: 4 - 600 pt
Font Styles: Arial, Arial 65, Courier New, See Brady Workstation, Tahoma, Times New Roman, Trebuchet MS, Verdana
Maximum Labels per Day: 600
Maximum Label/Tape Width: 4 in
Minimum Label Length: 0.5 in
Maximum Print Speed: 5 in/s
Maximum Printed Label Length: 8.3 ft
Print Resolution: 300 dpi
Print Technology: Thermal Transfer
Media Sensor Adjustment: Automatic Adjustment
Compatibility
Compatible Media: B30-, B30C-, B30EP-
Label Material Types: Heavy Duty Polyester, Magnetic Polyester, Metal-detectable Polyester, Metallic, Non-metal Polyester, Metallized Polyester, Paper, Phosphorescent Polyester, Polyester, Polyester with Polyester Overlaminate, Polyimide, Polyvinylfluoride, Reflective Tape, Tamper-evident Metallized Polyester, Transfer Tape, Vinyl, Vinyl Cloth
Materials Supported: Continuous, Die-cut
Maximum Print Width: 4 in
Software Compatibility: Brady Workstation, Express Labels Mobile App, Software development kit, Windows based driver for 3rd party software use
Languages Available: Bahasa (Indonesian), Bahasa Malay, Bulgarian, Chinese (Traditional and Simplified), Croatian, Czech, Danish, Dutch, English (US), Estonian, Finnish, French (France), German, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Portugal), Romanian, Russian, Slovak, Slovenian, Spanish (Spain), Swedish, Thai, Turkish, Vietnamese
What's Included
Software Package: Safety & Facility ID

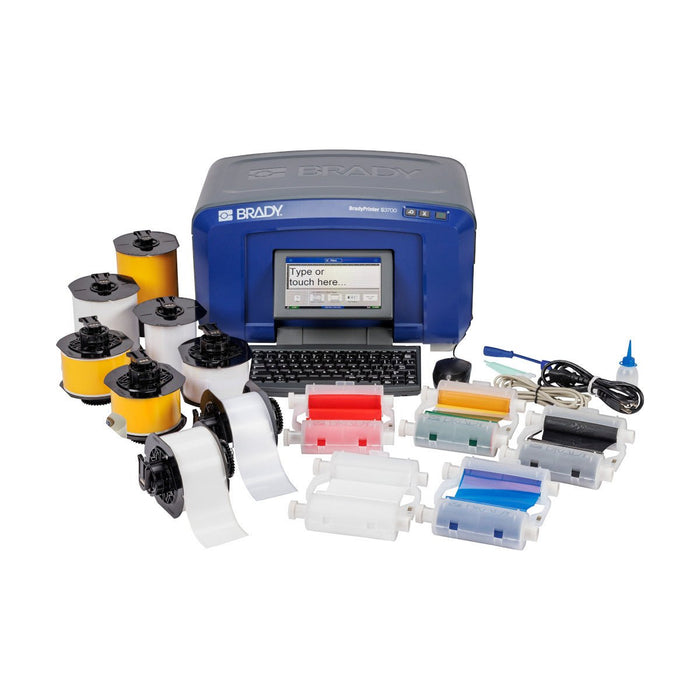

Includes: (1) 2.25" Continous Yellow Polyester Label (B30C-2250-483YL-KT), (1) 2.25" Continuous White Vinyl Label (B30C-2250-595-WT), (1) 2.25" Continuous Yellow Vinyl Label (B30C-2250-595-YL), (1) 2.5" Coninuous Magnetic Polyester Label (B30C-2500-509-WT), (1) 3.85x2.25" White Vinyl Label (B30-219-595-BLNKWT), (1) 4" Continuous Yellow Label (B30C-4000-595-YL), (1) 4" White Vinyl Continuous Label (B30C-4000-595-WT), (1) 4.25" Continuous Magnetic Polyester Label (B30C-4250-509-WT), (1) 4-Color Ribbon Cartridge (B30-R10000-KRYG-8), (1) Black Ribbon Cartridge (B30-R10000), (1) Blue Ribbon Cartridge (B30-R10000-BL), (1) Brady Workstation Design & Print Essentials Insert - Safety and Facility ID Suite, (1) Cleaning Kit (PCK-6), (1) Mouse, (1) Power Cord, (1) Quick Start Guide, (1) Red Ribbon Cartridge (B30-R10000-RD), (1) S3700 Safety and Facility Printer (S3700-WB), (1) USB Flash Drive, (1) White Ribbon Cartridge (B30-R10000-WT)
Model: S3700
Warranty: 5 Years
