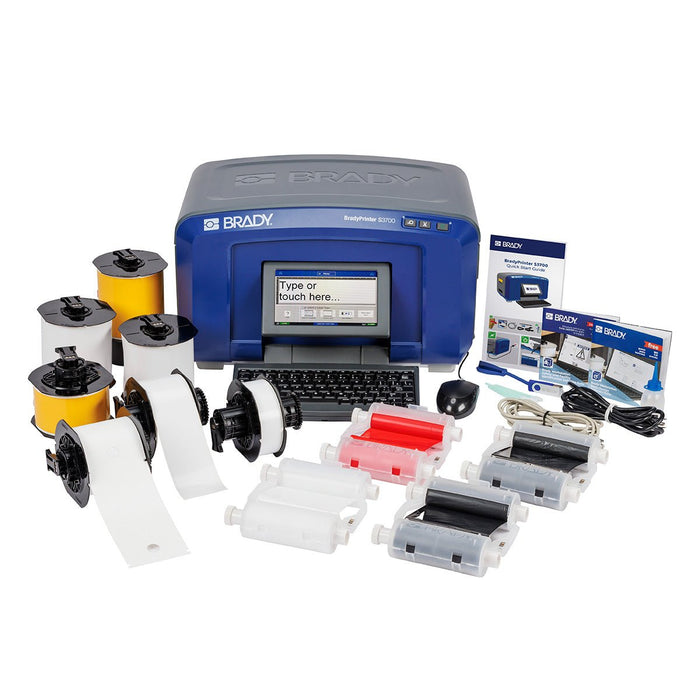

S3700 Printer and Label Starter Kit with Software

• Product Number: 176869
• UOM: Kit
• Trade Name: BradyPrinter S3700

Dimensions

• Height: 11 in
• Width: 19 in
• Depth: 14.25 in
• Display Size: 6.11 x 3.42 in
• Weight: 36.9 lb

Material Characteristics

• Color: Blue, Gray

Product Features

• Application: Asset Tracking, Barcode Labeling, Cold Temperature Labeling, Component and Equipment Labeling, Electrical Labeling, Exit and Egress Marking, Facility Identification, Food and Beverage Process Labeling, General Identification, Hazard Communication Identification, Healthcare and Hospital Labeling, Inventory and Inspection Labeling, Lean and 5S Labeling, Pipe and Valve Marking, Safety Identification, Security Identification, Temperature Indicating Labeling, Warehouse Marking
• Built-In Label Wizards: Arc Flash, Circle Gauge, Custom Label, General Templates, GHS/CLP, Gradient Scale, Pipe Marker, Pre-Made Labels, Right-to-Know, Tags, WHMIS
• Connectivity Options: Bluetooth® 5 Low Energy (class II)
• Cut Options Available: Full Cut
• Cutter Type: XY Cutter and Auto Cutter
• Display Type: Color LCD Touch Screen
• Estimated Media Changeover Time: 20 seconds
• Keyboard Type: Full Size QWERTZ
• Media Sensor Type: Notch
• Memory: 512 MB
• Device Connectivity: Mobile device connected, PC connected & Stand-alone
• Number of Symbols: 664
• Plug Type: US
• Power Supply Voltage: 110 - 240 V
• Auto Shut-Off / Power Conserve: Yes
• Print Preview Feature: Yes
• Special Characters Quantity: 95
• Units: Inches, mm, Points
• User Interface Type: Keyboard, Mobile device, PC, Touch Screen

Printing Specifications

• Automatic Label Set Up: Yes
• Barcode Symbologies - 2D: PDF417, QR code
• Barcode Symbologies - Linear: Code 128 Auto, Code 39, EAN-13, Interleaved 2 of 5, More through Brady WorkStation, UPC-A
• Calibration Required: No
• Color Printing Capability: Multi-Color
• Font Sizes: 4 - 600 pt
• Font Styles: Arial, Arial 65, Courier New, See Brady Workstation, Tahoma, Times New Roman, Trebuchet MS, Verdana
• Maximum Labels per Day: 600
• Minimum Label Length: 0.5 in
• Maximum Print Speed: 5 in/s
• Print Resolution: 300 dpi
• Print Technology: Thermal Transfer
• Media Sensor Adjustment: Automatic Adjustment
• On Screen Indicators: Bluetooth Status, Data Reception, Error Messaging, Ethernet Status, Ribbon and label part number recognition, Ribbon Remaining, Supply Remaining, WiFi

Compatibility

• Compatible Media: B30-, B30C-, B30EP-Label Material Types: Heavy Duty Polyester, Magnetic Polyester, Metal-detectable Polyester, Metallic, Non-metal Polyester, Metallized Polyester, Paper, Phosphorescent Polyester, Polyester, Polyester with Polyester Overlaminate, Polyimide, Polyvinylfluoride, Reflective Tape, Tamper-evident Metallized Polyester, Transfer Tape, Vinyl, Vinyl Cloth
• Continuous & Die-Cut Materials Supported: Continuous and Die-cut
• Custom Labels Available: No
• Maximum Label/Tape Width: 4 in
• Maximum Print Width: 4 in
• Maximum Printed Label Length: 8.3 ft
• Maximum Liner Width: 4.25 in
