BMP51 Label Printer with AC Adapter
Product Highlight
Maximum Label/Tape Width:
1.5 in
Color Printing Capability:
Single Color
Maximum Labels per Day:
500
Stand Alone Printing:
PC connected & Stand-alone
Print Resolution:
300 dpi
Print Technology:
Thermal Transfer
Overview
The BMP®51 Label Printer has all the latest features for portable printing on the go: a large display screen, hassle-free media cartridges, fast print speed, and more.

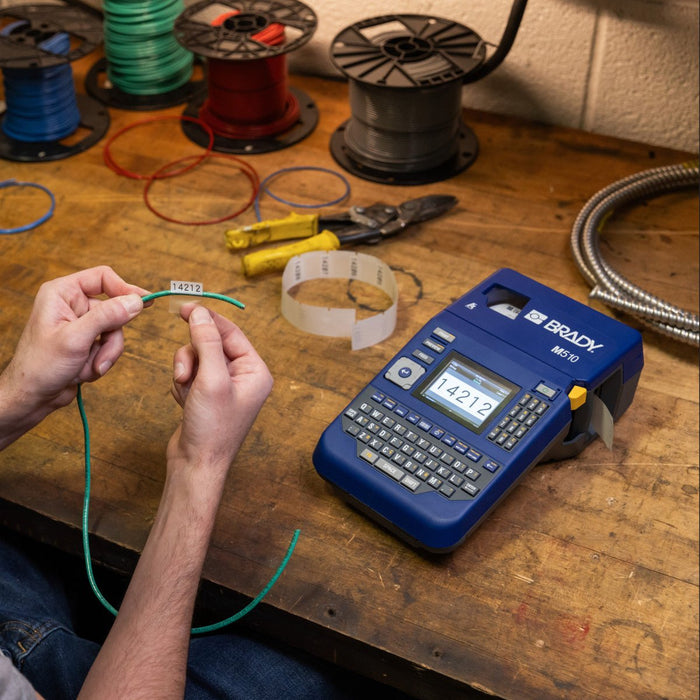

- Handheld label printer for creating multi-line labels to identify wires, panels, circuit boards and any other industrial items
- QWERTY keyboard contains letters A to Z, numbers 0 to 9, and backlit LCD graphics display for easier labeling even in low-lit areas
- Prints text in single color and in different text sizes ranging from 4 point to 103 point.
- Compatible with Brady BMP51 Series printer continuous tape cartridges to enable printing of various styles and widths
- Pair with the Brady Text Labels mobile app for compatibility with the Fluke Networks Linkware Live Solution
Top Applications

General Identification
Directional marking, Equipment labeling

DataCom
Self-Lams, Flag Labels, Patch-Panel and Face Plate labeling

Laboratory

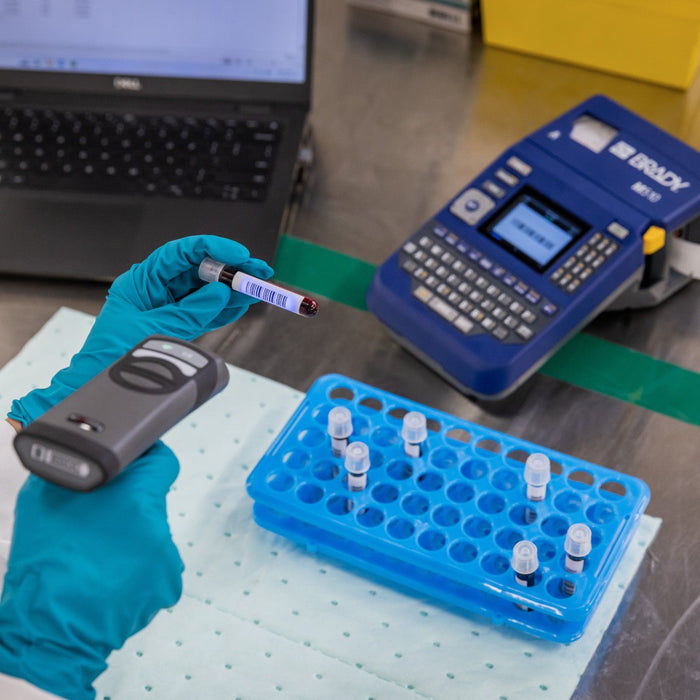

Vial, Tube, Slide labeling, Sample identification
Specifications
Key Characteristics | ||
Product Number | 143445 | |
UPC | 754473147075 | |
Applications | Audio/Visual Labeling, Cable & Wire Marking, Data Communications Labeling, Facility ID, Laboratory ID, Maintenance Labeling, Product ID, Safety Labeling | |
UOM | Each | |
Trade Name | BMP®51 | |
Brand Name | Brady® | |
Country of Origin | Malaysia | |
HTS Code (Harmonized Tariff Schedule) | 8443.32.1050 | |
ECCN (Export Commodity Control Number) | EAR99 |
Dimensions | Dimensions | 10.3 in H x 6 in W x 3.6 in D |
Height | 10.3 in | |
Width | 6 in | |
Depth | 3.6 in | |
Display Size | 2.7 x 1.7 in | |
Printer Weight | 2.6 lb | |
Weight | 2.6 lb |
Material Characteristics | Color | Blue |
Product Features | Application | Component and Equipment Labeling, Facility Identification, Laboratory Labeling, Wire and Cable Labeling |
Shipped With Battery | No | |
Battery mAh Rating | 2200 mAh | |
Battery Weight (metric) | 0.67 lb | |
Built-In Label Wizards | Flags, Patch Panel, Terminal Block, Wire Wrap | |
Connectivity Options | Ethernet (optional), USB, WiFi (optional) | |
Cutter Type | Between labels or at end of print job, Manual cut, With label retention | |
Display Type | Monocolor LCD Screen | |
Keyboard Type | QWERTY | |
Memory | 48 MB (stores up to 25,000 labels) | |
Mode of Operation | Stand-Alone & Peripheral Modes | |
Stand Alone Printing | PC connected & Stand-alone | |
Number of Printers in Kit | 1 | |
Number of Symbols | 480 | |
Plug Type | US | |
Power Supply Voltage | 110 - 240 V | |
Auto Shut-Off / Power Conserve | 10 minutes, User Configurable | |
Recharge Time | 3 hours | |
Special Characters Quantity | 123 | |
User Interface Type | Full QWERTY Keyboard | |
Battery Type | Optional AA Battery, Rechargeable Lithium-ion Battery | |
Label/Media Format | Cartridge | |
Supply Remaining Gauge | Yes |
Printing Specifications | Barcode Capability | Barcode Capable |
Barcode Symbologies - 2D | More through Brady Workstation | |
Barcode Symbologies - Linear | Code 128, Code 39, More through Brady WorkStation | |
Calibration Required? | Automated through Smart Cell | |
Color Printing Capability | Single Color | |
Font Sizes | 4 - 103 pt | |
Font Styles | Brady Alpine, Brady Fixed Width | |
Label Retention Feature | Yes | |
Maximum Labels per Day | 500 | |
Maximum Print Speed | 1 in/s | |
Minimum Label Length | 0.240 in | |
Print Resolution | 300 dpi | |
Minimum Liner Width | 0.813 in | |
Print Technology | Thermal Transfer | |
On Screen Indicators | Battery Life, Ribbon and label part number recognition, Supply Remaining | |
Device Drop Test & Durability | Resistant to 6-foot drops |
Compatibility | Cartridge Printer Series | M Series (M-, MC-, MC1-) |
Compatible Media | M-, MC-, MC1-, MFT- | |
Label Material Types | FreezerBondz™ Polyester, Heat-shrink Polyolefin, Metallized Polyester, Nylon Cloth, Paper, Polyester, Polypropylene, Reflective Tape, Self-laminating Polyester, Self-laminating Vinyl, StainerBondz™ Polyester, Tamper-resistant Vinyl, Vinyl, Vinyl Cloth | |
Continuous & Die-Cut Materials Supported | Continuous and Die-cut | |
Custom Labels Available | No | |
Custom Media Parts Available | No | |
Maximum Label/Tape Width | 1.5 in | |
Maximum Print Width | 1.5 in | |
Maximum Printed Label Length | 39 in | |
Maximum Liner Width | 1.81 in | |
Software Compatibility | Brady Workstation, CodeSoft, Express Labels Mobile App | |
Languages Available | Danish, Dutch, English (US), Finnish, French (France), German, Italian, Norwegian, Portuguese (Portugal), Spanish (Spain), Swedish |
What's Included | Includes | (1) AC Adapter/Battery Charger (M-AC-143110), (1) BMP®51 Printer (BMP51), (1) Free Brady WorkStation Basic Design Suite Download, (1) Hard Case (M50-HC), (1) Indoor Outdoor Vinyl Labels (MC-1500-595-WT-BK), (1) Product/Driver CD, (1) Quick Start Guide, (1) USB Cable (M-USB-103788) |
Warranty | 2 Years | |
Warranty (North America) | 2 Years | |
Kits Available | AC Adapter and Battery Charger, BMP®51 Printer, Free Brady WorkStation Basic Design Suite, Hard Case, MC-1500-595-WT-BK Label Cartridge, Quick Start Guide, USB Cable |
Compliance | UNSPSC | 45101520 |
Patent Number(s) | 591898, 5951177, US 6929415 | |
RoHS Compliance Status | Compliant with Directive 2011/65/EU and 2015/863 |
