BMP51 Label Printer with Workstation Safety and Facility ID Software
Product Highlight
Maximum Label/Tape Width:
1.5 in
Color Printing Capability:
Single Color
Maximum Labels per Day:
500
Stand Alone Printing:
PC connected & Stand-alone
Print Resolution:
300 dpi
Print Technology:
Thermal Transfer
Overview
Improve your printing speed with this kit that features the BMP®51 Label Printer and Brady Workstation software.
- Handheld BMP®51 Label Printer for creating multi-line labels to identify wires, panels, circuit boards and other industrial items
- QWERTY keyboard contains letters A to Z, numbers 0 to 9, and backlit LCD graphics display for easier labeling even in low-lit areas
- Compatible with Brady BMP51 printer continuous tape cartridges to enable printing of various styles and widths
- Brady Workstation Safety and Facility ID Software Suite makes it easy to create custom signs, labels and pipe markers
- NOTICE: Brady North America is not authorized to ship this item via air or to Alaska or Hawaii. Please contact your local distributor.
Top Applications

General Identification
Directional marking, Equipment labeling

DataCom
Self-Lams, Flag Labels, Patch-Panel and Face Plate labeling

Laboratory
Vial, Tube, Slide labeling, Sample identification
Specifications
Key Characteristics | Product Number | 151564 |
UPC | 754473639112 | |
UOM | Kit | |
Trade Name | BMP®51 | |
Brand Name | Brady® | |
Country of Origin | Malaysia | |
HTS Code (Harmonized Tariff Schedule) | 8443.32.1050 | |
ECCN (Export Commodity Control Number) | EAR99 |
Dimensions | Dimensions | 10.3 in H x 6 in W x 3.6 in D |
Height | 10.3 in | |
Width | 6 in | |
Depth | 3.6 in | |
Display Size | 2.7 x 1.7 in | |
Weight | 2.6 lb |
Material Characteristics | Color | Blue |
Product Features | Application | Data and Telecommunications Labeling, Facility Identification, Laboratory Labeling, Safety Identification, Wire and Cable Labeling |
Shipped With Battery | Yes | |
How Is Battery Shipped | Shipped in box, not installed | |
Battery mAh Rating | 2200 mAh | |
Battery Weight (metric) | 0.67 lb | |
Built-In Label Wizards | Flags, Patch Panel, Terminal Block, Wire Wrap | |
Connectivity Options | Ethernet (optional), USB, WiFi (optional) | |
Cutter Type | Between labels or at end of print job, Manual cut, With label retention | |
Display Type | Monocolor LCD Screen | |
Keyboard Type | QWERTY | |
Memory | 48 MB (stores up to 25,000 labels) | |
Stand Alone Printing | PC connected & Stand-alone | |
Number of Symbols | 480 | |
Plug Type | US | |
Power Supply Voltage | 110 - 240 V | |
Auto Shut-Off / Power Conserve | 10 minutes, User Configurable | |
Recharge Time | 3 hours | |
Special Characters Quantity | 123 | |
User Interface Type | Full QWERTY Keyboard | |
Battery Type | Optional AA Battery, Rechargeable Lithium-ion Battery |
Printing Specifications | Barcode Symbologies - 2D | More through Brady Workstation |
Barcode Symbologies - Linear | Code 128, Code 39, More through Brady WorkStation | |
Calibration Required? | Automated through Smart Cell | |
Color Printing Capability | Single Color | |
Font Sizes | 4 - 103 pt | |
Font Styles | Brady Alpine, Brady Fixed Width | |
Label Retention Feature | Yes | |
Maximum Labels per Day | 500 | |
Maximum Print Speed | 1 in/s | |
Minimum Label Length | 0.240 in | |
Print Resolution | 300 dpi | |
Minimum Liner Width | 0.813 in | |
Print Technology | Thermal Transfer | |
On Screen Indicators | Battery Life, Ribbon and label part number recognition, Supply Remaining | |
Device Drop Test & Durability | Resistant to 6-foot drops |
Compatibility | Compatible Media | M-, MC-, MC1-, MFT- |
Label Material Types | FreezerBondz™ Polyester, Heat-shrink Polyolefin, Metallized Polyester, Nylon Cloth, Paper, Polyester, Polypropylene, Reflective Tape, Self-laminating Polyester, Self-laminating Vinyl, StainerBondz™ Polyester, Tamper-resistant Vinyl, Vinyl, Vinyl Cloth | |
Continuous & Die-Cut Materials Supported | Continuous and Die-cut | |
Custom Labels Available | No | |
Custom Media Parts Available | No | |
Maximum Label/Tape Width | 1.5 in | |
Maximum Print Width | 1.5 in | |
Maximum Printed Label Length | 39 in | |
Maximum Liner Width | 1.81 in | |
Software Compatibility | Brady Workstation, CodeSoft, Express Labels Mobile App | |
Languages Available | Danish, Dutch, English (US), Finnish, French (France), German, Italian, Norwegian, Portuguese (Portugal), Spanish (Spain), Swedish |

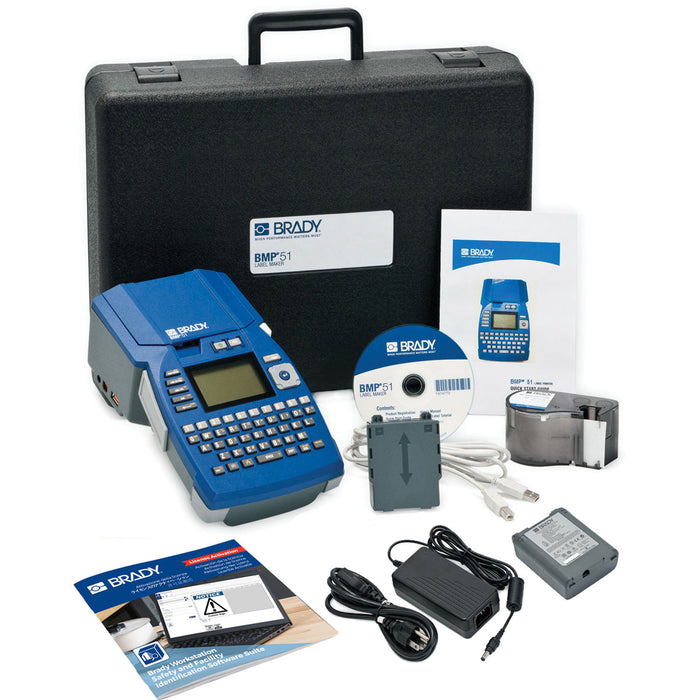

What's Included | Includes | (1) AC Adapter/Battery Charger (M-AC-143110), (1) BMP®51 Printer (BMP51), Brady Workstation SFID Suite, (1) Hard Case (M50-HC), (1) Indoor Outdoor Vinyl Labels (MC-1500-595-WT-BK), (1) Li-Ion Battery Pack (BMP-UBP), (1) Product/Driver CD, (1) Quick Start Guide, (1) USB Cable (M-USB-103788) |
Warranty (North America) | 2 Years |
Compliance | UNSPSC | 45101520 |
RoHS Compliance Status | Compliant with Directive 2011/65/EU and 2015/863 |
