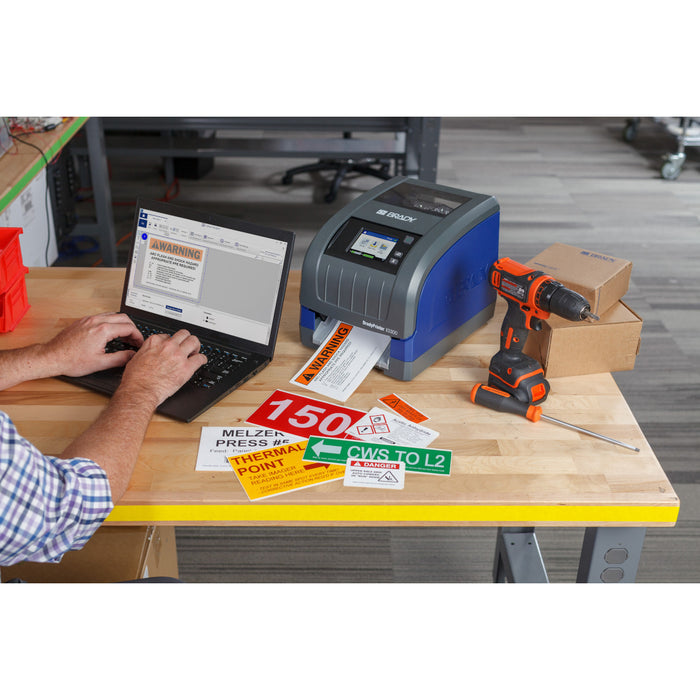

BradyPrinter i3300 Lean 5S Kit with Software - Bundle and Save
Got questions about your order?
Chat with us now!
Product Highlight
Maximum Label/Tape Width:
4.25 in
Color Printing Capability:
Single Color
Maximum Labels per Day:
3000
Stand Alone Printing:
PC connected
Print Resolution:
300 dpi
Print Technology:
Thermal Transfer
Cut Options Available:
Cut at the end of print jobs, Cut between labels, Full Cut
Overview
Get everything you need to easily create a visual workplace with this Lean and Visual workplace kit. From materials to software, this kit has you covered.
- The BradyPrinter i3300 is your full-facility identification printer – prints everything from arc flash labels to wire identification labels
- Easily create custom signs, labels and pipe markers with the Safety and Facility Identification Software Suite included keeping your facility safe and compliant
- The B-595 vinyl label material has an ultra-aggressive adhesive and withstands the elements indoors and out making it ideal for labeling a variety of industrial surfaces
- The B-581 label material has an aggressive adhesive that stays in place but removes cleanly without leaving adhesive residue making it ideal for 5S applications
- Magnetic Supply (B-509) label material is perfect for reusable, repositionable and lean/5S identification applications, especially changing inventory areas
- Tough, smear-proof ribbons produce long-lasting printed text that can withstand years in industrial areas and outdoor conditions
- Rigid tag backs allow you to create identification for pumps, valves and much more
Top Applications
General Identification
Directional marking, Equipment labeling
Wire and Cable
Sleeves, Self-Lams, Wire Wraps, Flag Labels, Cable Markers
Rating & Name Plate
Durable finished goods, High-quality barcode images, and text, UL certification
Circuit Board
ESD labels, Polyimide circuit board labels
Laboratory
Vial, Tube, Slide labeling, Sample identification
Specifications
Key Characteristics | Product Number | 151587 |
UPC | 888434555149 | |
UOM | Kit | |
Trade Name | BradyPrinter i3300 | |
Brand Name | Brady® | |
Country of Origin | Malaysia | |
HTS Code (Harmonized Tariff Schedule) | 8443.32.1050 | |
ECCN (Export Commodity Control Number) | EAR99 |
Dimensions | Dimensions | 9.5 in H x 9 in W x 12 in D |
Height | 9.5 in | |
Width | 9 in | |
Depth | 12 in | |
Display Size | 3.5 in | |
Weight | 11.5 lb |
Material Characteristics | Color | Blue, Gray |
Product Features | Application | Asset Tracking, Barcode Labeling, Circuit Board Labeling, Component and Equipment Labeling, Data and Telecommunications Labeling, Electrical Labeling, Facility Identification, General Identification, Hazard Communication Identification, Inventory and Inspection Labeling, Laboratory Labeling, Lean and 5S Labeling, Pipe and Valve Marking, Warehouse Marking, Wire and Cable Labeling |
Built-In Label Wizards | No | |
Connectivity Options | Ethernet, USB, USB 2.0 | |
Cut Options Available | Cut at the end of print jobs, Cut between labels, Full Cut | |
Cutter Type | Auto Cutter | |
Display Type | Color LCD Touch Screen | |
Estimated Media Changeover Time | 15 seconds for media roll, 5 seconds for ribbon | |
Keyboard Type | None | |
Memory | 512 MB RAM, 195 MB IFFS Flash | |
Stand Alone Printing | PC connected | |
Number of Symbols | See Brady Workstation Software | |
Plug Type | US | |
Power Supply Voltage | 100 - 240 V @ 50 - 60 Hz | |
Auto Shut-Off / Power Conserve | Yes | |
Print Preview Feature? | No | |
Units | Inches, mm, Points | |
User Interface Type | PC, Touch Screen | |
Operating System | Windows® 10, Windows® 7, Windows® 8, Windows® Server 2012, Windows® Server 2012 R2, Windows® Server 2016 |
Printing Specifications | Automatic Label Set Up | Yes |
Barcode Symbologies - 2D | Aztec, Data Matrix, MicroPDF417, PDF417, QR code | |
Barcode Symbologies - Linear | Code 128A, Code 128B, Code 128C, Code 39, Code 93, EAN-13, EAN-8, HIBC, Interleaved 2 of 5, Interleaved 2 of 5 with check digit, JAN-13, JAN-8, UPC-A | |
Calibration Required? | No | |
Color Printing Capability | Single Color | |
Font Sizes | 4 - 250 pt | |
Font Styles | Arial, Courier New, Tahoma, Times New Roman, Trechuchet MS, Verdana | |
Maximum Labels per Day | 3000 | |
Maximum Print Speed | 4 in/s | |
Minimum Label Length | 0.25 in | |
Print Resolution | 300 dpi | |
Minimum Liner Width | 0.71 in | |
Print Technology | Thermal Transfer | |
Media Sensor Adjustment | Automatic Adjustment | |
On Screen Indicators | Data Reception, Error Messaging, Ethernet Status, Ribbon and label part number recognition, Ribbon Remaining, Supply Remaining, WiFi |
Compatibility | Compatible Media | B30-, B30C-, B30EP-, B33-, B33C-, B33D-, B33FP-, B33FT-, B33R- |
Label Material Types | FreezerBondz™ Polyester, Heat-shrink Polyolefin, High Temperature Heat-shrink Polyvinylidene Fluoride Sleeve, Magnetic Polyester, Metal-detectable Polyester, Metallic, Non-metal Polyester, Metallized Polyester, Metallized Polyester with Polyester Overlaminate, Nylon Cloth, Paper, Phosphorescent Polyester, Polyester, Polyester with Polyester Overlaminate, Polyimide, Polyolefin, Polypropylene, Polyvinylfluoride, Reflective Tape, Self-laminating Polyester, Self-laminating Vinyl, StainerBondz™ Polyester, Static Dissipative Polyester, Tamper-evident Metallized Polyester, Vinyl, Vinyl Cloth | |
Continuous & Die-Cut Materials Supported | Continuous and Die-cut | |
Custom Labels Available | Yes | |
Custom Media Parts Available | Yes | |
Maximum Label/Tape Width | 4.25 in | |
Maximum Print Width | 4.015 in | |
Maximum Printed Label Length | 5 ft | |
Maximum Liner Width | 4.25 in | |
Software Compatibility | Brady Workstation, Windows based driver for 3rd party software use | |
Languages Available | Bulgarian, Chinese (Traditional and Simplified), Croatian, Czech, Danish, Dutch, English (US), Estonian, Finnish, French (Canada), French (France), German, Hungarian, Italian, Korean, Norwegian, Polish, Portuguese (Brazil), Portuguese (Portugal), Romanian, Russian, Spanish (Mexico), Spanish (Spain), Swedish, Thai, Turkish |

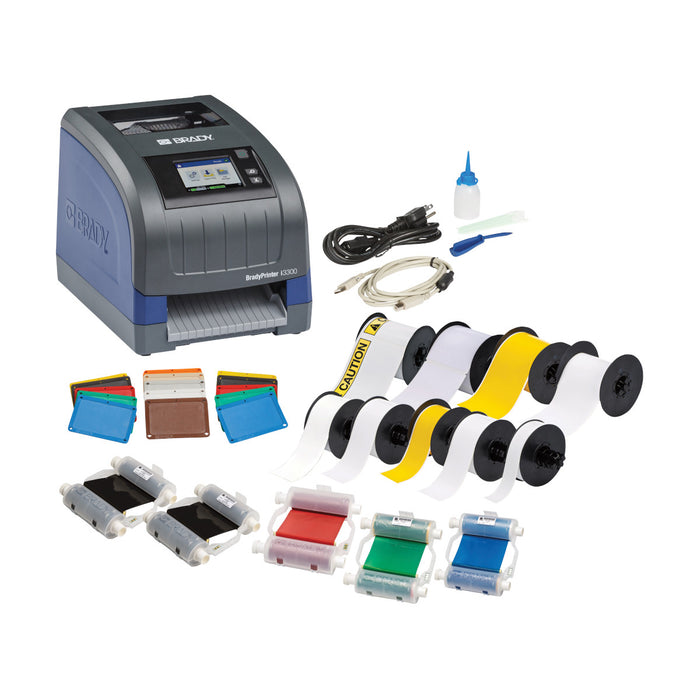

What's Included | Includes | (1) 142133 Plastic Tags Variety Pack, (1) B30-219-595-BLNKWT Pre Cut Blank Label Roll, (1) B30-25-595-ANSIWA Pre Cut ANSI Warning Label Roll, (1) B30C-1125-581-WT 1.125" White Repositional Roll, (1) B30C-2250-581-WT 2.25" White Repositional Roll, (1) B30C-2250-595-WT 2.25" White Roll, (1) B30C-2250-595-YL 2.25" Yellow Roll, (1) B30C-2500-509-WT 2.5" White Magnetic Roll, (1) B30C-4000-595-WT 4" White Roll, (1) B30C-4000-595-YL 4" Yellow Roll, (1) B30-R10000 Black Ribbon, (1) B30-R10000-BL Blue Ribbon, (1) B30-R10000-GN Green Ribbon, (1) B30-R10000-RD Red Ribbon, (1) BradyPrinter i3300 Printer (149551), (1) Cleaning Kit (PCK-6), (1) Cutter Cleaning Tool, (1) Power Cord, (1) Product CD with User (1) Manual, (1) Quick Start Guide, (1) USB Cable (1) BWS Safety & Facility Software Suite BWS-SFID-NA-EM |
Warranty (North America) | 5 Years |
Compliance | UNSPSC | 45101519 |
RoHS Compliance Status | Compliant with Directive 2011/65/EU |
