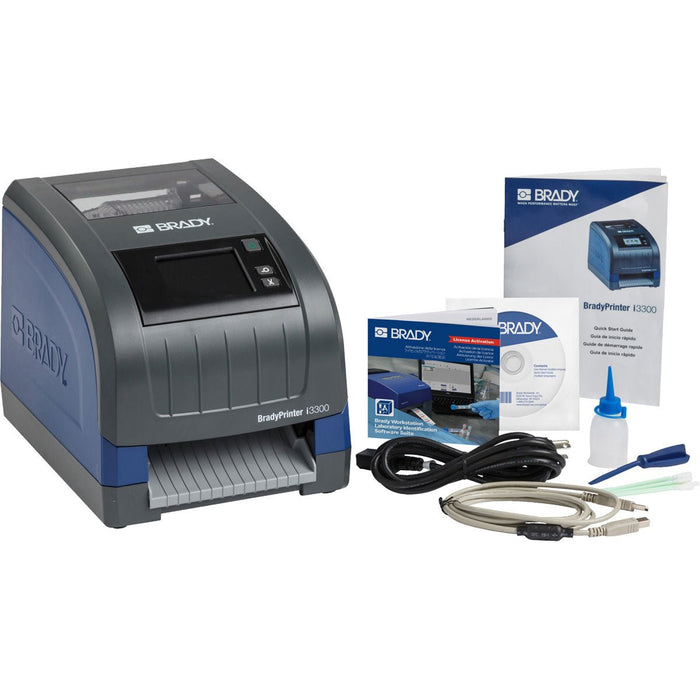

BradyPrinter i3300 with Brady Workstation Laboratory ID Software Suite

• Stand Alone Printing: PC connected
• Maximum Label/Tape Width: 4.25 in
• Cut Options Available: Cut at the end of print jobs, Cut between labels, Full Cut
• Maximum Labels per Day: 3000
• Color Printing Capability: Single Color
• Device Connectivity: PC connected
• Print Resolution: 300 dpi
• Print Technology: Thermal Transfer

Overview
Get your ideal label printing scenario with the BradyPrinter i3300 Industrial Label Printer – labels and ribbons that snap into place, no calibration, and no wasted blank labels.

• Included Brady Workstation Lab Suite makes creating basic text labels or labels with graphics and custom formatting fast and efficient
• Get auto calibration in the printer and auto setup in the software with print smart technology that allows the printer, label materials, ribbons, and software to work together
• Changeovers in a flash – foolproof drop-in label rolls and ribbons snap into place in 20 seconds
• Print smart technology allows the printer to print on the first label – even small labels
• Mid-volume industrial label printer can print on 75 lab specific materials – custom options are available
• Setup is stress-free – Contact our Brady Technical Support Team and we will schedule a free phone setup appointment

• Product Number: 150642
• Applications: Arc Flash Labels, Asset Tracking, Barcode Labeling, Cable & Wire Marking, Chemical Labeling, Circuit Board Marking, Data Center Labeling, Equipment Marking, Facility ID, General & Industrial ID, GHS & Chemical Labels, Laboratory ID, Lean/5S, Maintenance Labeling, Panel Labeling, Pipe & Valve Marking, Product ID, Push Button Labeling, Rating Plate ID, Safety Labeling, Single and Double sided sleeve printing, Terminal Block ID, Tube & Slide ID, Warning Labels
• UOM: Kit
• Trade Name: BradyPrinter i3300
• Country of Origin: Malaysia
• Dimensions: 9.5 in H x 9 in W x 12 in D
• Display Size: 3.5 in
• Material Characteristics: Color - Blue, Gray
• Product Features: Asset Tracking, Barcode Labeling, Circuit Board Labeling, Component and Equipment Labeling, Data and Telecommunications Labeling, Electrical Labeling, Facility Identification, General Identification, Hazard Communication Identification, Inventory and Inspection Labeling, Laboratory Labeling, Lean and 5S Labeling, Pipe and Valve Marking, Warehouse Marking, Wire and Cable Labeling
• Built-In Label Wizards: No
• Connectivity Options: Ethernet, USB, USB 2.0, Wi-Fi
• Cutter Type: Auto Cutter
• Display Type: Color LCD Touch Screen
• Estimated Media Changeover Time: 15 seconds for media roll, 5 seconds for ribbon
• Keyboard Type: None
• Memory: 512 MB RAM, 195 MB IFFS Flash
• Plug Type: US
• Power Supply Voltage: 100 - 240 V @ 50 - 60 Hz
• Auto Shut-Off / Power Conserve: Yes
• Print Preview Feature?: No
• Units: Inches, mm, Points
• User Interface Type: PC, Touch Screen
• Operating System: Windows® 10, Windows® 11, Windows® 7, Windows® 8, Windows® Server 2012, Windows® Server 2012 R2, Windows® Server 2016
• Supply Remaining Gauge: Yes
• Barcode Capability: Barcode Capable
• Barcode Symbologies - 2D: Aztec, Data Matrix, MicroPDF417, PDF417, QR code
• Barcode Symbologies - Linear: Code 128A, Code 128B, Code 128C, Code 39, Code 93, EAN-13, EAN-8, HIBC, Interleaved 2 of 5, Interleaved 2 of 5 with check digit, JAN-13, JAN-8, UPC-A
• Calibration Required?: No
• Font Sizes: 4 - 250 pt
• Font Styles: Arial, Courier New, Tahoma, Times New Roman, Trebuchet MS, Verdana
• Maximum Labels per Day: 3000
• Minimum Label Length: 0.25 in
• Maximum Print Speed: 4 in/s
• Minimum Liner Width: 0.71 in
• Print Resolution: 300 dpi
• Print Technology: Thermal Transfer
• Media Sensor Adjustment: Automatic Adjustment
• On Screen Indicators: Data Reception, Error Messaging, Ethernet Status, Ribbon and label part number recognition, Ribbon Remaining, Supply Remaining, WiFi
• Compatibility: Compatible Media - B30-, B30C-, B30EP-, B33-, B33C-, B33D-, B33FP-, B33FT-, B33R-
• Label Material Types: FreezerBondz™ Polyester, Heat-shrink Polyolefin, High Temperature Heat-shrink Polyvinylidene Fluoride Sleeve, Magnetic Polyester, Metal-detectable Polyester, Metallic, Non-metal Polyester, Metallized Polyester, Metallized Polyester with Polyester Overlaminate, Nylon Cloth, Paper, Phosphorescent Polyester, Polyester, Polyester with Polyester Overlaminate, Polyimide, Polyolefin, Polypropylene, Polyvinylfluoride, Reflective Tape, Self-laminating Polyester, Self-laminating Vinyl, StainerBondz™ Polyester, Static Dissipative Polyester, Tamper-evident Metallized Polyester, Vinyl, Vinyl Cloth
• Continuous & Die-Cut Materials Supported: Continuous and Die-cut
• Custom Media Parts Available: Yes
• Custom Labels Available: Yes
• Maximum Label/Tape Width: 4.25 in
• Maximum Print Width: 4.015 in
• Maximum Printed Label Length: 5 ft
• Maximum Liner Width: 4.25 in
• Software Compatibility: Brady Workstation, Windows based driver for 3rd party software use
