Product Number: 177533
UPC: 888434633649
UOM: Kit
Dimensions
Dimensions: 11 in H x 11.2 in W x 15.8 in D Height: 11 in Width: 11.2 in Depth: 15.8 in Display Size: 7 in Weight: 33 lb
Material Characteristics
Colour: Blue, Gray
Product Features
Application: Asset Tracking, Barcode Labeling, Circuit Board Labeling, Component and Equipment Labeling, Data and Telecommunications Labeling, Electrical Labeling, Facility Identification, General Identification, Laboratory Labeling, Pipe and Valve Marking, Solar Panel Labeling, Wire and Cable Labeling
Shipped With Battery: Yes How Is Battery Shipped: Shipped in box, not installed Built-In Label Wizards: No Connectivity Options: Bluetooth® 5 Low Energy (class II), Cabled, Ethernet, USB 2.0, USB Host Cut Options Available: Cut at the end of print jobs, Cut between labels, Full Cut Cutter Type: Auto Cutter Device Connectivity: PC connected Display Type: Color LCD Touch Screen Estimated Media Changeover Time: 15 seconds for media roll, 5 seconds for ribbon Keyboard Type: None Memory: 512 MB RAM, 195 MB IFFS Flash Number of Symbols: See Brady Workstation Software On Screen Indicators: Data Reception, Error Messaging, Ethernet Status, Ribbon and label part number recognition, Supply Remaining, WiFi Plug Type: US Power Supply Voltage: 100 - 240 V @ 50 - 60 Hz Auto Shut-Off / Power Conserve: Yes Print Preview Feature?: Yes Units: Inches, Millimeter, Points User Interface Type: PC, Touch Screen Battery Type: Internal, not removable, Rechargeable Lithium-ion Battery Operating System: Windows® 10, Windows® 7, Windows® 8, Windows® Server 2012, Windows® Server 2012 R2, Windows® Server 2016
Printing Specifications
Automatic Label Set Up: Yes Barcode Symbologies - 2D: Aztec, Data Matrix, PDF417, QR Code Barcode Symbologies - Linear: Codabar (NW-7), Code 128, Code 39, Code 93, EAN/JAN-13, EAN/JAN-8, Interleaved 2 of 5, MSI Plessey, UPC-A Calibration Required?: No Color Printing Capability: Single Color Font Sizes: 4 - 250 pt Font Styles: Arial, Courier New, Tahoma, Times New Roman, Trebuchet MS, TrueType fonts storable to printer, Verdana Maximum Labels per Day: 5000 Maximum Label/Tape Width: 4.25 in Minimum Label Length: 0.2 in Maximum Print Speed: 5 in/s Print Resolution: 600 dpi Print Technology: Direct Thermal, Thermal Transfer Programming Language: Brady custom software solution, Brady Script Emulator for ZPL (Accessory required) Media Sensor Adjustment: Automatic Adjustment
Compatibility
Compatible Media: B30-, B30C-, B30EP-, B33-, B33C-, B33D-, B33FP-, B33FT-, B33R-
Label Material Types: Direct Thermal Paper, FreezerBondz™ Polyester, Heat-shrink Polyolefin, High Temperature Heat-shrink Polyvinylidene Fluoride Sleeve, Magnetic Polyester, Metal-detectable Polyester, Metallic, Non-metal Polyester, Metallized Polyester, Metallized Polyester with Polyester Overlaminate, Nylon Cloth, Paper, Phosphorescent Polyester, Polyester, Polyester with Polyester Overlaminate, Polyimide, Polyolefin, Polypropylene, Polyvinylfluoride, Reflective Tape, Self-laminating Polyester, Self-laminating Vinyl, StainerBondz™ Polyester, Static Dissipative Polyester, Tamper-evident Metallized Polyester, Vinyl, Vinyl Cloth
Materials Supported: Continuous, Custom, Die-cut Custom Labels Available: Yes Maximum Print Width: 4.015 in Software Compatibility: Brady Workstation, Express Labels Mobile App, Software development kit, Windows based driver for 3rd party software use
Languages Available: Bahasa (Indonesian), Bahasa Malay, Bulgarian, Chinese (Traditional and Simplified), Croatian, Czech, Danish, Dutch, English (US), Estonian, Finnish, French (Canada), German, Hungarian, Japanese, Korean, Norwegian, Polish, Portuguese (Portugal), Romanian, Russian, Slovak, Spanish (universal), Thai, Turkish, Vietnamese
What's Included
Software Package: Product & Wire ID

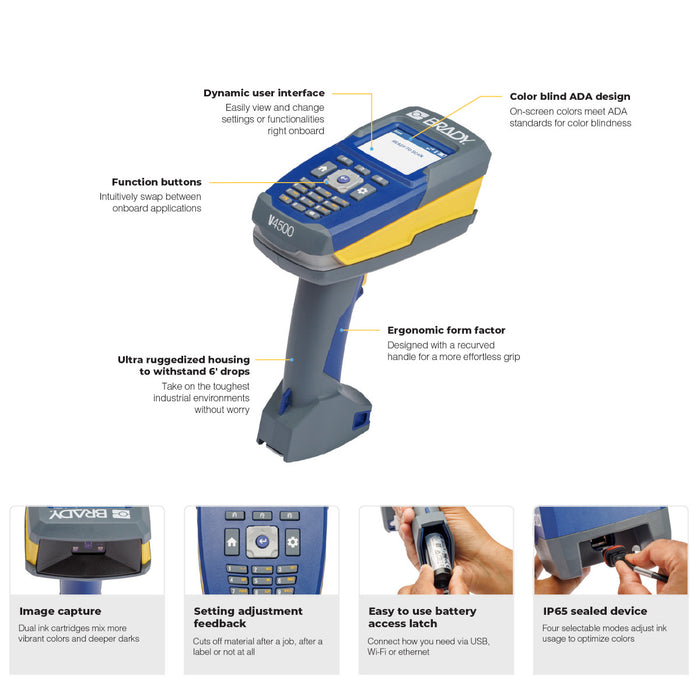

Includes: (1) Brady Workstation Design & Print Pro Insert - Product and Wire ID Suite - Product and Wire ID Suite, (1) BradyPrinter i5300 Industrial Label Printer, (1) Cleaning Kit, (1) Jump drive with How To Videos and 3rd Party Win Driver, (1) Power Cable (177242), (1) Printer Power Cable, (1) QuickStart Guide, (1) Stylus, (1) USB 1M Cable (177237), (1) USB Cable, (1) V1200 Battery (177234), (1) V1300 Cradle (177235), (1) V4500 AC Adapter (177241), (1) V4500 Barcode Scanner (177233)

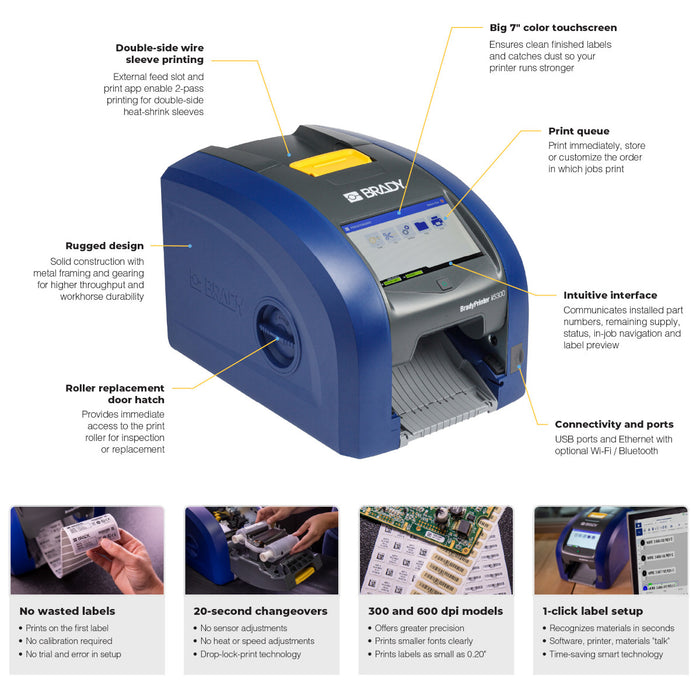

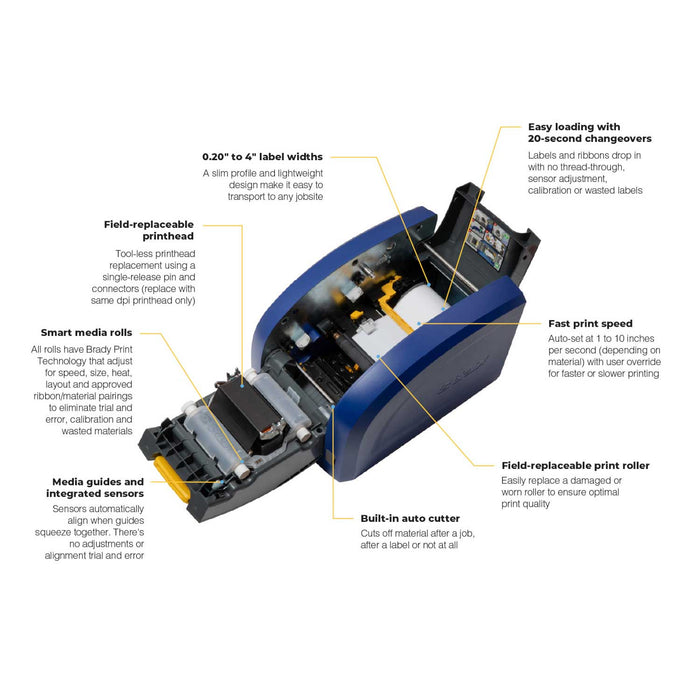

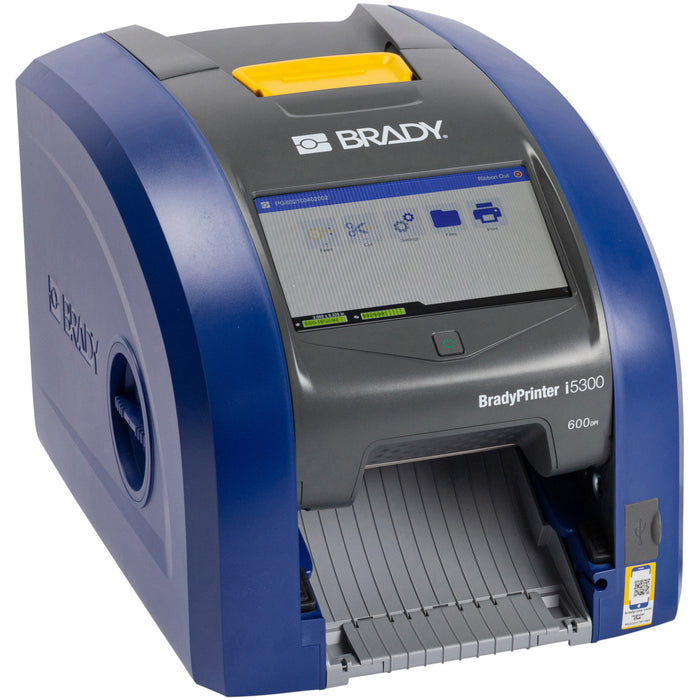

Model: i5300, V4500
Warranty: 5 Years
