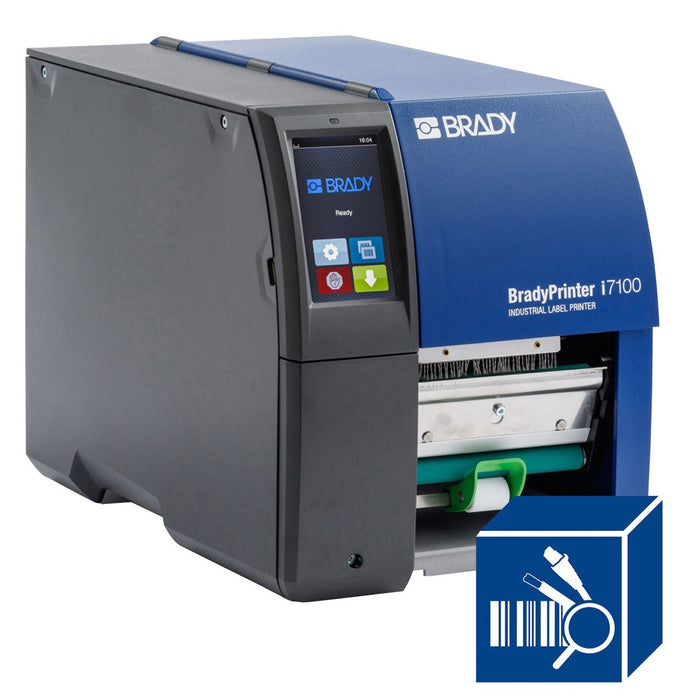

BradyPrinter i7100 300dpi Industrial Label Printer Peel Model with Product and Wire ID Software Suite

Got questions about your order?
Chat with us now!

Request a quote for bulk purchase
Original price $4,147.99 - Original price $4,147.99
Original price
$4,147.99
$4,147.99 - $4,147.99
Current price $4,147.99

Product Highlight

Maximum Label/Tape Width:

4.33 in

Color Printing Capability:

Single Color

Maximum Labels per Day:

7000

Stand Alone Printing:

PC connected & Stand-alone

Print Resolution:

300 dpi

Print Technology:

Direct Thermal, Thermal Transfer



Overview

Get the job done with the BradyPrinter i7100 Industrial Label Printer. No matter the demands, this reliable, heavy-duty and high-accuracy label printer gets it all done.

  • Print on the widest range of materials with confidence, including difficult to print materials
  • Peel configuration automatically peels labels from the liner
  • Prints ultra-sharp on labels as small as 0.125 in. with high accuracy
  • Designed to print thousands of labels per day, everyday

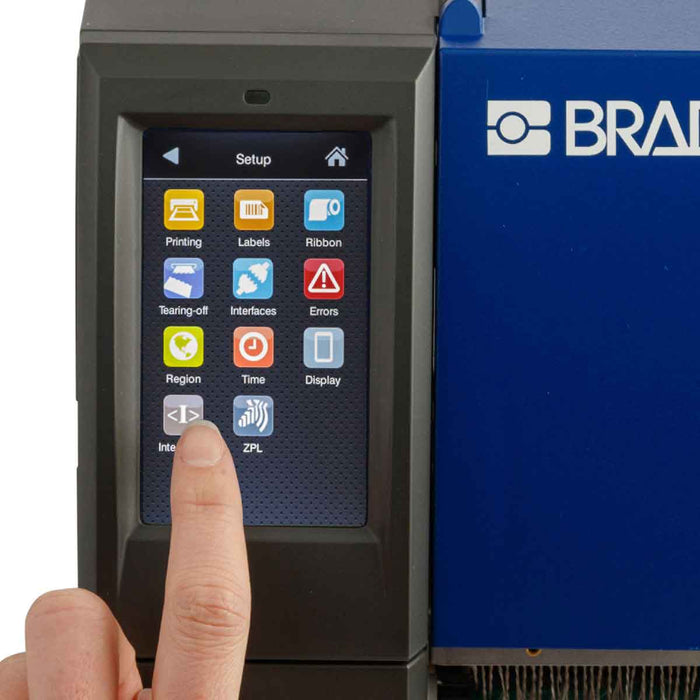

  • Easy-to-use touch screen interface to adjust printer settings quickly and easily

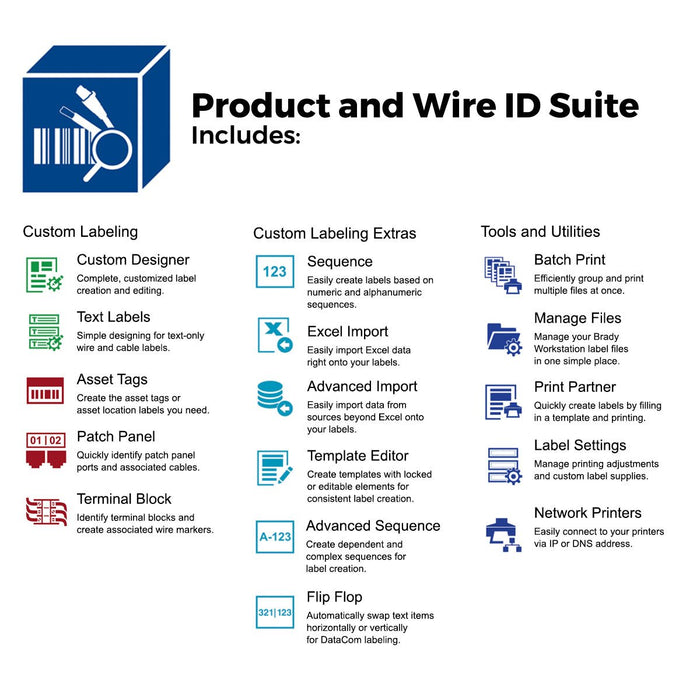

  • Ships with Brady Workstation Product and Wire ID Software Suite with built-in templates for fixed text or free-form label design options

View the i7100 printer overview video

Top Applications

General Identification

Directional marking, Equipment labeling

Wire and Cable

Sleeves, Self-Lams, Wire Wraps, Flag Labels, Cable Markers

Rating & Name Plate

Durable finished goods, High quality barcode images and text, UL certification

Circuit Board

ESD labels, Polyimide circuit board labels

Electrical

Sleeves, Self-Lams, Wire Wraps, Cable Markers, Flag and Raised Panel Labels

Specifications

Key Characteristics
Product Number 149045
UPC 754473587819
Applications  Aerospace, Arc Flash Labels, Asset Tracking, Automotive, Barcode Labeling, Cable & Wire Marking, Circuit Board Marking, Data Center Labeling, Electronics Manufacturing, General & Industrial ID, Government & Defense, Laboratory ID - Bottle, Tube & Vial, Manufacturing, Military, Panel & Push Button Labels, Rating Plate ID, Ship/Boat/Marine Industries, Single and Double sided sleeve printing
UOM Each
Trade Name BradyPrinter i7100
Brand Name Brady®
Country of Origin  Germany
HTS Code (Harmonized Tariff Schedule)  8443.32.1050
ECCN (Export Commodity Control Number)  EAR99
Dimensions Dimensions 11.4 in H x 9.9 in W x 18.1 in D
Height 11.4 in
Width 9.9 in
Depth 18.1 in
Display Size 2.0 x 3.6 in
Weight 22.05 lb
Material Characteristics Color Blue, Gray
Product Features Application  Barcode Labeling, Circuit Board Labeling, Component and Equipment Labeling, Data and Telecommunications Labeling, Electrical Labeling, Inventory and Inspection Labeling, Laboratory Labeling, Wire and Cable Labeling
Connectivity Options  Ethernet, RS232, USB 2.0, USB Host
Cutter Type None
Display Type Color LCD Screen
Keyboard Type None
Media Sensor Type Black Mark, Gap Sensor, Notch, Reflective Sensor
Memory 256 MB RAM, 50 MB IFFS Flash, SD card up to 512 GB
Mode of Operation  PC Connect, Peripheral Mode
Stand Alone Printing  PC connected & Stand-alone
Plug Type US
Power Supply Voltage 100 - 240 V @ 50 - 60 Hz
User Interface Type PC, Touch Screen
Battery Type Lithium-manganese Battery
Operating System Windows® 10, Windows® 7, Windows® 8, Windows® Server 2012, Windows® Server 2012 R2, Windows® Server 2016
Ribbon Ink Wind Direction  Side In/Side Out
Supply Remaining Gauge  No
Printing Specifications Automatic Label Set Up  No
Barcode Capability Barcode Capable
Barcode Symbologies - 2D Aztec, Data Matrix, GS1 DataMatrix, MaxiCode, MicroPDF417, PDF417, QR code
Barcode Symbologies - Linear Codabar, Codablock F, Code 128A, Code 128B, Code 128C, Code 39, Code 39 Full ASCII, Code 93, Deutsche Post Identcode, Deutsche Post Leitcode, EAN/UCC 128, EAN/UPC, EAN/UPC Extension 2, EAN/UPC Extension 5, EAN-13, EAN-8, FIM, GS1 DataBar, GS1 DataBar Limited, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Truncated, GS1-128, HIBC, Interleaved 2 of 5, JAN-8, MSI, Plessey, POSTNET, UPC-A, UPC-E, UPC-E0
Calibration Required?  Yes
Color Printing Capability Single Color
Font Styles Bitmap Default Font - 12x12 dots, Bitmap Default Font - 16x16 dots, Bitmap Default Font - 16x32 dots, Monospace 821, OCR-A Size I, OCR-B, Swiss 721, Swiss 721 Bold
Maximum Labels per Day  7000
Minimum Label Length  0.125 in
Maximum Print Speed 5.9 in/s
Minimum Liner Width 0.36 in
Print Resolution 300 dpi
Print Technology Direct Thermal, Thermal Transfer
Media Sensor Adjustment Yes
On Screen Indicators Bluetooth Status, Data Reception, Data Recording, Digital Clock, Ethernet Status, Ribbon Remaining, SD Memory Card inserted, Supply Remaining, USB Memory Stick inserted, USB Slave Status, WLAN Field Intensity
Compatibility Compatible Media  3PS-, BPT-, BPTC-, BPTRDS-, HCM-, HSNX-, HX-, LSZH-, PS-, PSHT-, PSL-, TB-, THT-, TIL-, XTHT-, ZH-
Label Material Types Diesel-resistant Heat-shrink Polyolefin Sleeve, Direct Thermal Paper, FreezerBondz™ Polyester, Heat-shrink Polyolefin, High Temperature Heat-shrink Polyvinylidene Fluoride Sleeve, Metallic, Non-metal Polyester, Metallized Polyester, Metallized Polyester with Polyester Overlaminate, Nylon Cloth, Paper, Polyester, Polyester with Polyester Overlaminate, Polyethylene Foam Laminate Polyester, Polyimide, Polyolefin, Polypropylene, Polyvinylfluoride, Repositionable Paper, Self-laminating Polyester, Self-laminating Vinyl, StainerBondz™ Polyester, Static Dissipative Polyester, Tamper-evident Metallized Polyester, Tamper-evident Polyester, Tamper-resistant Metallized Vinyl, Tamper-resistant Vinyl, Vinyl, Vinyl Cloth, Water-indicating Polyester/Paper Laminate
Continuous & Die-Cut Materials Supported Continuous and Die-cut
Custom Media Parts Available Yes
Custom Labels Available Yes
Maximum Label/Tape Width 4.33 in
Maximum Print Width 4.16 in
Maximum Printed Label Length 9.8 in
Maximum Liner Width 4.49 in
Software Compatibility Brady Workstation, Windows based driver for 3rd party software use
Languages Available Bulgarian, Chinese (Simplified), Croatian, Czech, Danish, Dutch, English (US), Farsi, Finnish, French (France), German, Greek, Hungarian, Italian, Korean, Lithuanian, Macedonian, Norwegian, Polish, Portuguese (Portugal), Romanian, Russian, Serbian, Slovenian, Spanish (Spain), Swedish, Turkish

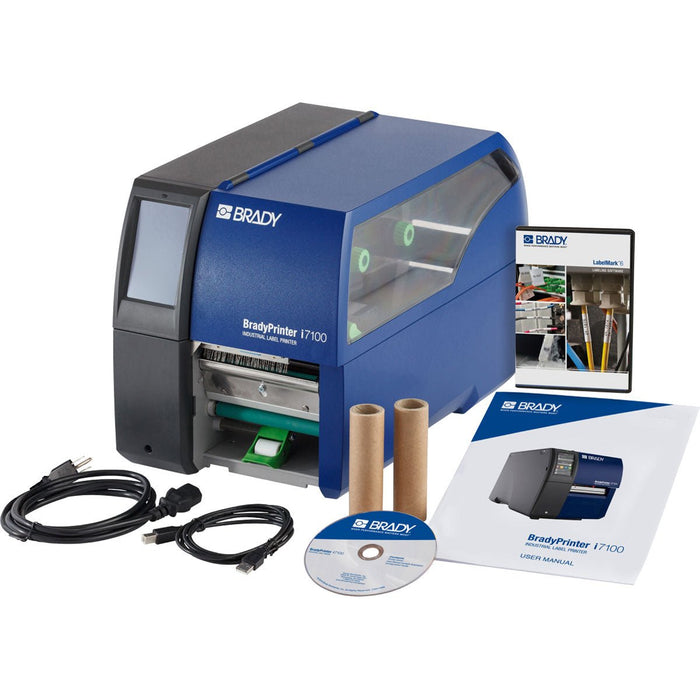

What's Included Includes (1) Brady Workstation Product and Wire ID Software Suite (BWS-PWID-EM), (1) BradyPrinter i7100 300 dpi Peel Model Printer (149045), (1) Configuration Settings Manual, (1) Owners Manual, (1) Product CD with Driver, (1) U.S. Type B Plug Power Cord, (1) USB Cable, (2) 1 In Ribbon Takeup Cores
Warranty 5 Years
Warranty (North America) 5 Years
Compliance UNSPSC  45101519
RoHS Compliance Status Compliant with Directive 2011/65/EU and 2015/863
