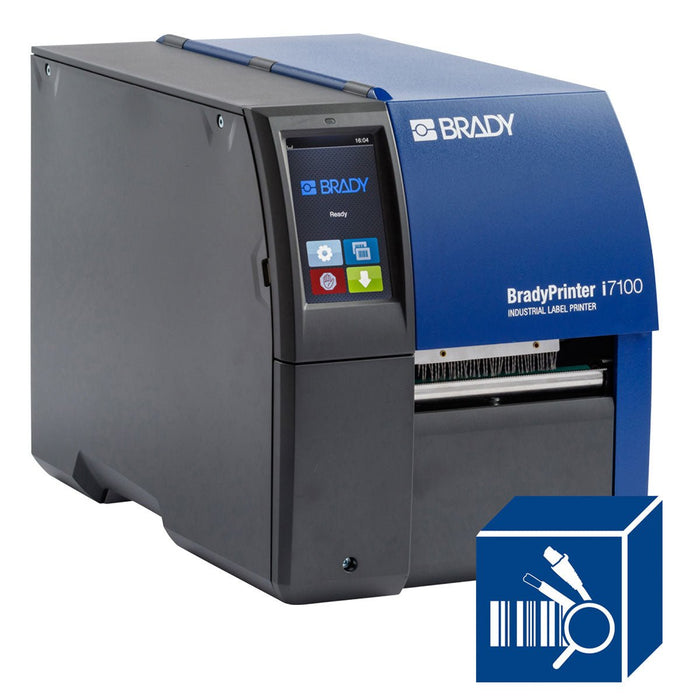

BradyPrinter i7100 600dpi Industrial Label Printer with Product and Wire ID Software Suite
by Brady Canada
Original price
$3,843.00
-
Original price
$3,843.00
Original price
$3,843.00
$3,843.00
-
$3,843.00
Current price
$3,843.00
Product Highlight
Maximum Label/Tape Width:
4.33 in
Color Printing Capability:
Single Color
Maximum Labels per Day:
7000
Stand Alone Printing:
PC connected & Stand-alone
Print Resolution:
600 dpi
Print Technology:
Direct Thermal, Thermal Transfer
Overview
Get the job done with the BradyPrinter i7100 Industrial Label Printer. No matter the demands, this reliable, heavy-duty and high-accuracy label printer gets it all done.
- Print on the widest range of materials with confidence, including difficult to print materials

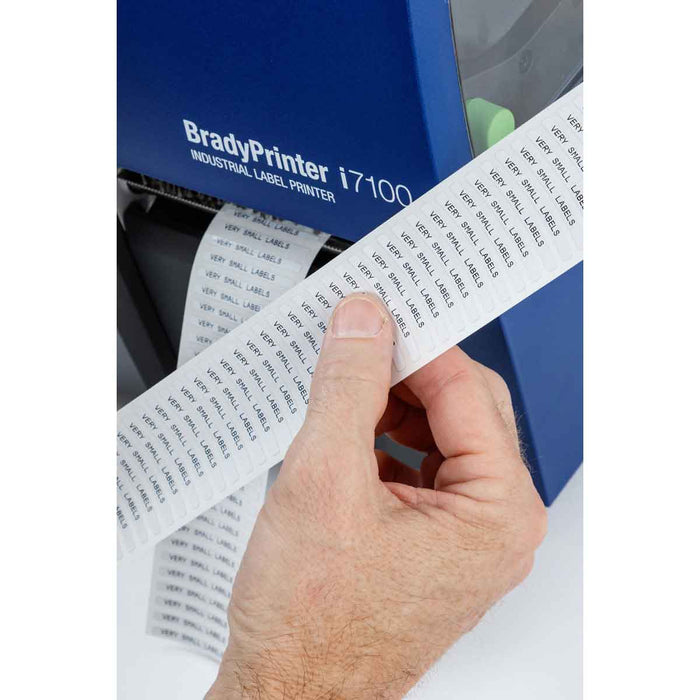

- Prints ultra-sharp on labels as small as 0.125 in. with high accuracy
- Designed to print thousands of labels per day, everyday
- Easy-to-use touch screen interface to adjust printer settings quickly and easily

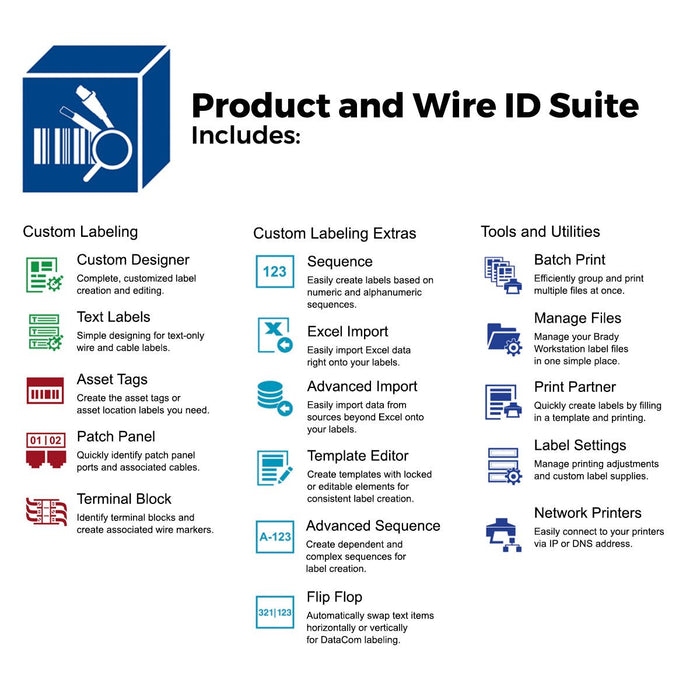

- Ships with Brady Workstation Product and Wire ID Software Suite with built-in templates for fixed text or free-form label design options
- Setup is stress free – Contact our Brady Technical Support Team and we will schedule a free phone setup appointment
Top Applications
General Identification
Directional marking, Equipment labeling
Wire and Cable
Sleeves, Self-Lams, Wire Wraps, Flag Labels, Cable Markers
Rating & Name Plate
Durable finished goods, High quality barcode images and text, UL certification
Circuit Board
ESD labels, Polyimide circuit board labels
Electrical
Sleeves, Self-Lams, Wire Wraps, Cable Markers, Flag and Raised Panel Labels
Specifications
| Key Characteristics | ||
| Product Number | 149056 | |
| UPC | 754473587826 | |
| Applications | Aerospace, Arc Flash Labels, Asset Tracking, Automotive, Barcode Labeling, Cable & Wire Marking, Circuit Board Marking, Data Center Labeling, Electronics Manufacturing, General & Industrial ID, Government & Defense, Laboratory ID - Bottle, Tube & Vial, Manufacturing, Military, Panel & Push Button Labels, Rating Plate ID, Ship/Boat/Marine Industries, Single and Double sided sleeve printing | |
| UOM | Each | |
| Trade Name | BradyPrinter i7100 | |
| Brand Name | Brady® | |
| Country of Origin | Germany | |
| HTS Code (Harmonized Tariff Schedule) | 8443.32.1050 | |
| ECCN (Export Commodity Control Number) | EAR99 |
| Dimensions | Dimensions | 11.4 in H x 9.9 in W x 18.1 in D |
| Height | 11.4 in | |
| Width | 9.9 in | |
| Depth | 18.1 in | |
| Display Size | 2.0 x 3.6 in | |
| Weight | 22.05 lb |
| Material Characteristics | Color | Blue, Gray |
| Product Features | Application | Barcode Labeling, Circuit Board Labeling, Component and Equipment Labeling, Data and Telecommunications Labeling, Electrical Labeling, General Identification, Inventory and Inspection Labeling, Laboratory Labeling, Wire and Cable Labeling |
| Connectivity Options | Ethernet, RS232, USB 2.0, USB Host | |
| Cutter Type | None | |
| Display Type | Color LCD Screen | |
| Keyboard Type | None | |
| Media Sensor Type | Black Mark, Gap Sensor, Notch, Reflective Sensor | |
| Memory | 256 MB RAM, 50 MB IFFS Flash, SD card up to 512 GB | |
| Stand Alone Printing | PC connected & Stand-alone | |
| Mode of Operation | PC Connect, Peripheral Mode | |
| Plug Type | US | |
| Power Supply Voltage | 100 - 240 V @ 50 - 60 Hz | |
| User Interface Type | PC, Touch Screen | |
| Battery Type | Lithium-manganese Battery | |
| Operating System | Windows® 10, Windows® 7, Windows® 8, Windows® Server 2012, Windows® Server 2012 R2, Windows® Server 2016 | |
| Ribbon Ink Wind Direction | Side In/Side Out | |
| Supply Remaining Gauge | No |
| Printing Specifications | Automatic Label Set Up | No |
| Barcode Capability | Barcode Capable | |
| Barcode Symbologies - 2D | Aztec, Data Matrix, GS1 DataMatrix, MaxiCode, MicroPDF417, PDF417, QR code | |
| Barcode Symbologies - Linear | Codabar, Codablock F, Code 128A, Code 128B, Code 128C, Code 39, Code 39 Full ASCII, Code 93, Deutsche Post Identcode, Deutsche Post Leitcode, EAN/UCC 128, EAN/UPC, EAN/UPC Extension 2, EAN/UPC Extension 5, EAN-13, EAN-8, FIM, GS1 DataBar, GS1 DataBar Limited, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Truncated, GS1-128, HIBC, Interleaved 2 of 5, JAN-8, MSI, Plessey, POSTNET, UPC-A, UPC-E, UPC-E0 | |
| Calibration Required? | Yes | |
| Color Printing Capability | Single Color | |
| Font Styles | Bitmap Default Font - 12x12 dots, Bitmap Default Font - 16x16 dots, Bitmap Default Font - 16x32 dots, Monospace 821, OCR-A Size I, OCR-B, Swiss 721, Swiss 721 Bold | |
| Maximum Labels per Day | 7000 | |
| Maximum Print Speed | 5.9 in/s | |
| Minimum Label Length | 0.125 in | |
| Print Resolution | 600 dpi | |
| Minimum Liner Width | 0.36 in | |
| Print Technology | Direct Thermal, Thermal Transfer | |
| Media Sensor Adjustment | Yes | |
| On Screen Indicators | Bluetooth Status, Data Reception, Data Recording, Digital Clock, Ethernet Status, Ribbon Remaining, SD Memory Card inserted, Supply Remaining, USB Memory Stick inserted, USB Slave Status, WLAN Field Intensity |
| Compatibility | Compatible Media | 3PS-, BPT-, BPTC-, BPTRDS-, HCM-, HSNX-, HX-, LSZH-, PS-, PSHT-, PSL-, TB-, THT-, TIL-, XTHT-, ZH- |
| Label Material Types | Diesel-resistant Heat-shrink Polyolefin Sleeve, Direct Thermal Paper, FreezerBondz™ Polyester, Heat-shrink Polyolefin, High Temperature Heat-shrink Polyvinylidene Fluoride Sleeve, Metallic, Non-metal Polyester, Metallized Polyester, Metallized Polyester with Polyester Overlaminate, Nylon Cloth, Paper, Polyester, Polyester with Polyester Overlaminate, Polyethylene Foam Laminate Polyester, Polyimide, Polyolefin, Polypropylene, Polyvinylfluoride, Repositionable Paper, Self-laminating Polyester, Self-laminating Vinyl, StainerBondz™ Polyester, Static Dissipative Polyester, Tamper-evident Metallized Polyester, Tamper-evident Polyester, Tamper-resistant Metallized Vinyl, Tamper-resistant Vinyl, Vinyl, Vinyl Cloth, Water-indicating Polyester/Paper Laminate | |
| Continuous & Die-Cut Materials Supported | Continuous and Die-cut | |
| Custom Media Parts Available | Yes | |
| Custom Labels Available | Yes | |
| Maximum Label/Tape Width | 4.33 in | |
| Maximum Print Width | 4.16 in | |
| Maximum Printed Label Length | 9.8 in | |
| Maximum Liner Width | 4.49 in | |
| Software Compatibility | Brady Workstation, Windows based driver for 3rd party software use | |
| Languages Available | Bulgarian, Chinese (Simplified), Croatian, Czech, Danish, Dutch, English (US), Farsi, Finnish, French (France), German, Greek, Hungarian, Italian, Korean, Lithuanian, Macedonian, Norwegian, Polish, Portuguese (Portugal), Romanian, Russian, Serbian, Slovenian, Spanish (Spain), Swedish, Turkish |

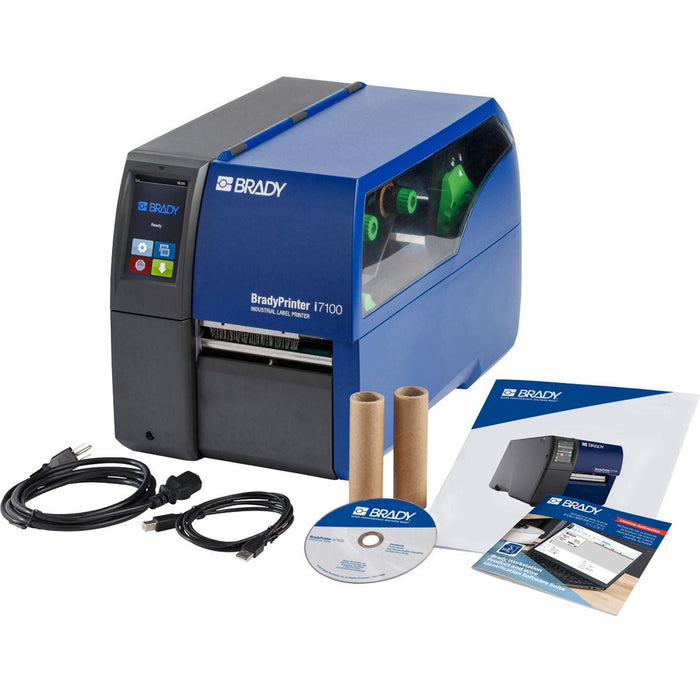

| What's Included | Includes | (1) Brady Workstation Product and Wire ID Software Suite (BWS-PWID-EM), (1) BradyPrinter i7100 600 dpi Printer (149056), (1) Configuration Settings Manual, (1) Owners Manual, (1) Product CD with Driver, (1) U.S. Type B Plug Power Cord, (1) USB Cable, (2) 1 In Ribbon Takeup Cores |
| Warranty (North America) | 5 Years | |
| Warranty | 5 Years |
| Compliance | UNSPSC | 45101519 |
| \\\ | ||
| RoHS Compliance Status | Compliant with Directive 2011/65/EU and 2015/863 |
