Product Number: 176714
UPC: 888434625903
UOM: Kit
Dimensions
Dimensions: 11.4 in H x 9.9 in W x 18.1 in D
Height: 11.4 in
Width: 9.9 in
Depth: 18.1 in
Display Size: 2 x 3.6 in
Weight: 22.05 lb
Material Characteristics
Colour: Blue, Gray
Product Features
Application: Barcode Labeling, Circuit Board Labeling, Component and Equipment Labeling, Data and Telecommunications Labeling, Electrical Labeling, General Identification, Inventory and Inspection Labeling, Laboratory Labeling, Wire and Cable Labeling
Connectivity Options: Ethernet, RS232, USB 2.0, USB Host
Cutter Type: None
Device Connectivity: PC connected & Stand-alone
Display Type: Color LCD Screen
Keyboard Type: None
Media Sensor Type: Black Mark, Gap Sensor, Notch, Reflective Sensor
Memory: 256 MB RAM, 50 MB IFFS Flash, SD card up to 512 GB
On Screen Indicators: Bluetooth Status, Data Reception, Data Recording, Digital Clock, Ethernet Status, Ribbon Remaining, SD Memory Card inserted, Supply Remaining, USB Memory Stick inserted, USB Slave Status, WLAN Field Intensity
Plug Type: US
Power Supply Voltage: 100 - 240 V @ 50 - 60 Hz
User Interface Type: PC, Touch Screen
Battery Type: Lithium-manganese Battery
Operating System: Windows® 10, Windows® 11, Windows® 7, Windows® 8, Windows® Server 2012, Windows® Server 2012 R2, Windows® Server 2016
Printing Specifications
Automatic Label Set Up: No
Barcode Symbologies - 2D: Aztec, Codablock F, Data Matrix, GS1 DataMatrix, MaxiCode, MicroPDF417, PDF417, QR Code
Barcode Symbologies - Linear: Codabar (NW-7), Code 128, Code 39, Code 93, Deutsche Post (Identcode/Leitcode), EAN/JAN-13, EAN/JAN-8, EAN/UPC, FIM, GS1 DataBar, GS1 DataBar Expanded and GS1 DataBar Limited, GS1 DataBar Stacked and GS1 DataBar Truncated, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Truncated, GS1-128, Interleaved 2 of 5, MSI Plessey, POSTNET, Supports 1D/Linear barcodes, UPC-A, UPC-E
Calibration Required?: Yes
Color Printing Capability: Single Color
Font Styles: Bitmap Default Font - 12x12 dots, Bitmap Default Font - 16x16 dots, Bitmap Default Font - 16x32 dots, Monospace 821, OCR-A Size I, OCR-B, Swiss 721, Swiss 721 Bold
Maximum Labels per Day: 7000
Maximum Label/Tape Width: 4.33 in
Maximum Print Speed: 5.9 in/s
Minimum Label Length: 0.125 in
Maximum Printed Label Length: 9.8 in
Print Resolution: 600 dpi
Print Technology: Direct Thermal, Thermal Transfer
Programming Language: abc Basic Compiler, Built-in ZPL Emulator, Database Connector, Jscript, SAP Integration
Media Sensor Adjustment: Yes
Compatibility
Compatible Media: 3PS-, BPT-, BPTC-, BPTRDS-, HCM-, HSNX-, HX-, LSZH-, PS-, PSHT-, PSL-, TB-, THT-, TIL-, XTHT-, ZH-
Label Material Types: Diesel-resistant Heat-shrink Polyolefin Sleeve, Direct Thermal Paper, FreezerBondz™ Polyester, Heat-shrink Polyolefin, High Temperature Heat-shrink Polyvinylidene Fluoride Sleeve, Metallic, Non-metal Polyester, Metallized Polyester, Metallized Polyester with Polyester Overlaminate, Nylon Cloth, Paper, Polyester, Polyester with Polyester Overlaminate, Polyethylene Foam Laminate Polyester, Polyimide, Polyolefin, Polypropylene, Polyvinylfluoride, Repositionable Paper, Self-laminating Polyester, Self-laminating Vinyl, StainerBondz™ Polyester, Static Dissipative Polyester, Tamper-evident Metallized Polyester, Tamper-evident Polyester, Tamper-resistant Metallized Vinyl, Tamper-resistant Vinyl, Vinyl, Vinyl Cloth, Water-indicating Polyester/Paper Laminate
Materials Supported: Bulk, Continuous, Custom, Die-cut
Custom Labels Available: Yes
Maximum Print Width: 4.16 in
Software Compatibility: Brady Workstation, Windows based driver for 3rd party software use
Languages Available: Bulgarian, Chinese (Simplified), Croatian, Czech, Danish, Dutch, English (US), Farsi, Finnish, French (France), German, Greek, Hungarian, Italian, Korean, Lithuanian, Macedonian, Norwegian, Polish, Portuguese (Portugal), Romanian, Russian, Serbian, Slovenian, Spanish (Spain), Swedish, Turkish
What's Included
Software Package: Product & Wire ID

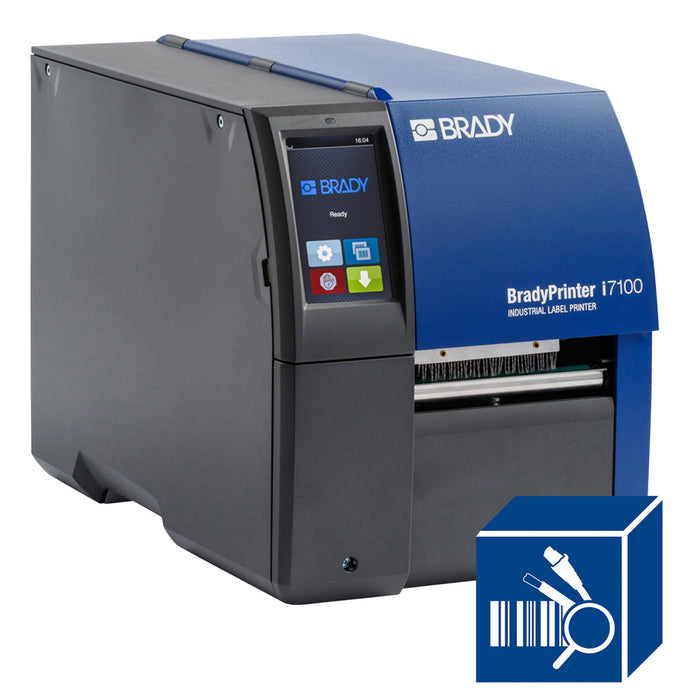

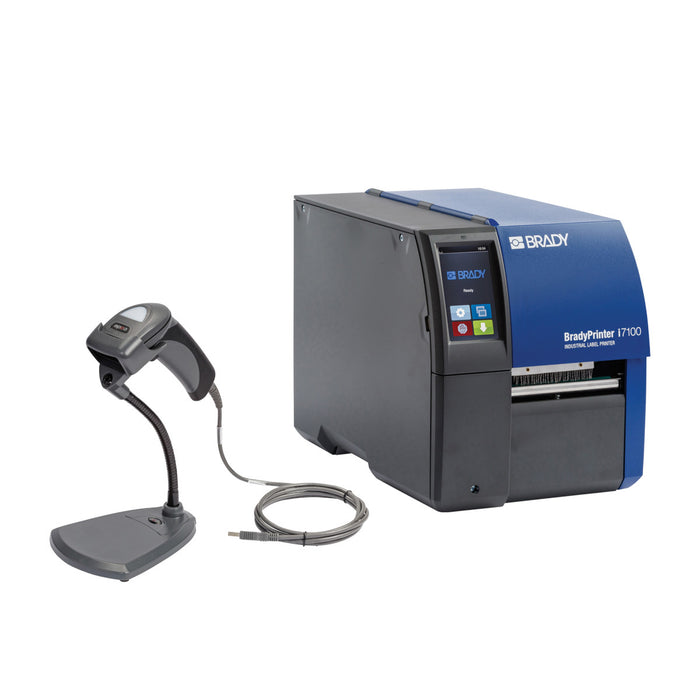

Includes: (1) Brady Workstation Product and Wire ID Software Suite (BWS-PWID-EM), (1) BradyPrinter i7100 600 dpi Printer (149056), (1) Configuration Settings Manual, (1) CR1500 Handheld Wired Barcode Scanner with Stand (176511), (1) Owners Manual, (1) Product CD with Driver, (1) U.S. Type B Plug Power Cord, (1) USB Cable, (2) 1 In Ribbon Takeup Cores
Model: CR1500, i7100
Warranty: 5 Years
