BradyPrinter S3100 Printer with Workstation Safety and Facility ID Software Suite: Pipe ID Kit
Product Highlight
Maximum Label/Tape Width:
4.25 in
Color Printing Capability:
Single Color
Maximum Labels per Day:
600
Stand Alone Printing:
PC connected & Stand-alone
Print Resolution:
300 dpi
Print Technology:
Thermal Transfer
Cut Options Available:
Cut at the end of print jobs, Cut between labels
Overview
Get everything you need for pipe marking projects with the BradyPrinter S3100 Sign & Label Printer and Brady Workstation Safety and Facility ID Software Suite: Pipemarking Kit.
- Save more than 13% when you purchase a kit instead of purchasing the products individually

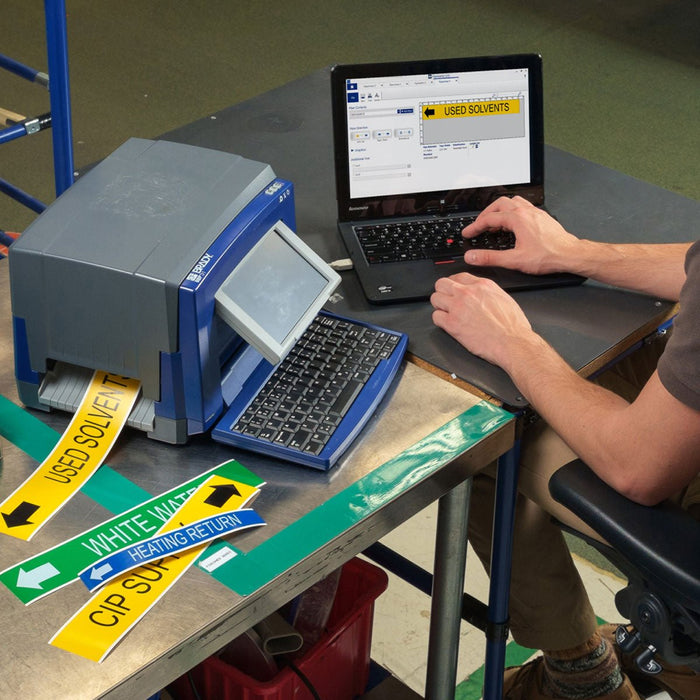

- The BradyPrinter S3100 with Wi-Fi connectivity is so easy to use, anyone in your facility can simply walk up, create and print right on the spot
- Easily create custom signs, labels and pipe markers with Safety and Facility ID Software Suite (included) to keep your facility safe and compliant

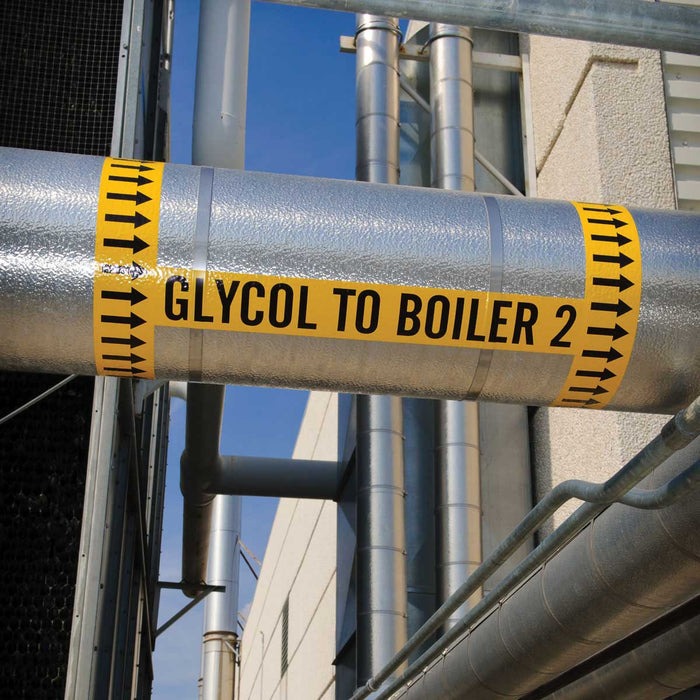

- This durable B-595 low-shrink vinyl material with ultra-aggressive adhesive is ideal for labeling pipes and withstands elements indoors and out
- Raised panel B-593 labels are designed for patch panel identification, external push-buttons, switches, and internal connection points
- Durable plastic tags are made from B-418 plastic that is lightweight, non-corrosive, non-conductive, and impact resistant
- Tough, smear-proof ribbon produces long-lasting printed text that can withstand years in industrial areas and outdoor conditions
- Setup is stress-free – Contact our Brady Technical Support Team and we will schedule a free phone setup appointment
Top Applications

General Identification
Directional marking, Equipment labeling

Hazardous Material
GHS labeling, Right-to-Know labeling, IMDG labeling

Safety
Arc flash, OSHA, Fire safety identification

Lean / 5S
Lock-out tags, Floor marking, Rack, Gauge & Parts bin labeling

Pipe Marker
Stainless steel, Ammonia refrigeration, ANSI certified
Specifications
Key Characteristics | ||
Product Number | 149585 | |
UPC | 754473607555 | |
Applications | Arc Flash Labels, Arrow Tape, Chemical Labeling, Cold-Temperature Labeling, Equipment Marking, Facility & Safety ID, Floor Marking, GHS & Chemical Labels, Glow in the Dark Labels, Hazardous Material Labeling, Lean/5S, Lockout Tagout Labeling, Machine Tool Labeling, Material Handling Labeling, Pipe & Valve Marking, Plant Maintenance Labeling, Safety & Compliance ID, Secondary Container Chemical Labeling, Visual Workplace Labeling | |
UOM | Kit | |
Trade Name | BradyPrinter S3100 | |
Brand Name | Brady® | |
Country of Origin | Malaysia | |
HTS Code (Harmonized Tariff Schedule) | 8443.32.1050 |
Dimensions | Dimensions | 9.5 in H x 12 in W x 10.25 in D |
Height | 9.5 in | |
Width | 12 in | |
Depth | 10.25 in | |
Display Size | 6.12 x 3.62 in | |
Weight | 20 lb |
Material Characteristics | Color | Blue, Gray |
Product Features | Application | Asset Tracking, Cold temperature Labeling, Component and Equipment Labeling, Electrical Labeling, Exit and Egress Marking, Facility Identification, Floor Marking, General Identification, Hazard Communication Identification, Lean and 5S Labeling, Lockout Tagout, Pipe and Valve Marking, Safety Identification, Temperature Indicating Labeling |
Built-In Label Wizards | Arc Flash, Custom Label, General Templates, GHS/CLP, Pipe Marker, PreMade Labels, Right-to-Know, Tags, WHMIS | |
Connectivity Options | Ethernet, USB, Wi-Fi | |
Cut Options Available | Cut at the end of print jobs, Cut between labels | |
Cutter Type | Auto Cutter | |
Display Type | Color LCD Touch Screen | |
Estimated Media Changeover Time | 20 seconds | |
Keyboard Type | Full-Size QWERTY | |
Media Sensor Type | Notch | |
Memory | 256 MB | |
Mode of Operation | Stand-Alone & PC Connect | |
Stand Alone Printing | PC connected & Stand-alone | |
Number of Symbols | 247 | |
Plug Type | US | |
Power Supply Voltage | 110 - 240 V | |
Auto Shut-Off / Power Conserve | Yes | |
Print Preview Feature? | Yes | |
Special Characters Quantity | 95 | |
Units | Inches, mm, Points | |
User Interface Type | Keyboard, Touch Screen | |
Supply Remaining Gauge | Yes |
Printing Specifications | Automatic Label Set Up | Yes |
Barcode Capability | Barcode Capable | |
Barcode Symbologies - 2D | More through Brady Workstation, PDF417, QR code | |
Barcode Symbologies - Linear | Code 128 Auto, Code 39, EAN-13, Interleaved 2 of 5, JAN-13, More through Brady WorkStation, UPC-A | |
Calibration Required? | No | |
Color Printing Capability | Single Color | |
Font Sizes | 4 - 250 pt | |
Font Styles | Arial, Arial 65, Courier New, Tahoma, Times New Roman | |
Maximum Labels per Day | 600 | |
Minimum Label Length | 0.5 in | |
Maximum Print Speed | 3 in/s | |
Print Resolution | 300 dpi | |
Print Technology | Thermal Transfer | |
Media Sensor Adjustment | Not Required | |
On Screen Indicators | Battery Life, Bluetooth Status, Data Reception, Error Messaging, Ethernet Status, Ribbon and label part number recognition, Ribbon Remaining, Supply Remaining, WiFi |
Compatibility | Compatible Media | B30-, B30C-, B30EP- |
Label Material Types | Magnetic Polyester, Metal-detectable Polyester, Metallic, Non-metal Polyester, Metallized Polyester, Paper, Phosphorescent Polyester, Polyester, Polyester with Polyester Overlaminate, Polyimide, Polyvinyl fluoride, Reflective Tape, Tamper-evident Metallized Polyester, Vinyl, Vinyl Cloth | |
Continuous & Die-Cut Materials Supported | Continuous and Die-cut | |
Custom Media Parts Available | No | |
Custom Labels Available | No | |
Maximum Label/Tape Width | 4.25 in | |
Maximum Print Width | 4 in | |
Maximum Printed Label Length | 5 ft | |
Maximum Liner Width | 4.33 in | |
Software Compatibility | Brady Workstation, Windows-based driver for 3rd party software use | |
Languages Available | Bulgarian, Chinese (Simplified), Chinese (Traditional), Croatian, Czech, Danish, Dutch, English (US), Estonian, Finnish, French (France), German, Hungarian, Italian, Korean, Norwegian, Polish, Portuguese (Portugal), Romanian, Russian, Slovak, Slovenian, Spanish (Spain), Swedish, Turkish |

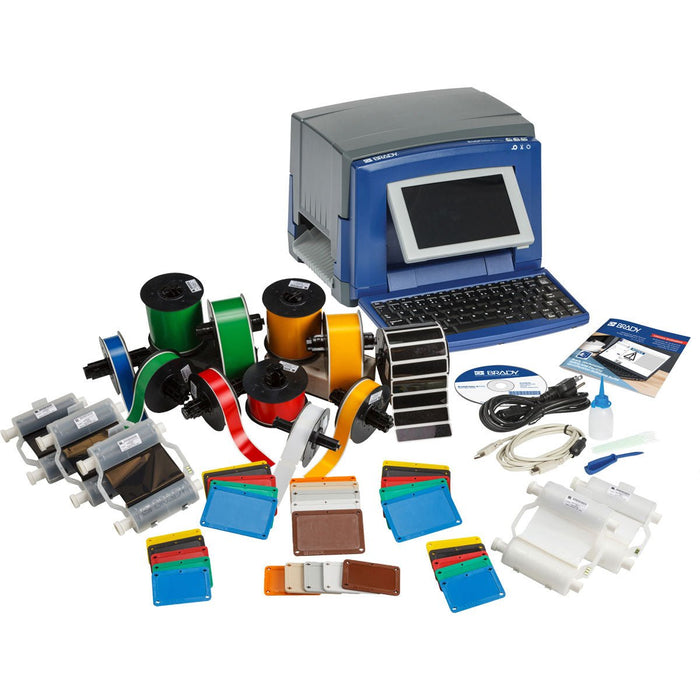

What's Included | Includes | (1) 1.125 In B-595 Blue Vinyl Label Roll (B30C-1125-595-BL), (1) 1.125 In B-595 Green Vinyl Label Roll (B30C-1125-595-GN), (1) 1.125 In B-595 Red Vinyl Label Roll (B30C-1125-595-RD), (1) 1.125 In B-595 Yellow Vinyl Label Roll (B30C-1125-595-YL), (1) 1.125x2.75 In B-595 White Vinyl Label Roll (B30-242-595-BLNKWT), (1) 1x4 In B-593 Black Raised Panel Label Roll (B30EP-174-5963-BK), (1) 2.25 In B-595 Green Vinyl Label Roll (B30C-2250-595-GN), (1) 2.25 In B-595 Red Vinyl Label Roll (B30C-2250-595-RD), (1) 2.25 In B-595 Yellow Vinyl Label Roll (B30C-2250-595-YL), (1) 4 In B-595 Green Vinyl Label Roll (B30C-4000-595-GN), (1) 4 In B-595 Yellow Vinyl Label Roll (B30C-4000-595-YL), (1) Blank Valve Tag Variety Pack (142133), (1) Brady Workstation Safety & Facility ID Suite Software (BWS-SFID-NA-EM), (1) BradyPrinter S3100-W Printer (S3100-W), (1) Cleaning Kit (PCK-6), (1) Cutter Cleaning Tool, (1) Documentation Holder, (1) Drivers CD, (1) Network Card, (1) Power Cord, (1) Quick Start Guide, (1) Stylus, (1) USB Cable, (2) White Print Ribbons (B30-R10000-WT), (3) Black Print Ribbons (B30-R10000) |
Warranty | 5 Years | |
Warranty (North America) | 5 Years |
Compliance | UNSPSC | 45101519 |
RoHS Compliance Status | Compliant with Directive 2011/65/EU and 2015/863 |
