BradyPrinter S3700 and Lockout Tagout Materials Kit for LINK360 Software

• Device Connectivity: Mobile device connected, PC connected, Stand-alone
• Maximum Label/Tape Width: 4 in
• Maximum Labels per Day: 600
• Print Resolution: 300 dpi
• Print Technology: Thermal Transfer
• Software Package: Safety & Facility ID

Product Number: 176490
UPC: 888434623800
UOM: Kit

Dimensions

Dimensions: 11 in H x 19 in W x 14.25 in D
Height: 11 in
Width: 19 in
Depth: 14.25 in
Display Size: 6.11 x 3.42 in
Weight: 36.9 lb

Material Characteristics

Colour: Blue, Gray

Product Features

Application: Barcode Labeling, Hazard Communication Identification, Lockout Tagout, Pipe and Valve Marking
Shipped With Battery: No
Built-In Label Wizards: Arc Flash, Circle Gauge, Custom Label, General Templates, GHS/CLP, Gradient Scale, Pipe Marker, PreMade Labels, Right-to-Know, Tags, WHMIS
Cut Options Available: Cut at the end of print jobs, Cut between labels
Cutter Type: XY Cutter and Auto Cutter
Device Connectivity: Mobile device connected, PC connected, Stand-alone
Display Type: Color LCD Touch Screen
Estimated Media Changeover Time: 20 seconds
Keyboard Type: QWERTY
Media Sensor Type: Notch
Memory: 512 MB
Number of Symbols: 664
On Screen Indicators: Bluetooth Status, Data Reception, Error Messaging, Ethernet Status, Ribbon and label part number recognition, Supply Remaining, WiFi
Plug Type: US
Power Supply Voltage: 110 - 240 V
Auto Shut-Off / Power Conserve: Yes
Print Preview Feature?: Yes
Special Characters Quantity: 95
Units: Inches, Millimeter, Points
User Interface Type: Keyboard, PC, Touch Screen
Operating System: Windows® 10, Windows® 11, Windows® 7, Windows® 8

Printing Specifications

Automatic Label Set Up: Yes
Barcode Symbologies - 2D: More through Brady WorkStation, PDF417, QR Code
Barcode Symbologies - Linear: Code 128, Code 39, EAN/JAN-13, Interleaved 2 of 5, More through Brady WorkStation, UPC-A
Calibration Required?: No
Color Printing Capability: Multi-Color
Font Sizes: 4 - 600 pt
Font Styles: Arial, Arial 65, Courier New, Tahoma, Times New Roman
Maximum Labels per Day: 600
Maximum Label/Tape Width: 4 in
Minimum Label Length: 0.5 in
Maximum Print Speed: 5 in/s
Maximum Printed Label Length: 8.3 ft
Print Resolution: 300 dpi
Print Technology: Thermal Transfer
Media Sensor Adjustment: Automatic Adjustment

Compatibility

Compatible Media: B30-, B30C-, B30EP-
Label Material Types: Heavy Duty Polyester, Magnetic Polyester, Metal-detectable Polyester, Metallic, Non-metal Polyester, Metallized Polyester, Paper, Phosphorescent Polyester, Polyester, Polyester with Polyester Overlaminate, Polyimide, Polyvinylfluoride, Reflective Tape, Tamper-evident Metallized Polyester, Transfer Tape, Vinyl, Vinyl Cloth
Materials Supported: Continuous, Die-cut
Maximum Print Width: 4 in
Software Compatibility: Brady LINK360®, Brady Workstation, Express Labels Mobile App, Software development kit, Windows based driver for 3rd party software use
Languages Available: Chinese (Simplified), Chinese (Traditional), Czech, Dutch, English (UK), English (US), French (Canada), French (France), German, Hindi, Italian, Japanese, Portuguese (Brazil), Portuguese (Portugal), Russian, Spanish (Mexico), Spanish (Spain), Thai, Vietnamese

What's Included

Software Package: Safety & Facility ID

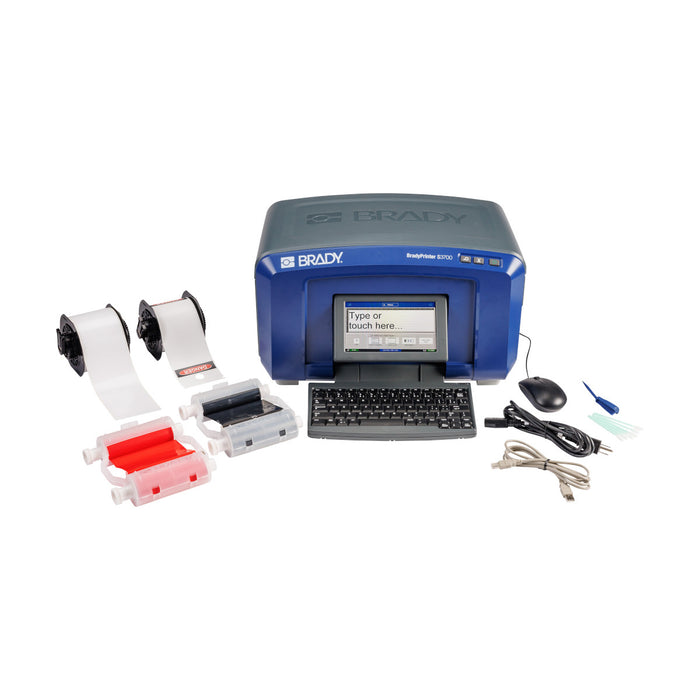

Includes: (1) 3" x 100 Ft White Outdoor Vinyl (B30C-3000-595-WT), (1) 3.25" x 5.75" OSHA DANGER Polyester Tags (B30-255-851-OSHADA), (1) 4.33" x 200 FT R10000 Black Printer Ribbon (B30-R10000), (1) 4.33" x 200 FT R10000 Red Printer Ribbon (B30-R10000-RD), (1) Brady Workstation Design & Print Essentials Insert - Safety and Facility ID Suite, (1) S3700 PRINTER QWERTY - NA, WIFI/BT (S3700-WB)
Model: S3700
Warranty: 5 Years
