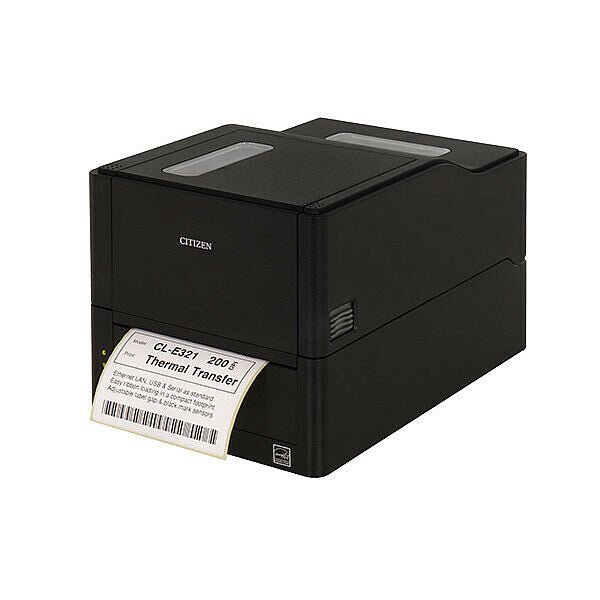

Citizen CL-E321, TT, 203 DPI, USB, Ethernet & SER, BK and Peeler

• Compact, stylish design with a small footprint
• Ethernet LAN, USB and Serial interfaces as standard
• Quick and easy ribbon change and media loading

Benefits

• Paper width: Variable paper width - 1 inch (25.4 mm) – 4.6 inches (118.1 mm)
• Paper load: Hi-Lift™ mechanism and ClickClose™ closure
• Printing Speed: Ultra fast print out - up to 200mm per second (8 inches per second)

• Media support: Large media capacity - holds rolls up to 5 inches (127 mm)
• Paper thickness: Paper thickness up to 0.150mm
• Case colour: Available in black or white

Media sensor:

• Adjustable media sensor
• Black mark sensor

Tear bar:

• Upper and lower tear bar

Specification

• Printing Technology: Thermal Transfer + Direct Thermal
• Resolution: 203 dpi
• Print Speed: 8 in/sec (200 mm/s)
• Print Width: 4 in (104 mm)
• Media Type: Roll or fanfold; die-cut, continuous, or perforated; inside/outside wound
• Media Width: 1 - 4.6 in (25 - 118 mm)
• Media Thickness: 63.5 - 190 μm
• Media Length: 0.25 - 100 in (6.35 - 2540 mm)
• Roll/Core Size: 5 in (125 mm) / 1 in (25 mm) core

Ribbon:

• 2.6 in (60 mm) max diameter
• 300 m length
• Ink side out (Wax, Wax/Resin, Resin)
• Mechanism: Clamshell, wide opening for easy loading
• Media Sensor: Adjustable gap and reflective black mark

Interfaces:

• USB 2.0
• RS-232
• 10/100 Ethernet
• Case: Hi-Open™ ABS with safe-close
• Control Panel: 1 LED, FEED key

Memory:

• Flash: 16 MB (4 MB user)
• RAM: 32 MB (4 MB user)

Cut Capacity:

• 300,000 (0.06-0.15 mm media)
• 100,000 (0.15-0.25 mm media)
• Tear Pause: Yes

Data Sheet
