Citizen CL-S400DT, DT, 120V, Ethernet & Roll Holder

Sleep and standby functions for energy efficiency

• Can accommodate extra size and thickness fanfold card paper media.
• Print speeds of up to six inches per second.

Benefits

• Paper width: Variable paper width - 0.5 inches (12.5 mm) – 4.6 inches (118.1 mm)
• Paper load: Front access for all operations including media and ribbon changing
• Printing Speed: Fast print out - 6 inches per second (150 mm per second)
• Display: Backlight LCD control panel for easy configuration

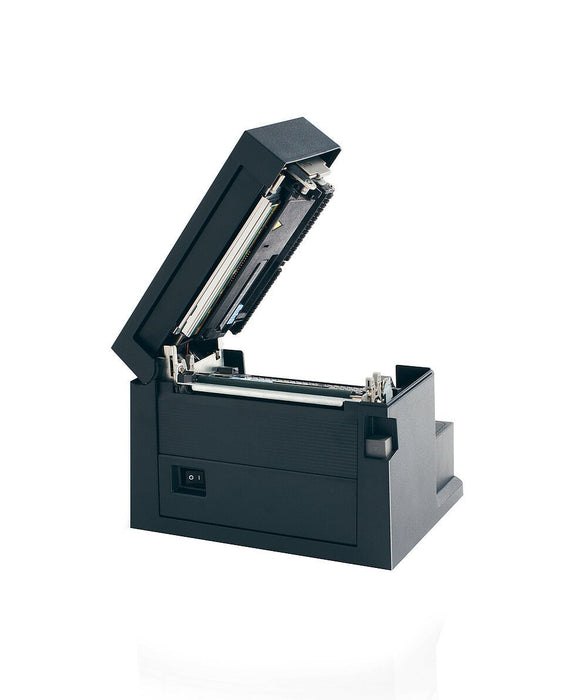

• Hi-Open™ case for vertical opening, no increase in footprint and safe closing.
• No more unreadable labels - the ARCP™ ribbon control technology assures clear prints.

Media sensor:

• Adjustable media sensor
• Black mark sensor
• Label gap sensor

Specification

• Printing Technology: Direct Thermal
• Resolution: 203 dpi
• Print Speed (Maximum): 6 inches per second (150 mm/s)
• Print Width (Maximum): 4 inches (104 mm)
• Media Type: Roll or fanfold media; die-cut, continuous or perforated labels, tags, tickets. Inside or outside wound
• Media Width (Min to Max): 0.5 - 4.6 inches (12.5 - 118 mm)
• Media Thickness (Min to Max): 63.5 to 254 µm
• Media Length (Min to Max): 0.25 to 32 inches (6.35 to 812.8 mm)
• Roll Size (Max) / Core Size: Inside diameter 5 inches (125 mm), external diameter 8 inches (200 mm), core size 1 inch (25 mm)
• Mechanism: Hi-Lift™ metal mechanism with wide opening head
• Media Sensor: Fully adjustable gap, notch, and reflective black mark sensors

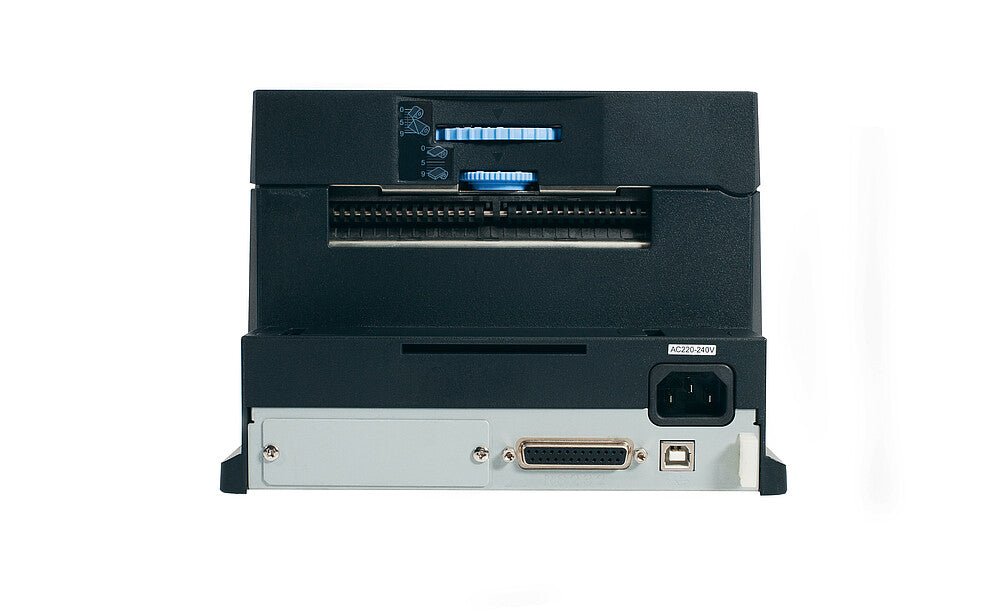

• Main Interface: Dual Interface Serial (RS-232C), USB (version 2.0, full speed)

Optional Interfaces:

• Wireless LAN 802.11b and 802.11g standards, 100 meters, 64/128 bit WEP, WPA, up to 54 Mbps
• Ethernet (10/100 BaseT)
• Parallel (IEEE 1284 compliant)
• Case: Hi-Open™ industrial ABS case with safe close

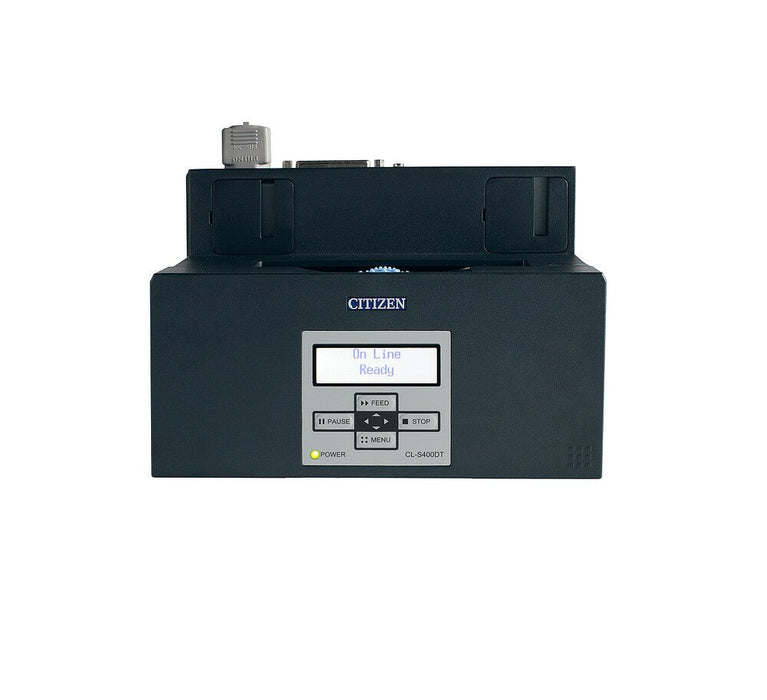

• Control Panel: 4 buttons, 16x2 LCD with 2-color backlight and sophisticated menu configuration system
• Flash (Non-Volatile Memory): 8 MB total, 1 MB available for user
• RAM (Standard Memory): 16 MB total, 1 MB available for user
• Cutter: Guillotine type, dealer installable
• Number of Cuts: 300,000 cuts on media 0.06-0.15 mm; 100,000 cuts on media 0.15-0.25 mm

Data Sheet
