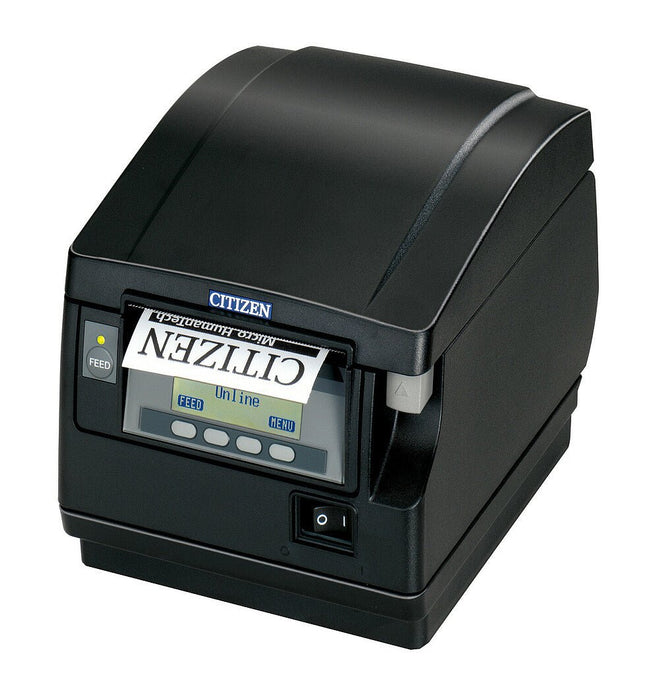

Citizen CT-S801III POS Printer

With a print speed of 500mm/sec, the CT-S801III originally set the standard for high speed POS printing and is still among the fastest machines in its class.  Offering a top paper exit for retail applications, the CT-S801III has an advanced, two-color backlit LCD, ensuring quick setup and total control of all print functions.  Full error checking, with simple messages and on-screen help make operation fast and efficient - a benefit that is extended still further through features such as a soft-close cover and the self-retracting snap-in cutter.

• High contrast LCD display
• Integrated power supply
• Choice of paper widths

Benefits

• Easy customisation by software
• Barcode printing
• Cash drawer connection
• Case colour: Black
• Energy:

• Media sensor:

• Paper exit: Top exit - ideal for all retail applications
• Paper width: Variable paper width - 58, 60, 80 and 82.5 mm
• Paper load: Quick and easy media changing - drop-in paper loading
• Printing Speed:

• Display: LCD display for easy configuration and operation
• Low space requirement - integrated power supply enables clean work station
• Mobile-POS ready
• Easy notification - built-in buzzer
• Page mode

Specification

• Printing Technology: Direct Thermal
• Resolution: 203 dpi
• Print Speed (Maximum): 500mm/sec
• Print Width (Maximum): 80 mm
• Media Type: Thermal receipt paper
• Media Width (Min to Max): 58 / 60 / 80 / 82.5 mm
• Media Thickness (Min to Max): 65 to 75 μm or 75 to 85 μm
• Roll Size (Max), Core Size: 83 mm outside diameter

Paper Types:

• Mitsubishi Paper Mills P220AG normal type 65
• Mitsubishi Paper Mills P220A
• Mitsubishi Paper Mills HP220AB-1 highly conserved type 75
• Mitsubishi Paper Mills F230AA normal type 65
• Mitsubishi Paper Mills P220AB normal type 85
• Mitsubishi Paper Mills PB670 (2 color paper)
• Oji Paper PD150R normal type 75
• Oji Paper PD160R high storage type 65/75
• Nippon Paper TF50KS-E-2D

Number of Columns:

• On 58mm paper up to 35 digits (12 x 24 font A)
• On 58mm paper up to 46 digits (9 x 17 font B)
• On 58mm paper up to 52 digits (8 x 16 font C)
• On 80mm paper up to 48 digits (12 x 24 font A)
• On 80mm paper up to 64 digits (9 x 17 font B)
• On 80mm paper up to 72 digits (8 x 16 font C)
• On 82.5mm paper up to 53 digits (12 x 24 font A)
• On 82.5mm paper up to 71 digits (9 x 17 font B)
• On 82.5mm paper up to 80 digits (8 x 16 font C)

Line Spacing: 4.23mm (1/6 inch); adjustable by user command

• Main Interface: USB 2.0 full speed

Optional Interfaces:

• Serial (RS-232C compliant)
• Ethernet + USB host
• Powered USB
• Ethernet
• Bluetooth with Apple™ MFi compatibility
• Parallel (IEEE 1284 compliant)
• USB with hub

• Input Buffer: 4K bytes / 45 bytes
• Cutter: Guillotine type, full and partial
• Drawer Kick-out: 2 Drawers
• Power Supply: 110 - 240 V, 50/60 Hz
• Reliability: 200 million pulses or 150 km, 2 million cuts
• Operation Environment: +5 to +45°C, 10% - 90% RH, non-condensing
• Storage Environment: -20 to +60°C (10% to 90% RH, non-condensing)

Data Sheet
