Extra Bases for Push Button Lockouts

Free shipping for orders above $300

Fill this form for bulk purchase options
Original price $35.99 - Original price $35.99
Original price
$35.99
$35.99 - $35.99
Current price $35.99
Button Size: 16.00 MM

Overview

One-time installation of a low profile base enables fast and convenient lockout of ON/OFF and engaged emergency stop controls at the point of need (covers sold separately).

  • Personnel can apply portable safety covers (sold separately) to any installed base

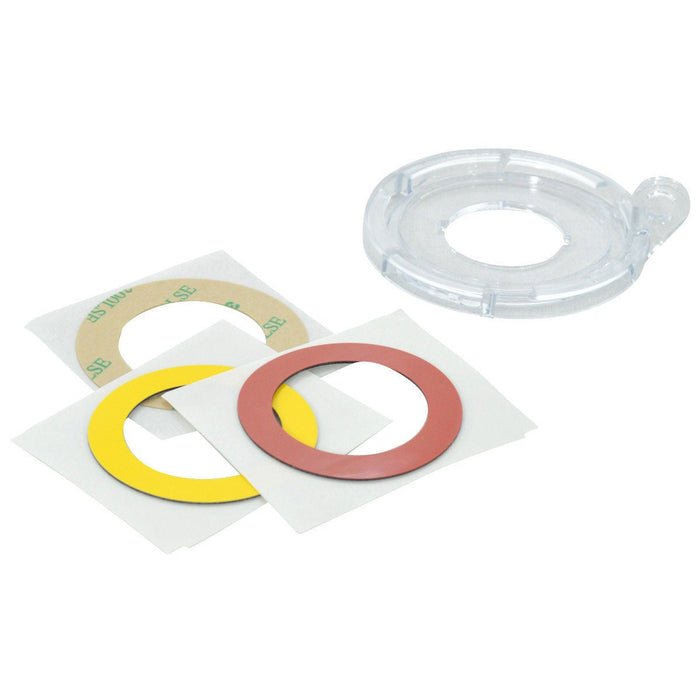

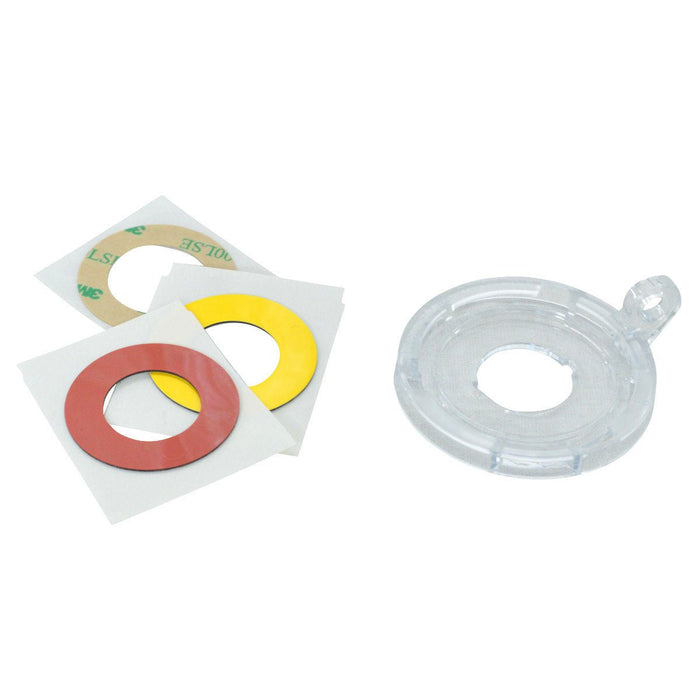

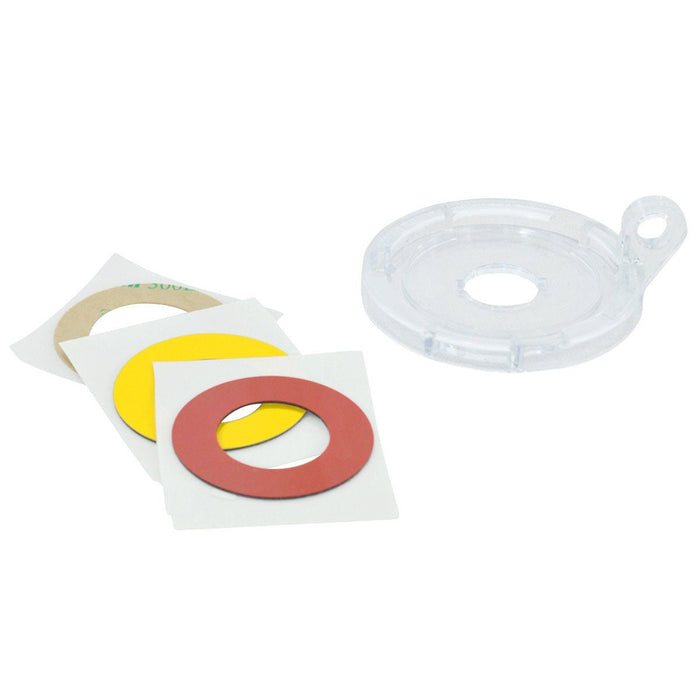

  • Item includes five extra bases, each of which is supplied with one yellow and one red label
  • Use these extra bases to supplement the safety covers from Brady®
  • Safety covers and bases quickly and efficiently secure facility production and operating equipment at the point of need

Specifications

Key Characteristics

Catalog Page # 86
Product Number130822
UPC754473810979
UOMPack of 5 Each
Brand NameBrady®
Country of Origin China
HTS Code (Harmonized Tariff Schedule) 3926.90.9985
ECCN (Export Commodity Control Number) EAR99

Dimensions

Dimensions2.906 in Dia
Height0.3 in
Width2.5 in
Depth2.5 in
Diameter2.906 in
Button Size16.00 mm
Hole Inside Diameter0.669 in

Material Characteristics

Material Number LOTO-72 (View Technical Data Sheet)
Material Polycarbonate
Lockout MaterialPolycarbonate
ColorClear
Lockout ColorClear
Service Temperature Range °F-4 °F - 176 °F
Minimum Service Temperature °F-4 °F
Maximum Service Temperature °F176 °F

Product Features

Application Lockout Tagout
Maximum Number of Padlocks 1
Risk Type Electrical Risk, Mechanical Risk

Compatibility

Maximum Shackle Diameter0.32 in

What's Included

Includes(1) Adhesive Backing, (1) Base, (1) Red Label, (1) Yellow Label

Compliance

UNSPSC 39121908
RoHS Compliance StatusNot applicable to this product
