Dimensions
Dimensions: 9.5 in H x 9 in W x 13 in D
Height: 9.5 in
Width: 9 in
Depth: 13 in
Display Size: 7 in
Weight: 12.9 lb
Material Characteristics
Colour: Blue, Gray
Product Features
Application: Access Control, All-Purpose, Asset Tracking, Barcode Labeling, Circuit Board Labeling, Cold temperature Labeling, Component and Equipment Labeling, Data and Telecommunications Labeling, Electrical Labeling, Equipment, Exit and Egress Marking, Facility Identification, Floor Marking, Food and Beverage Process Labeling, Food Handling, General Identification, GHS & Chemical Labels, Hazard Communication Identification, Hazardous Material Labeling, Inspection Tagging, Inventory and Inspection Labeling, Laboratory Labeling, Lean and 5S Labeling, Lockout Tagout, Machinery, Maintenance, Pipe and Valve Marking, Safety Identification, Security Identification, Solar Panel Labeling, Tamper Indicating Labels, Temperature Indicating Labeling, Temporary Labeling, Traffic Control, Warehouse Marking, Wire and Cable Labeling
Shipped With Battery: Yes
How Is Battery Shipped: Shipped installed in equipment
Built-In Label Wizards: No
Cut Options Available: Cut at the end of print jobs, Cut between labels, Full Cut
Cutter Type: Auto Cutter
Device Connectivity: Mobile device connected, PC connected, Stand-alone
Display Type: Color LCD Touch Screen
Estimated Media Changeover Time: 15 seconds for media roll, 5 seconds for ribbon
Keyboard Type: None
Memory: 1GB RAM, 8GB Flash
Number of Symbols: See Brady Workstation Software
On Screen Indicators: Bluetooth Status, Data Reception, Digital Clock, Error Messaging, Ribbon and label part number recognition, Ribbon Remaining, Supply Remaining, USB Connection, WiFi
Power Supply Voltage: 14.8 V
Auto Shut-Off / Power Conserve: Yes
Print Preview Feature?: Yes
Units: Inches, Millimeter, Points
User Interface Type: Mobile device, PC, Touch Screen

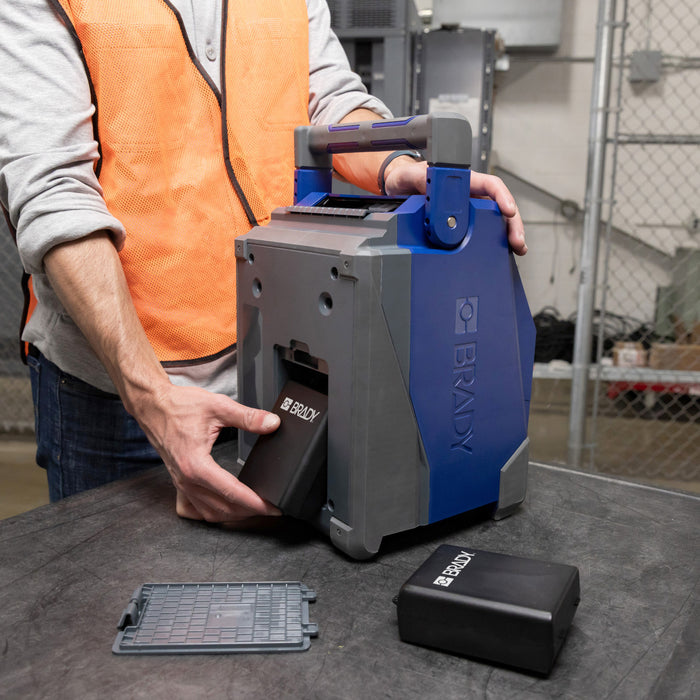

Battery Type: Rechargeable Lithium-ion Battery
Operating System: Windows® 10, Windows® 11, Windows® 7, Windows® 8, Windows® Server 2012, Windows® Server 2012 R2, Windows® Server 2016
Printing Specifications
Automatic Label Set Up: Yes
Barcode Symbologies - 2D: Aztec, Data Matrix, MicroPDF417, PDF417, QR Code
Calibration Required?: No
Color Printing Capability: Single Color
Font Sizes: 4 - 250 pt
Font Styles: 85 font options through Brady Workstation Express Labels, Arial, Times New Roman
Maximum Labels per Day: 5000
Maximum Label/Tape Width: 4.25 in
Maximum Print Speed: 4 in/s
Minimum Label Length: 0.25 in
Maximum Printed Label Length: 5 ft
Print Resolution: 300 dpi
Print Technology: Thermal Transfer
Media Sensor Adjustment: Automatic Adjustment
Compatibility
Compatible Media: B30-, B30C-, B30EP-, B33-, B33C-, B33D-, B33FP-, B33FT-, B33R-
Label Material Types: FreezerBondz™ Polyester, Heat-shrink Polyolefin, High Temperature Heat-shrink Polyvinylidene Fluoride Sleeve, Magnetic Polyester, Metal-detectable Polyester, Metallic, Non-metal Polyester, Metallized Polyester, Metallized Polyester with Polyester Overlaminate, Nylon Cloth, Paper, Phosphorescent Polyester, Polyester, Polyester with Polyester Overlaminate, Polyimide, Polyolefin, Polypropylene, Polyvinylfluoride, Reflective Tape, Self-laminating Polyester, Self-laminating Vinyl, StainerBondz™ Polyester, Static Dissipative Polyester, Tamper-evident Metallized Polyester, Vinyl, Vinyl Cloth
Materials Supported: Continuous, Custom, Die-cut
Custom Labels Available: Yes
Maximum Print Width: 4.015 in
Software Compatibility: Brady LINK360®, Brady Workstation, Express Labels Mobile App, Software development kit, Windows based driver for 3rd party software use
What's Included
Warranty: 5 Years
