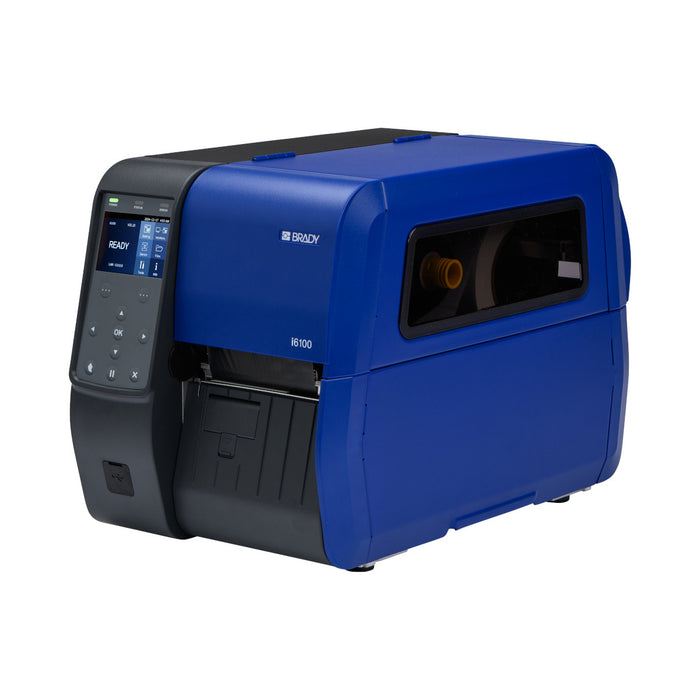

i6100 Industrial Desktop Label Printer

• Maximum Label/Tape Width: 4.488 in
• Maximum Labels per Day: 4000
• Print Resolution: 300 dpi
• Print Technology: Direct Thermal, Thermal Transfer
• Device Connectivity: PC connected & Stand-alone
• Color Printing Capability: Single Color

Dimensions

Dimensions: 12.76 in H x 10.591 in W x 19.291 in D
Height: 12.76 in
Width: 10.591 in
Depth: 19.291 in
Core Diameter: 3 in
Display Size: 3.5 in
Weight: 30.82 lb

Material Characteristics

Colour: Blue, Gray

Product Features

Application: Barcode Labeling, Component and Equipment Labeling, Data and Telecommunications Labeling, Electrical Labeling, General Identification, Inventory and Inspection Labeling, Laboratory Labeling, Wire and Cable Labeling

Shipped With Battery: Yes
How Is Battery Shipped: Shipped installed in equipment
Built-In Label Wizards: No
Connectivity Options: Ethernet, RS232, USB 2.0, USB Host
Cut Options Available: Auto Cutter accessory available
Cutter Type: None
Device Connectivity: PC connected & Stand-alone
Display Type: Color LCD Screen
Estimated Media Changeover Time: 40 seconds
Keyboard Type: None
Media Sensor Type: Black Mark, Gap Sensor, Head Open, Notch, Reflective Sensor, Ribbon End, See-through
Memory: 512 MB SDRAM, 512 MB Flash
On Screen Indicators: Digital Clock, Error Messaging, Ethernet Status, Ready State
Power Supply Voltage: 100 - 240 V @ 50 - 60 Hz
Print Preview Feature?: No
Units: Inches, Millimeter, Points
User Interface Type: Buttons, PC
Battery Type: Internal, not removable, Lithium-manganese Battery
Operating System: Windows® 10, Windows® 11, Windows® Server 2019, Windows® Server 2022

Printing Specifications

Automatic Label Set Up: No
Barcode Symbologies - 2D: Aztec, Codablock, Code 49, Composite Codes, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code
Barcode Symbologies - Linear: Codabar (NW-7), Code 11, Code 128, Code 39, Code 93, EAN/JAN-13, EAN/JAN-8, EAN/UPC, GS1 DataBar, Intelligent Mail Barcode (IMb), Interleaved 2 of 5, MSI Plessey, POSTNET, Standard 2 of 5 (Industrial/IATA), Supports 1D/Linear barcodes, UPC-A, UPC-E
Calibration Required?: Yes
Color Printing Capability: Single Color
Font Styles: Determined by software
Maximum Labels per Day: 4000
Maximum Label/Tape Width: 4.488 in
Maximum Print Speed: 10 in/s
Minimum Label Length: 0.187 in
Maximum Printed Label Length: 8.2 ft
Print Resolution: 300 dpi
Print Technology: Direct Thermal, Thermal Transfer
Media Sensor Adjustment: Yes

Compatibility

Compatible Media: 2HT-, 3HT-, APL-, DR-, DT-, HX-, LSZH-, PS-, THT-, THTEL-, XTHT-, ZH-

Label Material Types: Direct Thermal Paper, FreezerBondz™ Polyester, Heat-shrink Polyolefin, Metallic, Non-metal Polyester, Metallized Polyester, Metallized Polyester with Polyester Overlaminate, Nylon Cloth, Paper, Polyester, Polyimide, Polyolefin, Repositionable Paper, Self-laminating Polyester, Self-laminating Vinyl, StainerBondz™ Polyester, Static Dissipative Polyester, Tamper-evident Metallized Polyester, Tamper-evident Polyester, Vinyl, Vinyl Cloth, Water Dissolvable Paper, Water-indicating Polyester/Paper Laminate

Custom Labels Available: Yes
Maximum Print Width: 4.161 in
Software Compatibility: Brady Workstation, Windows based driver for 3rd party software use

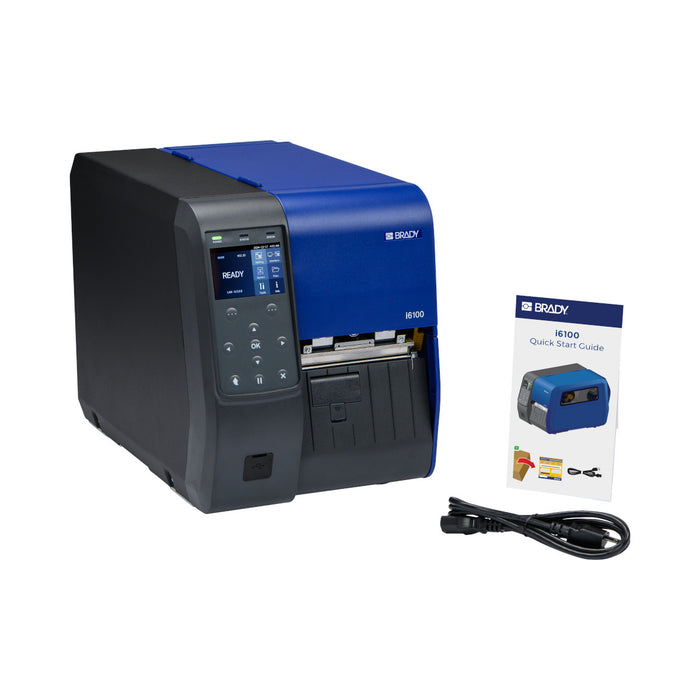

What's Included

Model: i6100
Warranty: 5 Years

Product Sheet
