LINK360 Safety Software with BradyPrinter S3100 Printer and Lockout Tagout Materials Kit

• Device Connectivity: PC connected & Stand-alone
• Maximum Label/Tape Width: 4.25 in
• Maximum Labels per Day: 600
• Print Resolution: 300 dpi
• Print Technology: Thermal Transfer
• Software Package: LINK360® Starter Bundle

Product Number: 176488
UPC: 888434623787
UOM: Kit
Trade Name: BradyPrinter S3100
Brand Name: Brady®

Dimensions

Dimensions: 9.5 in H x 12 in W x 10.25 in D
Height: 9.5 in
Width: 12 in
Depth: 10.25 in
Display Size: 6.12 x 3.62 in
Weight: 13.6 lb

Material Characteristics

Colour: Blue, Gray

Product Features

Application: Barcode Labeling, Hazard Communication Identification, Lockout Tagout, Pipe and Valve Marking
Built-In Label Wizards: Arc Flash, Custom Label, General Templates, GHS/CLP, Pipe Marker, PreMade Labels, Right-to-Know, Tags, WHMIS
Connectivity Options: Ethernet, USB
Cut Options Available: Cut at the end of print jobs, Cut between labels
Cutter Type: Auto Cutter
Device Connectivity: PC connected & Stand-alone
Display Type: Color LCD Touch Screen
Estimated Media Changeover Time: 20 seconds
Keyboard Type: QWERTY
Media Sensor Type: Notch
Memory: 256 MB
Number of Symbols: See Brady Workstation Software
On Screen Indicators: Battery Life, Bluetooth Status, Data Reception, Error Messaging, Ethernet Status, Ribbon and label part number recognition, Ribbon Remaining, Supply Remaining, WiFi
Plug Type: US
Power Supply Voltage: 110 - 240 V
Auto Shut-Off / Power Conserve: Yes
Print Preview Feature?: Yes
Special Characters Quantity: 95
Units: Inches, Millimeter, Points
User Interface Type: Keyboard, Touch Screen
Operating System: Windows® 10, Windows® 11, Windows® 7, Windows® 8

Printing Specifications

Automatic Label Set Up: Yes
Barcode Symbologies - 2D: More through Brady WorkStation, PDF417, QR Code
Barcode Symbologies - Linear: Code 128, Code 39, EAN/JAN-13, Interleaved 2 of 5, More through Brady WorkStation, UPC-A
Calibration Required?: No
Color Printing Capability: Single Color
Font Sizes: 4 - 250 pt
Font Styles: Arial, Arial 65, Courier New, Tahoma, Times New Roman
Maximum Labels per Day: 600
Maximum Label/Tape Width: 4.25 in
Maximum Print Speed: 3 in/s
Minimum Label Length: 0.5 in
Maximum Printed Label Length: 5 ft
Print Resolution: 300 dpi
Print Technology: Thermal Transfer
Media Sensor Adjustment: Not Required

Compatibility

Compatible Media: B30-, B30C-, B30EP-
Label Material Types: Magnetic Polyester, Metal-detectable Polyester, Metallic, Non-metal Polyester, Metallized Polyester, Paper, Phosphorescent Polyester, Polyester, Polyester with Polyester Overlaminate, Polyimide, Polyvinylfluoride, Reflective Tape, Tamper-evident Metallized Polyester, Vinyl, Vinyl Cloth
Materials Supported: Continuous, Die-cut
Custom Labels Available: No
Maximum Print Width: 4.015 in
Software Compatibility: Brady LINK360®, Brady Workstation, Windows based driver for 3rd party software use
Languages Available: Chinese (Simplified), Chinese (Traditional), Czech, Dutch, English (UK), English (US), French (Canada), French (France), German, Hindi, Italian, Japanese, Portuguese (Brazil), Portuguese (Portugal), Russian, Spanish (Mexico), Spanish (Spain), Thai, Vietnamese

What's Included

Software Package: LINK360® Starter Bundle

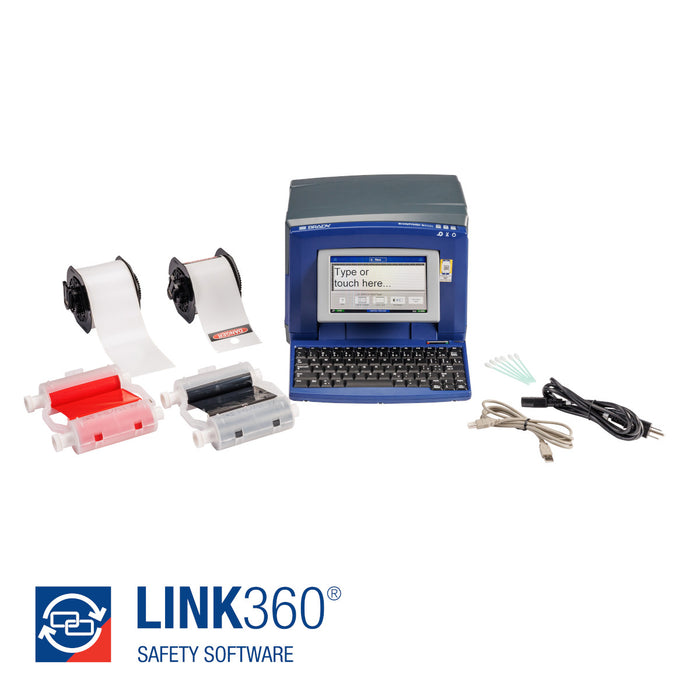

Includes: (1) 3" x 100 Ft White Outdoor Vinyl (B30C-3000-595-WT), (1) 3.25" x 5.75" OSHA DANGER Polyester Tags (B30-255-851-OSHADA), (1) 4.33" x 200 FT R10000 Black Printer Ribbon (B30-R10000), (1) 4.33" x 200 FT R10000 Black Printer Ribbon (B30-R10000-RD), (1) Brady Workstation Design & Print Essentials Insert, (1) LINK360® Starter Bundle (LINK360START), (1) S3100 Sign and Label WIFI Printer (S3100-W)
Warranty: 5 Years
