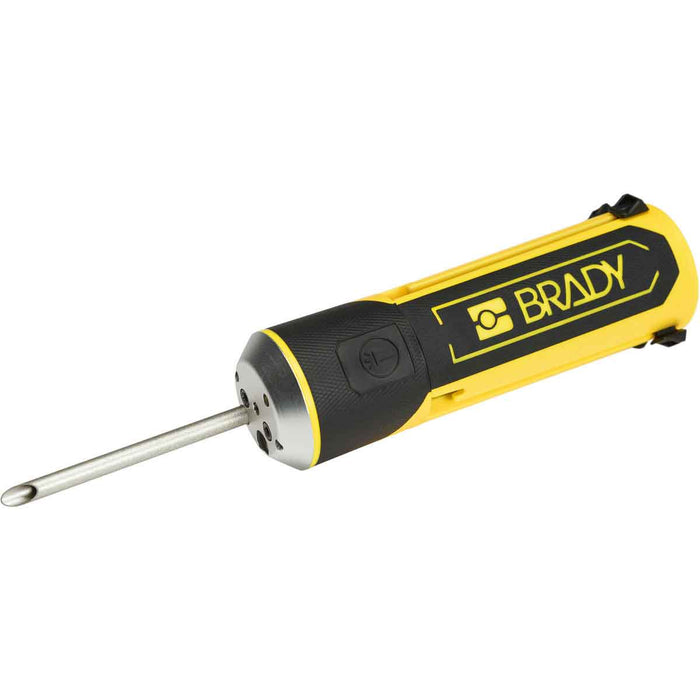

QuickSleeve Handheld Sleeve Applicator
Product Highlight
Dimensions:
4.77 in H x 1.35 in Dia
Color:
Black, Yellow
Overview
The QuickSleeve Handheld Sleeve Applicator is an intuitive multi-tool that is designed to help you quickly apply sleeves on to wires.
- Save time and money with increased sleeve application output
- Complete label application and wire termination with the four slanted tubes and terminal block-sized screwdriver
- See easily in low-lit conditions using the built-in LED flashlight
- Comfortable for all-day use with an ergonomic design
- Compatible with 0.094 in., 0.125 in., 0.187 in., and 0.250 in. size sleeves from Brady
Top Applications

Rating & Name Plate
Durable finished goods, High quality barcode images and text, UL certification

DataCom
Self-Lams, Flag labels, Patch-panel and Face Plate labeling

Electrical
Sleeves, Self-Lams, Wire Wraps, Cable Markers, Flag & Raised Panel Labels

Wire and Cable
Sleeves, Self-Lams, Wire Wraps, Flag Labels, Cable Markers
Specifications
Key Characteristics | ||
Product Number | 149474 | |
UPC | 754473605612 | |
UOM | Each | |
Trade Name | QuickSleeve | |
Brand Name | Brady® | |
Country of Origin | China | |
HTS Code (Harmonized Tariff Schedule) | 8205.59.8000 | |
ECCN (Export Commodity Control Number) | EAR99 |
Dimensions | Dimensions | 4.77 in H x 1.35 in Dia |
Height | 4.77 in | |
Width | 1.35 in | |
Diameter | 1.35 in |
Material Characteristics | Color | Black, Yellow |
Product Features | Application | Wire and Cable Labeling |
Desktop Accessory Type | Media Handling Accessories |
Compliance | UNSPSC | 24122006 |
Patent Number(s) | 10569399 | |
Patent Valid in (Countries) | USA | |
RoHS Compliance Status | Compliant with Directive 2011/65/EU and 2015/863 |
