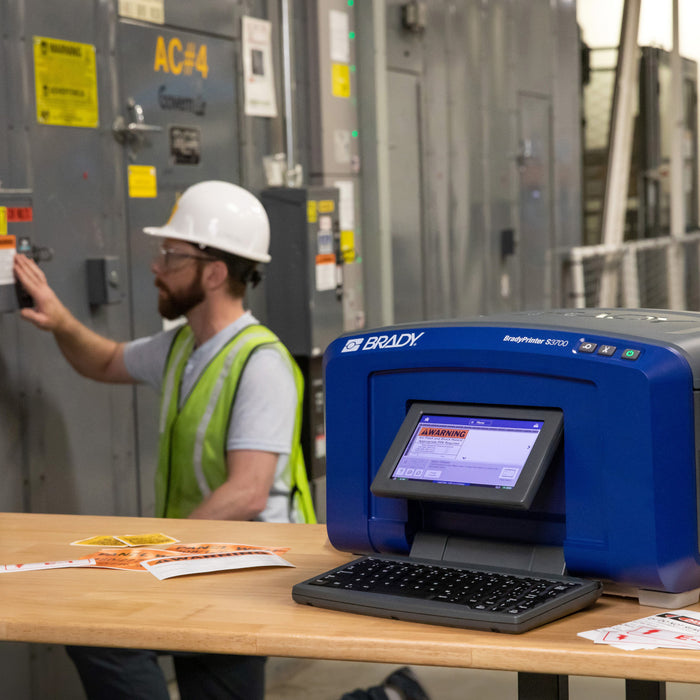

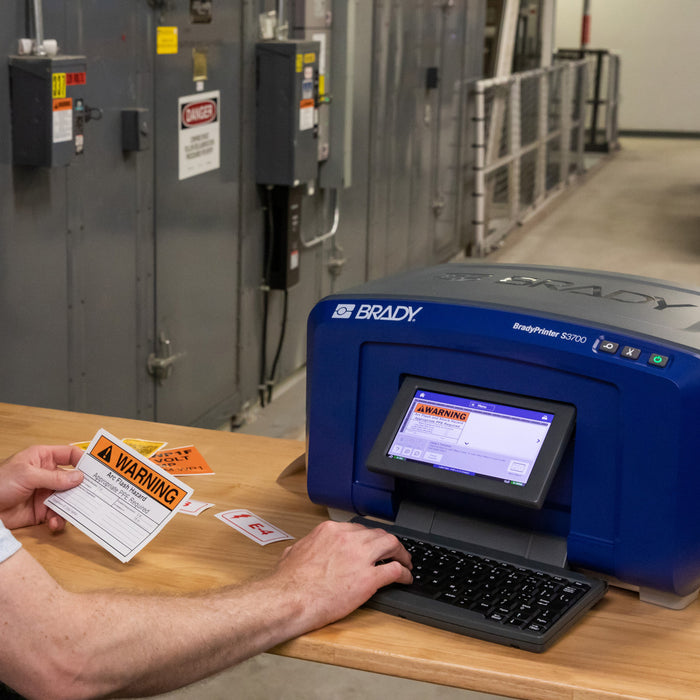

S3700 Arc Flash Label and Printer Kit with Software

• Color Printing Capability: Multi-Color
• Device Connectivity: Mobile device connected, PC connected, Stand-alone
• Maximum Label/Tape Width: 4 in
• Maximum Labels per Day: 600
• Print Resolution: 300 dpi
• Print Technology: Thermal Transfer
• Software Package: Safety & Facility ID

Product Number: 176872
UPC: 888434627464
UOM: Kit

Dimensions

Dimensions: 11 in H x 19 in W x 14.25 in D
Height: 11 in
Width: 19 in
Depth: 14.25 in
Display Size: 6.11 x 3.42 in
Weight: 36.9 lb

Material Characteristics

Colour: Blue, Gray

Product Features

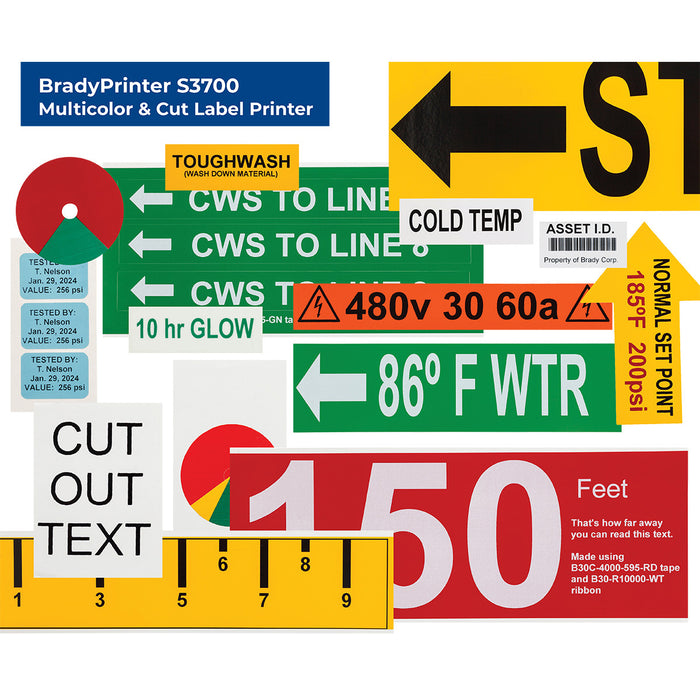

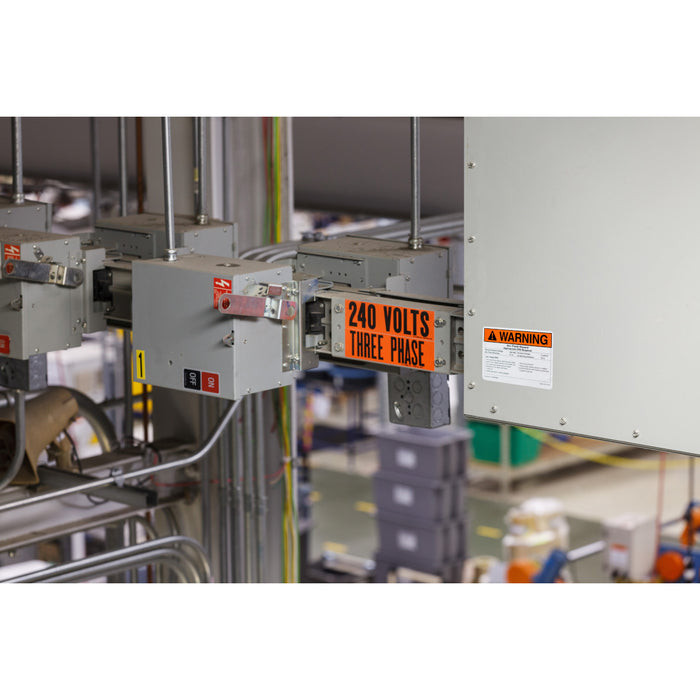

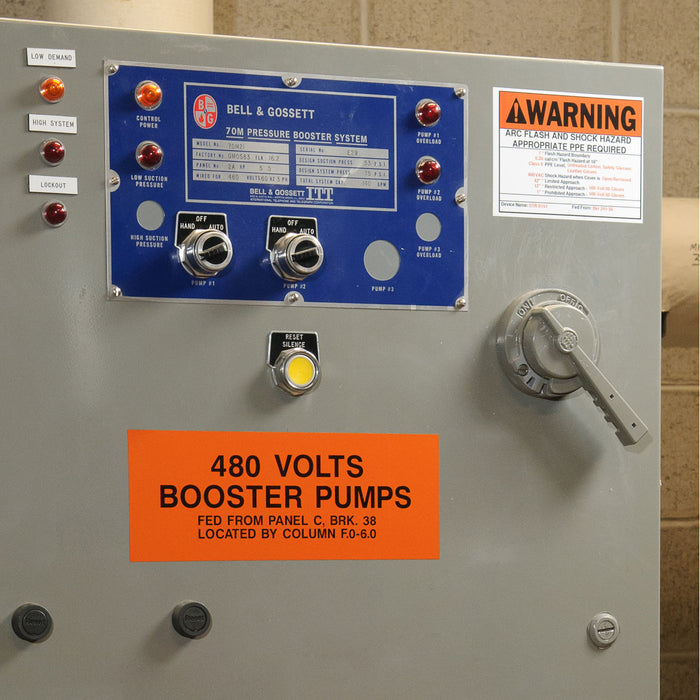

Application: Asset Tracking, Barcode Labeling, Cold temperature Labeling, Component and Equipment Labeling, Electrical Labeling, Exit and Egress Marking, Facility Identification, Food and Beverage Process Labeling, General Identification, Hazard Communication Identification, Healthcare and Hospital Labeling, Inventory and Inspection Labeling, Lean and 5S Labeling, Pipe and Valve Marking, Safety Identification, Security Identification, Temperature Indicating Labeling, Warehouse Marking
Shipped With Battery: No
Built-In Label Wizards: Arc Flash, Circle Gauge, Custom Label, General Templates, GHS/CLP, Gradient Scale, Pipe Marker, PreMade Labels, Right-to-Know, Tags, WHMIS
Cut Options Available: Cut at the end of print jobs, Cut between labels
Cutter Type: XY Cutter and Auto Cutter
Device Connectivity: Mobile device connected, PC connected, Stand-alone
Display Type: Color LCD Touch Screen
Estimated Media Changeover Time: 20 seconds
Keyboard Type: QWERTZ
Media Sensor Type: Notch
Memory: 512 MB
Number of Symbols: 664
On Screen Indicators: Bluetooth Status, Data Reception, Error Messaging, Ethernet Status, Ribbon and label part number recognition, Supply Remaining, WiFi
Plug Type: US
Power Supply Voltage: 110 - 240 V
Auto Shut-Off / Power Conserve: Yes
Print Preview Feature?: Yes
Special Characters Quantity: 95
Units: Inches, Millimeter, Points
User Interface Type: Keyboard, Mobile device, PC, Touch Screen

Printing Specifications

Automatic Label Set Up: Yes
Barcode Symbologies - 2D: More through Brady WorkStation, PDF417, QR Code
Barcode Symbologies - Linear: Code 128, Code 39, EAN/JAN-13, Interleaved 2 of 5, More through Brady WorkStation, UPC-A
Calibration Required?: No
Color Printing Capability: Multi-Color
Font Sizes: 4 - 600 pt
Font Styles: Arial, Arial 65, Courier New, See Brady Workstation, Tahoma, Times New Roman, Trebuchet MS, Verdana
Maximum Labels per Day: 600
Maximum Label/Tape Width: 4 in
Minimum Label Length: 0.5 in
Maximum Print Speed: 5 in/s
Maximum Printed Label Length: 8.3 ft
Print Resolution: 300 dpi
Print Technology: Thermal Transfer
Media Sensor Adjustment: Automatic Adjustment

Compatibility

Compatible Media: B30-, B30C-, B30EP-
Label Material Types: Heavy Duty Polyester, Magnetic Polyester, Metal-detectable Polyester, Metallic, Non-metal Polyester, Metallized Polyester, Paper, Phosphorescent Polyester, Polyester, Polyester with Polyester Overlaminate, Polyimide, Polyvinylfluoride, Reflective Tape, Tamper-evident Metallized Polyester, Transfer Tape, Vinyl, Vinyl Cloth
Materials Supported: Continuous, Die-cut
Maximum Print Width: 4 in
Software Compatibility: Brady Workstation, Express Labels Mobile App, Software development kit, Windows based driver for 3rd party software use
Languages Available: Bahasa (Indonesian), Bahasa Malay, Bulgarian, Chinese (Traditional and Simplified), Croatian, Czech, Danish, Dutch, English (US), Estonian, Finnish, French (France), German, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Portugal), Romanian, Russian, Slovak, Slovenian, Spanish (Spain), Swedish, Thai, Turkish, Vietnamese

What's Included

Software Package: Safety & Facility ID

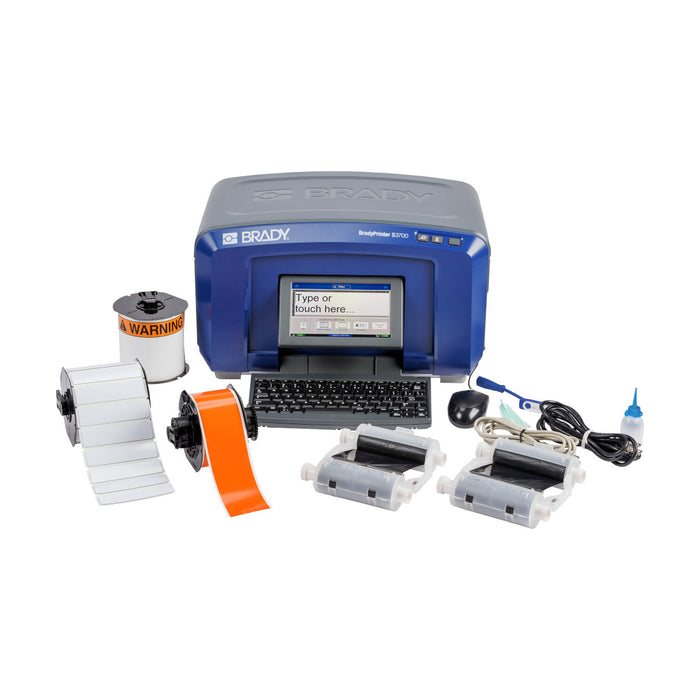

Includes: (1) 2.25" Continuous Orange Vinyl Label (B30C-2250-595-OR), (1) ANSI WARNING Vinyl Labels (B30-25-595-ANSIWA), (1) Brady Workstation Design & Print Essentials Insert - Safety and Facility ID Suite, (1) Cleaning Kit (PCK-6), (1) Mouse, (1) Power Cord, (1) Quick Start Guide, (1) Raised Panel Polyester Labels (B30EP-174-593-WT), (1) S3700 Safety and Facility Printer (S3700-WB), (1) USB Flash Drive, (2) Black Ribbon Cartridges (B30-R10000)
Model: S3700
Warranty: 5 Years

Product Sheet
