TAGLOCK 120V Snap-On Breaker Lockout

Got questions about your order?
Chat with us now!

Request a quote for bulk purchase
Original price $8.00 - Original price $290.00
Original price
$8.00
$8.00 - $290.00
Current price $8.00

Product Highlights:

Circuit Breaker Lockout Type:

Single-pole

Voltage:

120 V

Dimensions:

1.006 in H x 2.696 in W x 0.62 in D

Risk Type:

Electrical Risk

Color:

Red

Maximum Number of Padlocks:

1

Overview

TAGLOCK Circuit Breaker Securing Devices from Brady® allow up to four workers to individually tag and secure each circuit breaker with standard nylon cable ties.

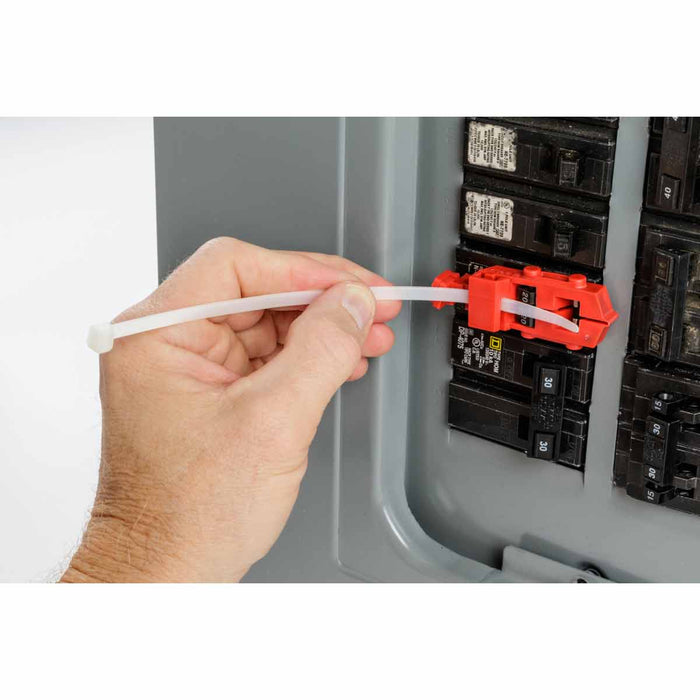

  • Easily secure onto the breaker with nylon cable tie and worker’s ID tag, no lock needed
  • ID tags can be pre-loaded onto TagLock devices, which are then quickly secured to the designated remote energy control lockout points
  • Designed for snap-on installation on 120V circuit breakers that have holes in the switch tongue

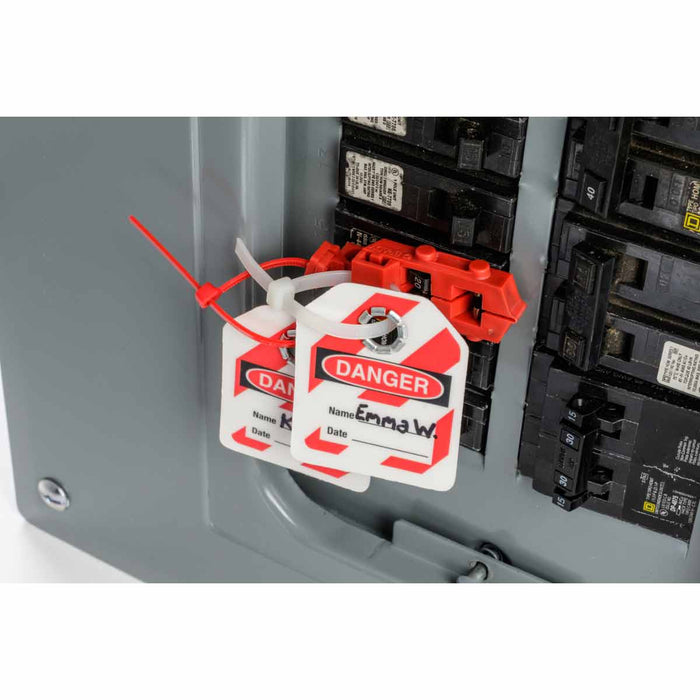

  • Multiple workers can individually secure each TagLock by applying their nylon tie and unique ID tag

Specifications

Key Characteristics

Catalog Page # 78
Product Number148689
UPC754473581985
UOMEach
Trade NameTagLock
Brand NameBrady®
Country of Origin China
HTS Code (Harmonized Tariff Schedule) 3926.90.9985
ECCN (Export Commodity Control Number) EAR99

Dimensions

Dimensions1.006 in H x 2.696 in W x 0.62 in D
Height1.006 in
Width2.696 in
Depth0.62 in
Handle/Toggle Width0.47, 0.63

Material Characteristics

Material Number LOTO-87 (View Technical Data Sheet)
Material Glass-filled Nylon
ColorRed
Service Temperature Range °F-4 °F - 248 °F
Minimum Service Temperature °F-4 °F
Maximum Service Temperature °F248 °F

Product Features

Application Lockout Tagout
Circuit Breaker Lockout TypeSingle-pole
Maximum Number of Padlocks 1
Risk Type Electrical Risk
Voltage120 V

Compatibility

Maximum Shackle Diameter0.281 in

Preprinted Information

LanguageEnglish
Text LanguageEnglish

What's Included

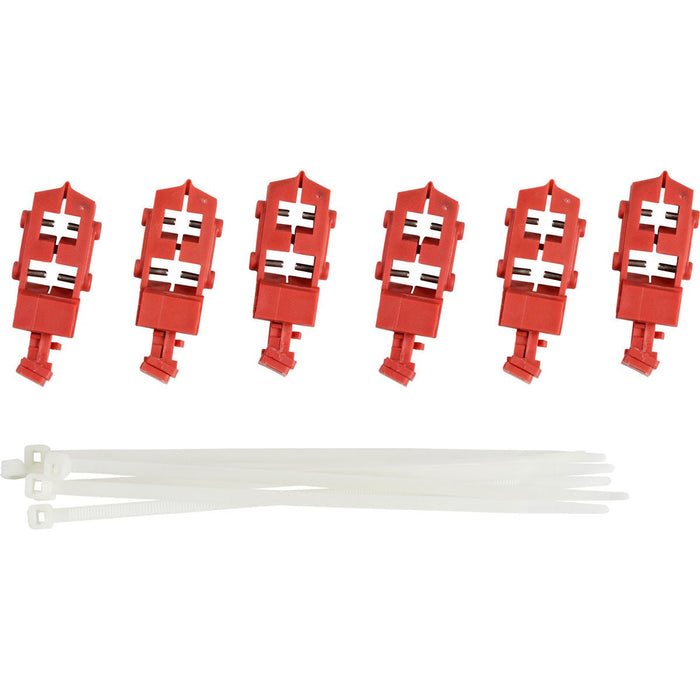

Includes(1) TagLock Lockout for 120V Breakers

Compliance

UNSPSC 39121901
RoHS Compliance StatusNot applicable to this product
