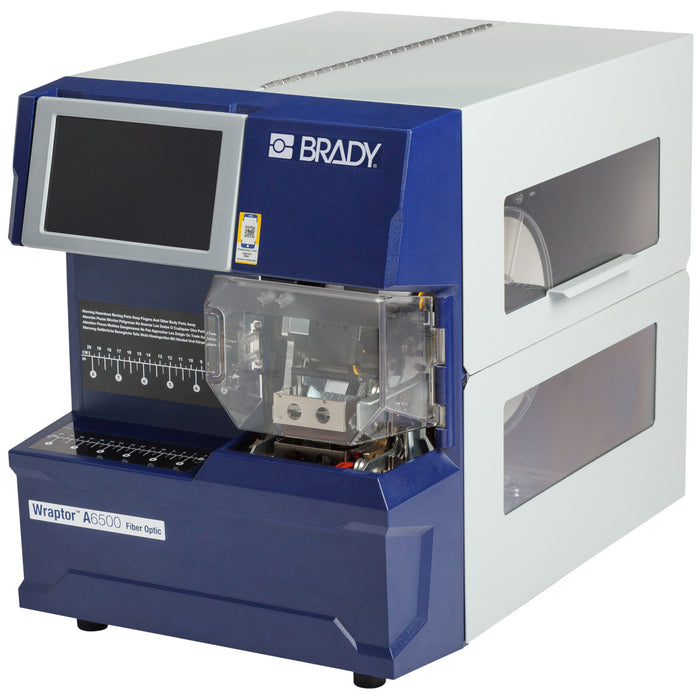

Wraptor A6500 Fiber Optic Wrap Printer Applicator with Product and Wire ID Software Suite

by Brady

Free shipping for orders above $300

Original price $21,449.00 - Original price $21,449.00
Original price
$21,449.00
$21,449.00 - $21,449.00
Current price $21,449.00
The Wraptor™ A6500 Fiber Optic Wrap Printer Applicator is a print and apply machine that turns a series of labor-intensive, inefficient tasks into a modern automated process.

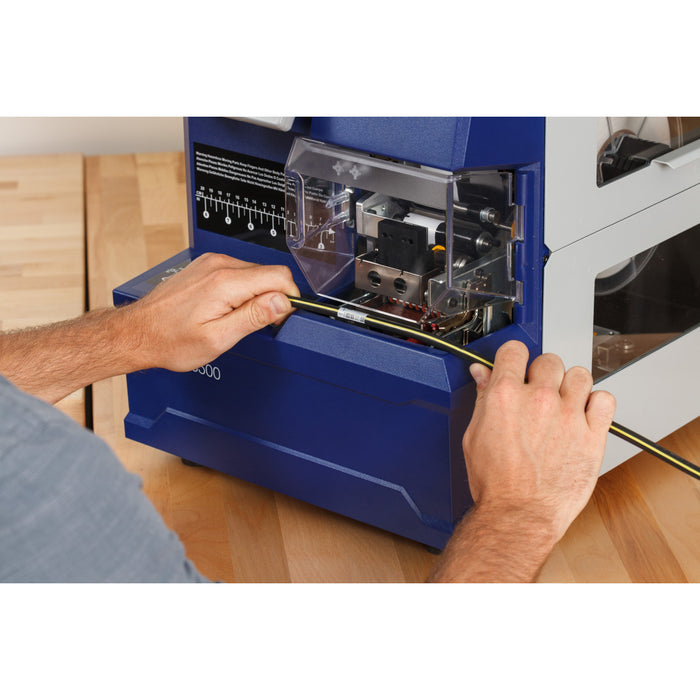

  • Prints and applies labels to wires in less than five seconds
  • Innovative “soft jaws" design does not dent, scratch or damage fiber optic cables
  • Significantly reduces/eliminates signal loss when wrapping fiber optic cables
  • Brady Certified Optical Time Domain Reflectometer (OTDR) Test Report accompanies printer
  • Fiber optic wire diameters: 0.047" to 0.43"
  • Zero calibration or special setup
  • Device Connectivity: PC connected & Stand-alone
  • Maximum Label/Tape Width: 2 in
  • Maximum Labels per Day: 7000
  • Print Resolution: 300 dpi
  • Print Technology: Thermal Transfer
  • Software Package: Product & Wire ID

Product Number: 152226
UPC: 888434559413
UOM: Each

Dimensions

Dimensions: 17.75 in H x 14.5 in W x 22.5 in D
Height: 17.75 in
Width: 14.5 in
Depth: 22.5 in
Weight: 75 lb

Product Features

Application: Data and Telecommunications Labeling, Electrical Labeling, Wire and Cable Labeling

Shipped With Battery: Yes
Battery Weight: 0.007
Connectivity Options: Ethernet, I/O connection, RS232, Serial, USB, USB 2.0
Device Connectivity: PC connected & Stand-alone
Display Type: Color Touch Screen
Memory: 32 GB, expandable through USB
Plug Type: US
Power Supply Voltage: 100 - 240 V @ 50 - 60 Hz
Battery Type: Lithium-manganese Battery
Operating System: Windows® 10, Windows® 7, Windows® 8

Printing Specifications

Barcode Symbologies - 2D: Codablock A, Codablock F, Data Matrix, QR Code
Barcode Symbologies - Linear: Code 128, Code 39, Code 93, EAN/JAN-13, EAN/JAN-8, Interleaved 2 of 5, MSI Plessey, Supports 1D/Linear barcodes, UPC-A, UPC-E
Calibration Required?: No
Color Printing Capability: Single Color
Font Styles: Arial, Arial 65, Courier New, Tahoma, Times New Roman
Application Cycle Time: 5 seconds
Maximum Labels per Day: 7000
Maximum Label/Tape Width: 2 in
Minimum Label Length: 0.75 in
Maximum Print Speed: 3 in/s
Maximum Printed Label Length: 1.63 in
Print Resolution: 300 dpi
Print Technology: Thermal Transfer
Programming Language: Brady custom software solution, Brady Script Emulator for ZPL (Accessory required)

Compatibility

Compatible Media: WRAP-

Label Material Types: Metal-detectable Nylon, Nylon Cloth, Polyimide, Self-laminating Vinyl
Materials Supported: Custom, Die-cut
Maximum Print Width: 2 in
Wire Diameter Range: 0.047 in - 0.43 in
Software Compatibility: Brady Workstation

What's Included

Software Package: Product & Wire ID

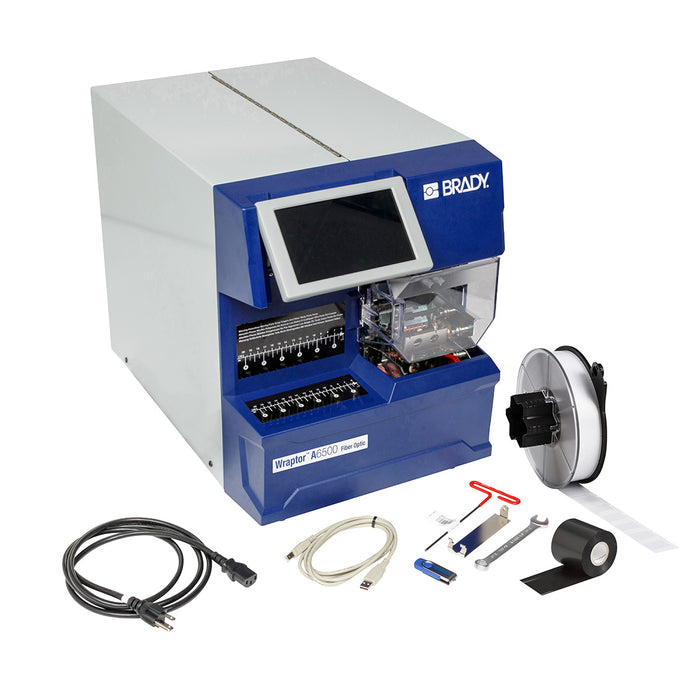

Includes: (1) Brady Workstation Design & Print Pro Insert - Product and Wire ID Suite (Download Code Inside), (1) Printer Applicator (A6500), (1) R4302 pre-installed Ribbon, (1) USB, (1) USB Cable, (1) Wrap-4-417 pre-installed Label Material, (1) 7/16" Wrench, (1) Power Cord

Model: A6500
Warranty: 1 Year
